ORIF - Conventional plating

Pure split partial articular fractures of the lateral plateau are very unusual. Advanced imaging techniques almost always demonstrate some impaction component immediately along the fracture plane. Pure split fractures are associated with good bone quality. Meniscal tears, articular incongruity, malalignment, and knee joint instability are all indications for surgical management. Significant soft-tissue injury is typically not associated with these injury patterns.

In order to illustrate the difficulties that may be encountered, we have included a full discussion under the respective sections.

Main steps in treatment include the following:

1. Adequate preoperative planning (approach(es), number and type of implants, sequence of reduction and fixation, additional equipment)
2. In displaced fractures lateral sub-meniscular arthrotomy and joint distraction allow articular visualization and reduction
3. Anatomical reduction and clamp-assisted compression of the articular surface
4. Definitive stable fixation performed with lag screws, with or without associated lateral periarticular plate

Surgery should be delayed until full recovery of soft tissues (swelling, blisters, abrasions, etc). This usually takes 3–10 days.

Until surgery, length of the leg should be maintained (eg, external fixator, traction, etc).

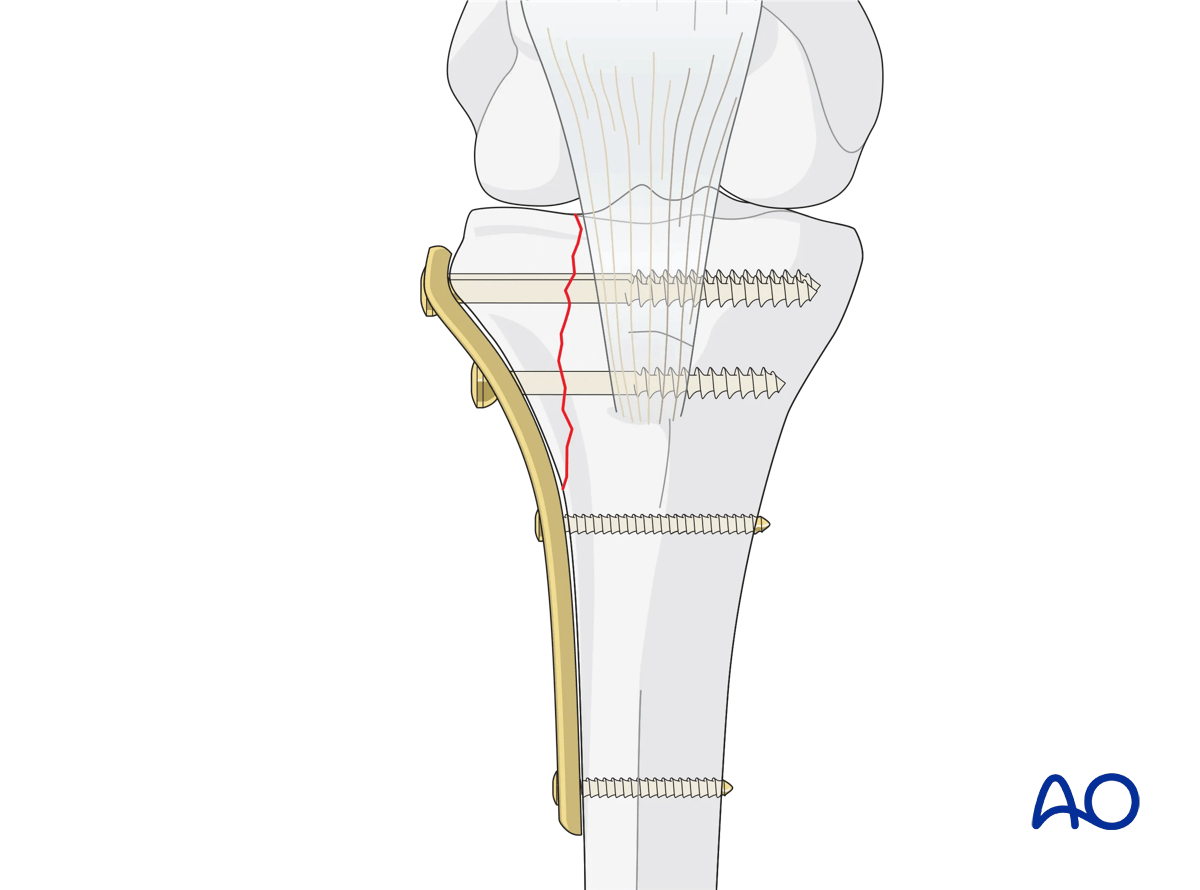

In minimally-displaced split fractures lag screw fixation alone can achieve satisfactory fracture stability. In fractures with significant displacement or anticipated loads, the use of a plate in addition to the lag screws offers much greater resistance to shear forces and more reliably prevents caudal displacement of the lateral epiphyseal fragment.

The following complications should be checked for during surgery:

• Articular malreduction
• Alignment malreduction
• Intraarticular hardware
• Prominent fixation
• Unlike the C type injuries and medial B type injuries vascular and nerve injury and compartment syndrome are very unusual

The patient is placed in the Supine position.

• Supine position

A tourniquet is helpful in most cases. Whether a tourniquet is used depends on the amount of bleeding. Exsanguinate the limb by elevating it.

To allow for intraoperative radiographic control of reduction and fixation, the use of a radiolucent table is mandatory.

An anterolateral approach is used for the vast majority of cases.

• Anterolateral/extended anterolateral approach

Contralateral imaging of the other knee will help determine the final height of the articular surface and frontal and sagittal plane alignment.

The injured knee should be examined under anesthesia and a sense of frontal plane instability to valgus force can be identified.

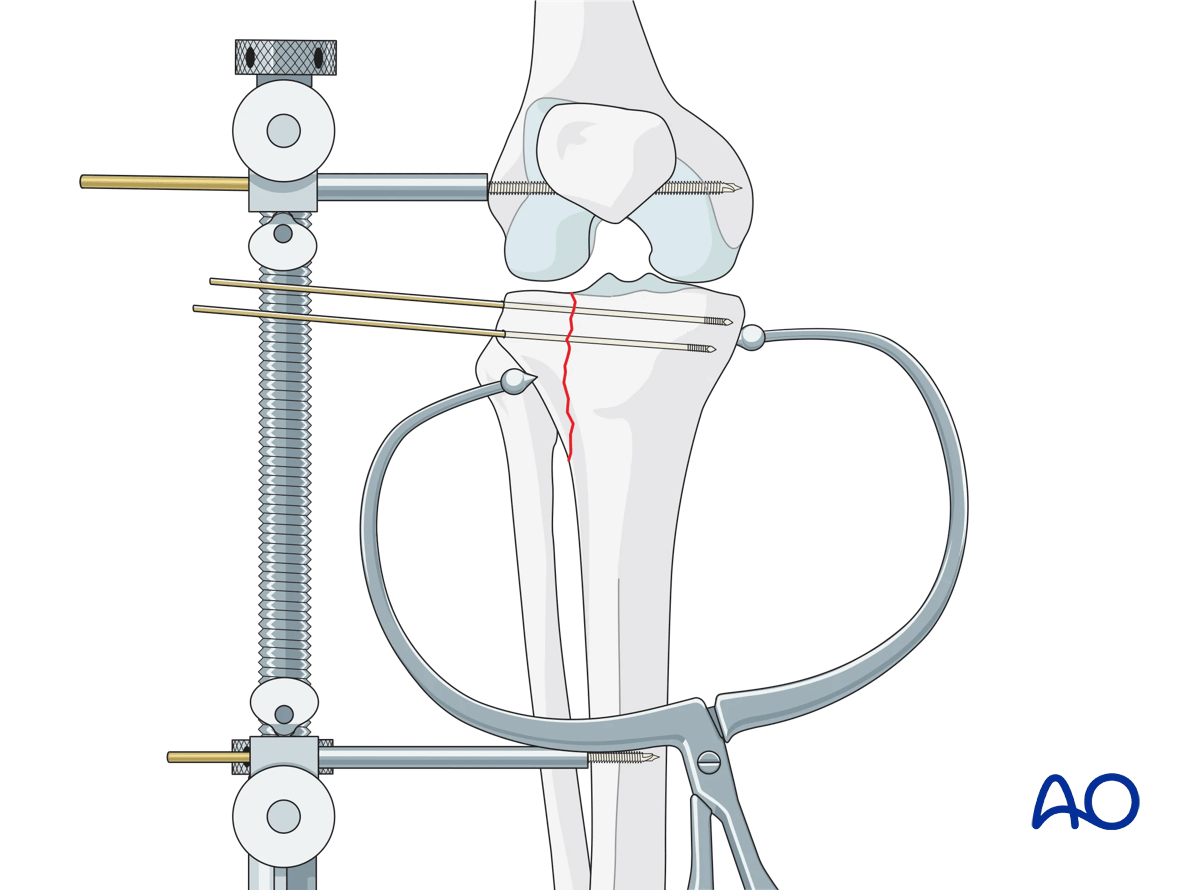

Ligamentotaxis will improve the reduction, but direct fragment visualization and reduction is preferred. Reduction of the lateral articular surface now requires careful joint visualization. A laterally-based femoral distractor is used, and careful distraction is then applied. The lateral articular and cortical surfaces are exposed using the anterolateral approach. Cleansing of the cancellous surface hematoma and clearing periosteum from the cortical fracture margins is performed. A sub-meniscal arthrotomy is performed once the joint has been distracted. At this point the lateral meniscus should be identified and found to be attached to the peripheral capsule. The lateral cortex is reduced using cortical interdigitations as a guide for an accurate reduction. The fracture is now stabilized with K-wires and clamps.

It is not uncommon for the peripheral meniscus to be partially or completely detached from the capsule. In situations with complete detachment, the meniscus may be identified more centrally within the lateral compartment or trapped along the articular fracture line.

Accurate reduction is confirmed radiographically, and with direct visualization. Additional subchondral K-wires can be used to maintain the reduction. At this point, the articular surface should be reduced and the frontal and sagittal plane alignment restored.

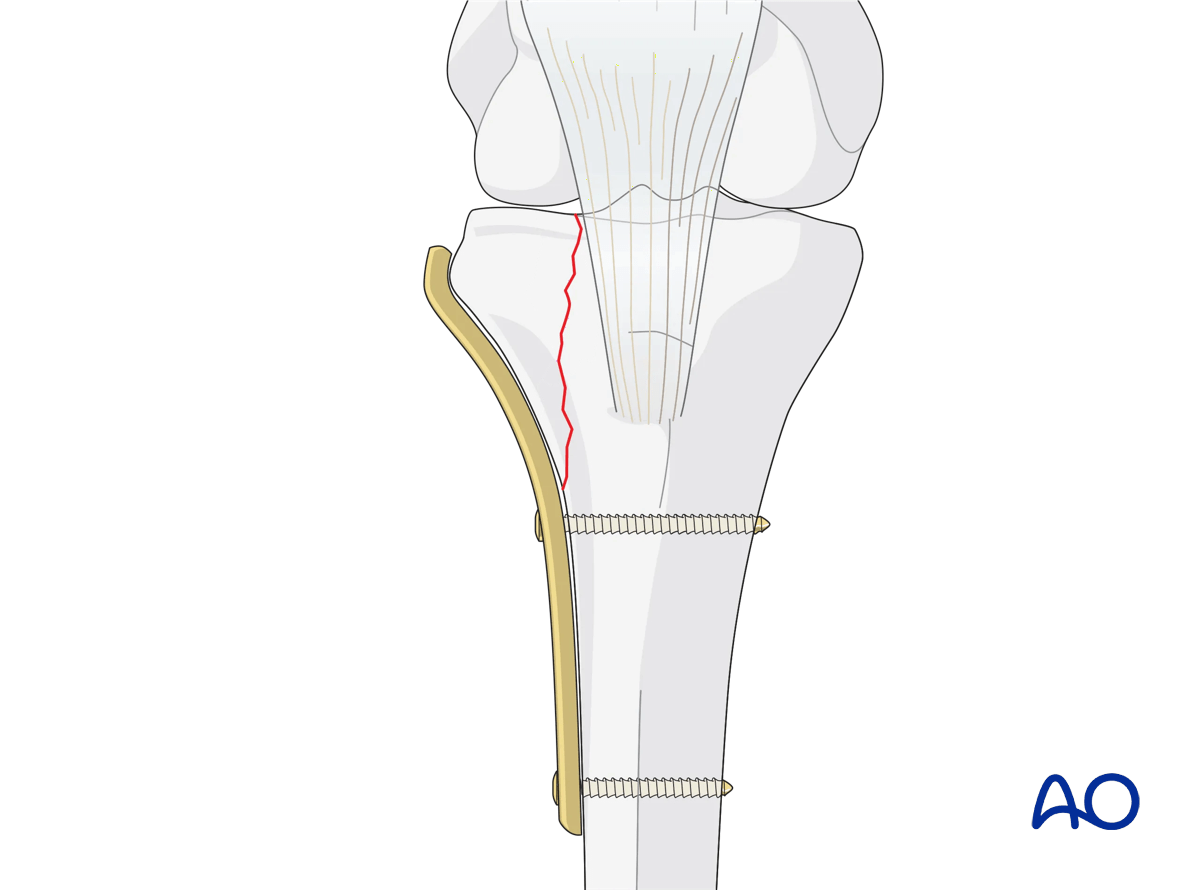

The lateral column is stabilized with traditional buttress plate fixation. Plate length should allow for adequate fixation distal to the exit point of the split fragment. Periarticular plates contoured to the proximal lateral tibial plateau are the preferred implant. Fixation begins in the metadiaphyseal region immediately distal to the exit point of the split component. This traps the split component, resisting its distal displacement. Fixation then proceeds proximally, with the use of lag screws through the plate to compress the split fragment to the remaining proximal tibia. Conventional screw-plate devices will compress the plate to the lateral cortex and create interfragmentary compression.

Once osteosynthesis is completed, make a final check with the image intensifier. If all is well, remove the femoral distractor. The knee should then be placed through a full range of motion to ensure fracture stability, and frontal-plane stability in full knee extension can be reexamined. At this point the knee should demonstrate improved stability to valgus force.

In situations with meniscal disruption from the capsule the meniscus can be repaired back to the capsule using absorbable mattress sutures. The submeniscal arthrotomy is then closed, ideally with a watertight closure. In situations where the capsule is deficient from the lateral proximal tibia the capsulotomy can be repaired to the proximal portion of the lateral plate.

The ilio-tibial band is then closed over the top of the lateral tibia plateau plate. Distal to Gerdy’s tubercle the anterior compartment fascia can be closed if there is no concern for significant postoperative swelling. In situations where there is significant concern, the surgeon has two options:

1. Closure of the anterior compartment fascia with a subsequent anterior compartment fasciotomy performed lateral to the fasciotomy for surgical exposure.
2. Leaving the anterior compartment fascia open. This option has a potential risk of leaving only skin and subcutaneous tissue closed over the internal fixation.

Dermal suture is used sparingly to reapproximate the skin. The skin is then closed with interrupted vertical mattress nylon suture or Allgower-Donatti suture. If not, the fascia may be closed.

Close monitoring of the tibial compartments should be carried out, especially during the first 48 hours after injury and again after surgery to rule out compartment syndrome. More information is provided here:

• Compartment syndrome

The neurovascular status of the extremity must be carefully monitored. Impaired blood supply or developing neurological loss must be investigated as an emergency and dealt with expediently.

Oral or subcutaneous administration of DVT prophylaxis for six weeks should be strongly considered.

Optimal stability should be achieved at the time of surgery, in order to allow early range of motion exercises. Unless there are other injuries or complications, mobilization may be performed on post OP day 1. If available, continuous passive motion (CPM) splints can be very helpful in the early phase of rehabilitation. Static quadriceps exercises with passive range of motion of the knee should be encouraged. Afterwards special emphasis should be given to active knee and ankle movement.

The goal is to achieve as full range of motion as possible within the first 4–6 weeks.

Weight-of-leg weight bearing is initiated depending on patient comfort. Depending on the severity of the articular displacement, weight bearing can begin as early as 6 weeks postoperatively. In situations where articular displacement was significant weight bearing should be delayed for 10–12 weeks.

Wound healing should be assessed within the first two weeks. Subsequently, a 6- and 12-week follow-up with radiographic assessment is usually performed. If a delayed union is recognized, further surgical care may be necessary and should be carried out as soon as possible. Residual knee instability may require delayed reconstruction.

Implant removal is not mandatory and should be discussed with the patient.
