Compression plating

In this procedure, compression of a transverse fracture of the proximal phalangeal base with a lateral anatomical plate is shown.

The plate may be applied laterally or dorsally. The lateral application is preferred as it avoids disturbance of the extensor mechanism insertion.

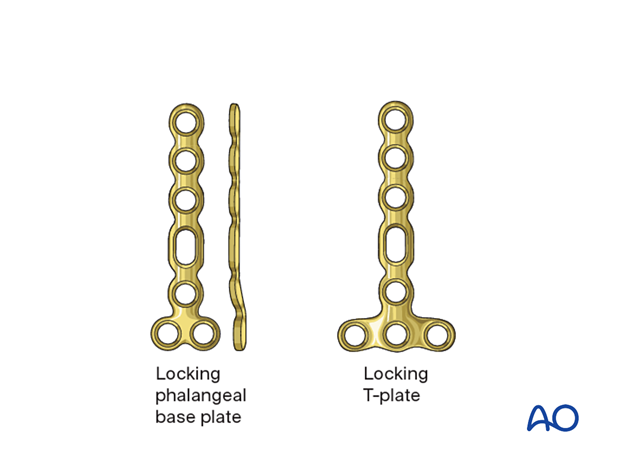

Several plate types (low profile) are available for treatment of this fracture:

• T-plate (adaption plate), dorsal
• Phalangeal base plate, lateral

Select a plate according to fragment size, fracture geometry, and surgeon’s preference.

The plates are available as anatomical plates. The rounded plate edges avoid soft-tissue irritation and adhesion.

If an anatomical plate is not available, a conventional minicondylar plate may be used.

Place the patient supine with the arm on a radiolucent hand table.

For this procedure the following approaches may be used:

• Midaxial approach to the middle phalanx
• Dorsal approach to the middle phalanx

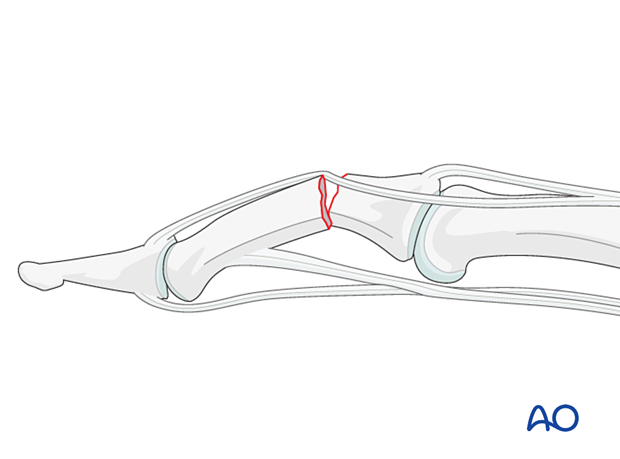

In many cases, the fracture is not significantly displaced.

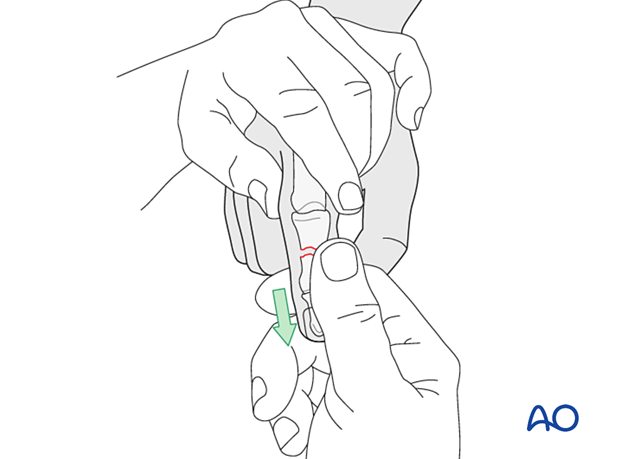

Reduction can be achieved by traction and flexion of the proximal interphalangeal (PIP) joint exerted by the surgeon.

Confirm reduction with an image intensifier.

If the fracture appears stable after reduction, nonoperative treatment can be considered. Confirming reduction with an image intensifier is then essential.

Sometimes indirect reduction may be prevented by interposition of the lateral band.

Direct reduction is necessary when the fracture cannot be reduced by traction and flexion or is unstable because of surrounding soft-tissue lesions.

When indirect reduction is not possible, this is usually due to interposing parts of the extensor apparatus.

Use two pointed-reduction forceps for direct reduction.

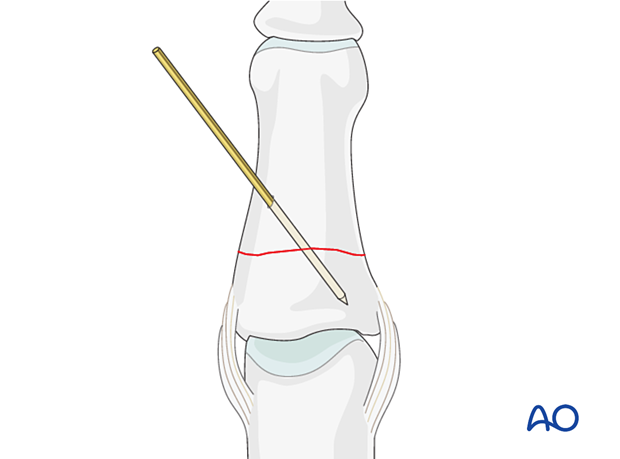

Insert a K-wire for provisional fixation.

At this stage, it is advisable to check the alignment and rotational correction by moving the finger through a range of motion.

Rotational alignment can only be judged with the fingers in a degree of flexion, and never in full extension. Malrotation may manifest itself by overlap of the flexed finger over its neighbor. Subtle rotational malalignments can often be judged by tilting of the leading edge of the fingernail when the fingers are viewed end-on.

If the patient is conscious and the regional anesthesia still allows active movement, the patient can be asked to extend and flex the finger.

Any malrotation is corrected by direct manipulation and later fixed.

Under general anesthesia, the tenodesis effect is used, with the surgeon fully flexing the wrist to produce extension of the fingers and fully extending the wrist to cause flexion of the fingers.

Alternatively, the surgeon can exert pressure against the muscle bellies of the proximal forearm to cause passive flexion of the fingers.

The fixation of a transverse fracture with a lateral plate follows the principles of compression plating of transverse fractures.

Adapt the plate length to fit the length of the middle phalanx. Avoid sharp edges, which may be injurious to the tendons. At least two screws need to be inserted on either side of the fracture zone.

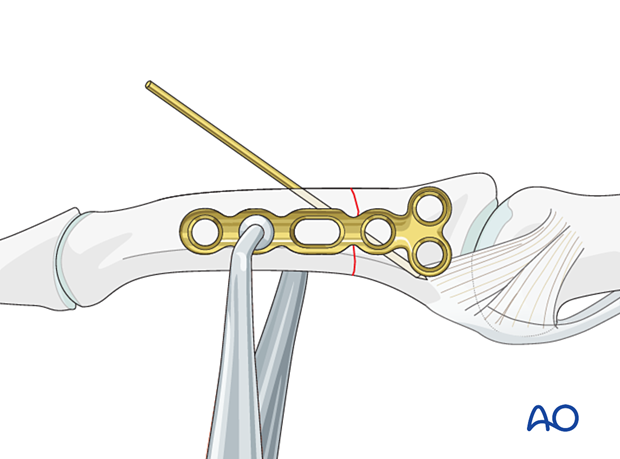

Place the plate slightly dorsal to the midaxial line of the bone, allowing at least two screws in the proximal fragment.

Keep the plate in place with the atraumatic forceps.

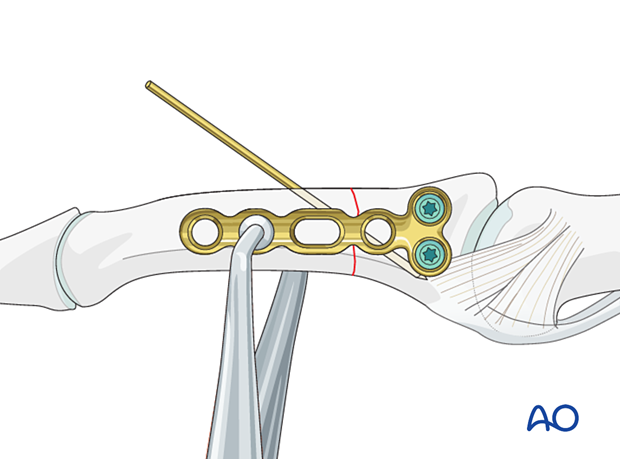

Insert at least two locking head screws in the articular block.

• Locking head screw insertion

Before insertion of the second locking head screw, confirm the alignment of the plate with the bone axis.

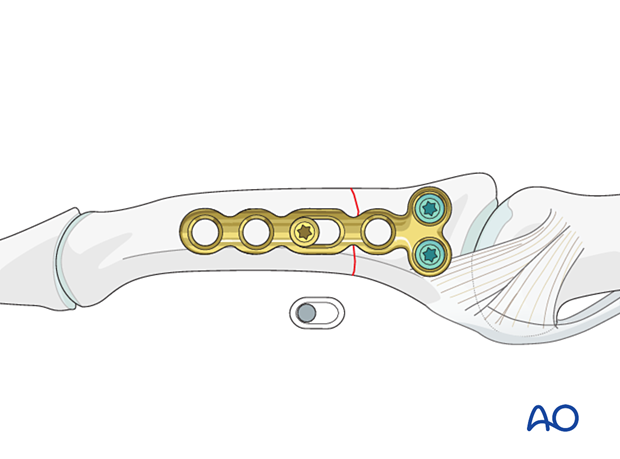

Insert the next screw in compression mode in the oblong hole.

• Screw insertion in compression mode

Check the plate position with an image intensifier and adjust it if necessary.

Compression may also be achieved extrinsically with reduction forceps and then held with a locking screw.

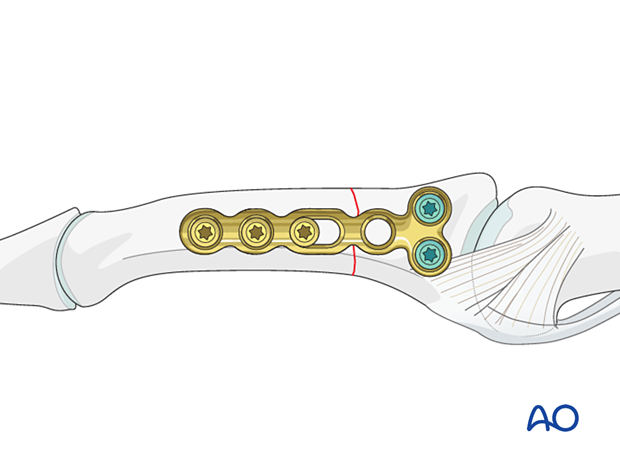

Insert further screws in the shaft and proximal end. In the distal fragment, only cortical screws are needed.

Cover the plate with periosteum to avoid adhesion between the tendon and the implant leading to limited finger movement.

Confirm fracture reduction and stability and implant position with an image intensifier.

The aftercare can be divided into four phases of healing:

• Inflammatory phase (week 1–3)
• Early repair phase (week 4–6)
• Late repair and early tissue remodeling phase (week 7–12)
• Remodeling and reintegration phase (week 13 onwards)

Full details on each phase can be found here.

If there is swelling, the hand is supported with a dorsal splint for a week. This should allow for movement of the unaffected fingers and help with pain and edema control. The arm should be actively elevated to help reduce the swelling.

The hand should be immobilized in an intrinsic plus (Edinburgh) position:

• Neutral wrist position or up to 15° extension
• MCP joint in 90° flexion
• PIP joint in extension

The MCP joint is splinted in flexion to maintain its collateral ligaments at maximal length to avoid contractures.

The PIP joint is splinted in extension to maintain the length of the volar plate.

After swelling has subsided, the finger is protected with buddy strapping to neutralize lateral forces on the finger until full fracture consolidation.

To prevent joint stiffness, the patient should be instructed to begin active motion (flexion and extension) of all nonimmobilized joints immediately after surgery.

The patient is reviewed frequently to ensure progression of hand mobilization.

In the middle phalanx, the fracture line can be visible in the x-ray for up to 6 months. Clinical evaluation (level of pain) is the most important indicator of fracture healing and consolidation.

The implants may need to be removed in cases of soft-tissue irritation.

In case of joint stiffness or tendon adhesion restricting finger movement, arthrolysis or tenolysis may become necessary. In these circumstances, the implants can be removed at the same time.
