Open reduction internal fixation

1. Principles

General considerations

Open reduction internal fixation (ORIF) is an option. As with most treatment options, the surgeon should plan on placing arch bars and using MMF. A full arch bar is placed and ligated to the teeth. Depending on the nature of the fracture, the surgeon may or may not choose to keep the patient in MMF postoperatively.

The first option is to perform an ORIF of the palatal fracture using one or more plates on the palate through an existing laceration.

Alternatively, locking screw/plate systems allow for transmucosal application of the internal fixation hardware. A second plate may be placed on the facial aspect of the alveolar segment, with care being taken not to injure the tooth roots.

A second option is to reduce the fracture and use a palatal splint.

A third option combines the first two options.

Panfacial trauma

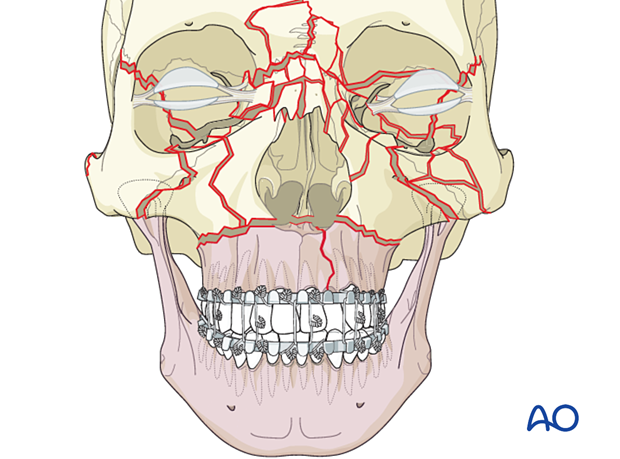

In a panfacial trauma, the most typical situation where we see a palatal fracture, reestablishing the maxillomandibular unit should be a high priority. In such cases, a combination of ORIF and the use of palatal splints is common.

Note: Reduction and fixation of the palatal fracture should be the first step in the procedure. Reestablishing the occlusion and achieving maxillomandibular fixation is necessary to continue with a reduction of the other fractures.
-1905-254000

Teaching video

AO Teaching video on fixation of a complex midface fracture

2. Approach

Standard approaches to the maxilla are used. However, if present, lacerations can be used for direct access to the fracture site.

92 P030 PS ORIF

3. Reduction

Manual reduction

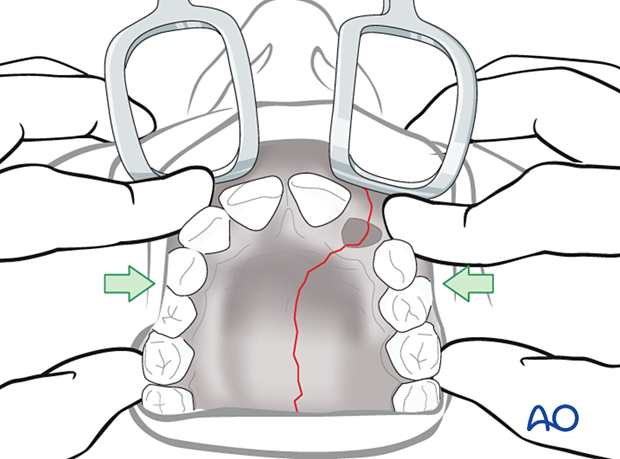

Perform the reduction by applying pressure laterally on the two maxillary segments to reduce the splayed fracture.

Palatoalveolar simple – open reduction internal fixation: reduction

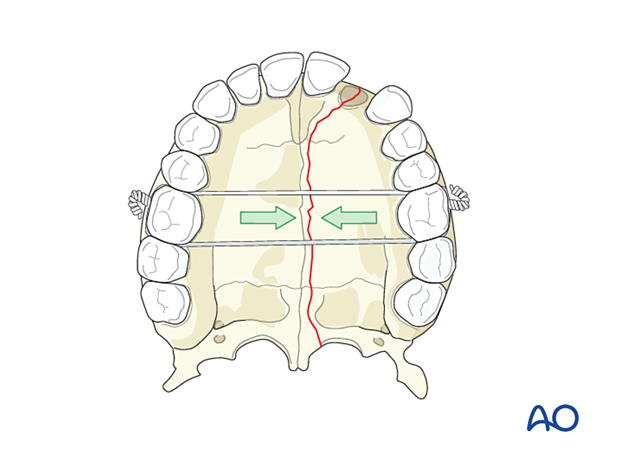

The reduction might be facilitated by placing a transpalatal wire to span the molars and compress the arch to eliminate the splaying and aid in the reduction of the fracture.

Palatoalveolar simple – open reduction internal fixation: reduction

Apply MMF

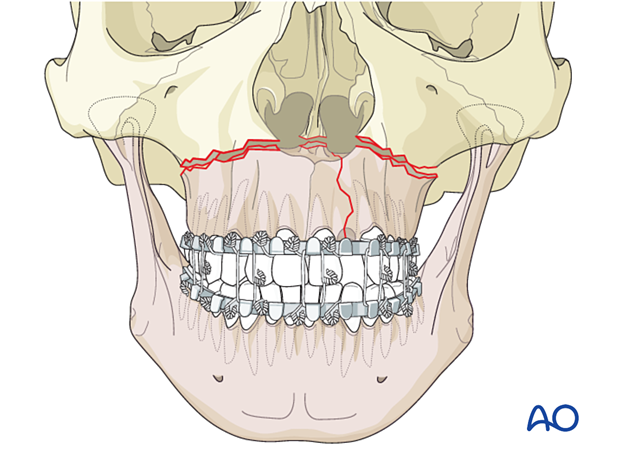

Erich arch bars are applied, and the occlusion is checked. The occlusion is then secured by maxillomandibular fixation (MMF). Click here for a detailed description of the MMF technique.

Palatoalveolar simple – open reduction internal fixation: apply MMF

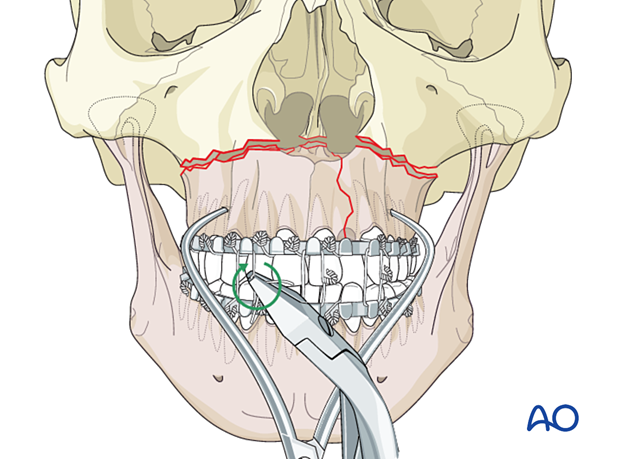

Pearl: Using forceps to maintain the reduction may be beneficial while securing the MMF.
Palatoalveolar simple – open reduction internal fixation: apply MMF

4. Fixation

Plate application

Fixation should be considered in two planes. The first plane is the palate, which should be fixed with internal or transmucosal plates. The second plane is the facial aspect of the alveolar segment, where a plate is placed, avoiding injury to the tooth roots.

It may be desirable to plate the palate first while a perfect reduction of the previously splayed palate is visualized.

More information on CMF implants can be found here.

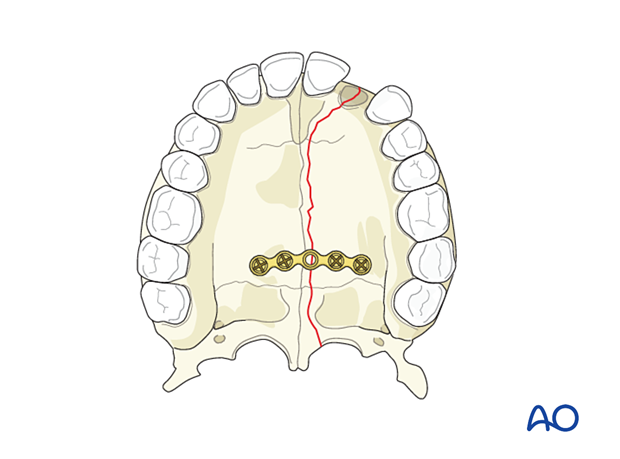

This illustration shows a straight plate placed on the bone or the mucosa with transmucosal screws.

Palatoalveolar simple – open reduction internal fixation: fixation

When possible, the use of an X plate provides good separate anterior and posterior fixation of the palatal fracture, as illustrated.

Palatoalveolar simple – open reduction internal fixation: fixation

If the surgeon decides to add a palatal splint to stabilize the palatal unit further, the palatal laceration (if present) needs to be repaired before applying the splint.

Note: An acrylic splint or a 3D printed splint can help stabilize the dental arch and protect the palatal tissues.

Placing the second plate

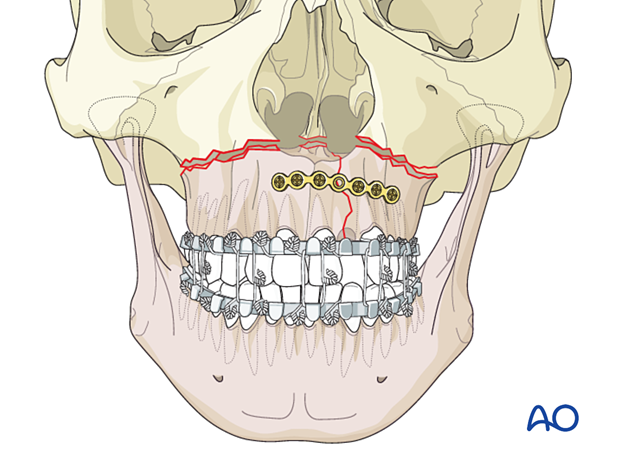

Consider adding additional plates to fix the Le Fort I fracture. Care must be taken to avoid tooth roots when placing the second plate on the facial aspect of the alveolar segment.

Palatoalveolar simple – open reduction internal fixation: fixation

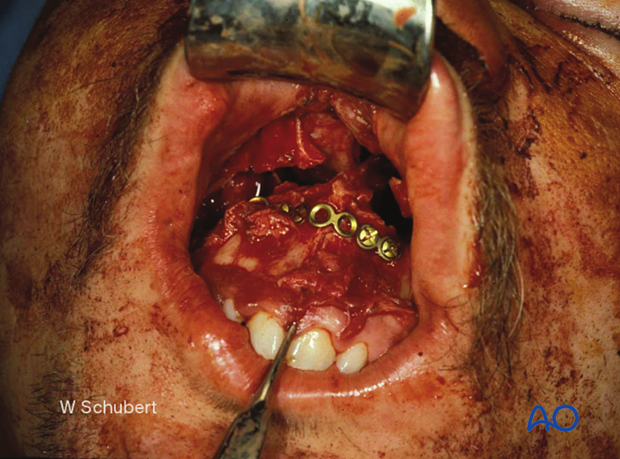

This intraoperative photograph demonstrates the placement of the second plate on the facial aspect of the alveolar segment.

Palatoalveolar simple – open reduction internal fixation: fixation

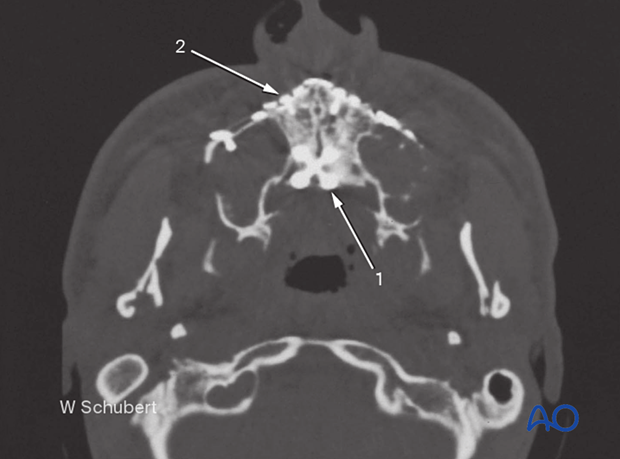

In this axial CT scan, the surgeon has chosen an X-plate to fix the palatal fracture. Further stabilization has been accomplished with the use of the anterior alveolar plate.

Arrow 1 marks the position of the X-plate, and arrow 2 marks the position of the anterior alveolar plate.

Palatoalveolar simple – open reduction internal fixation: fixation

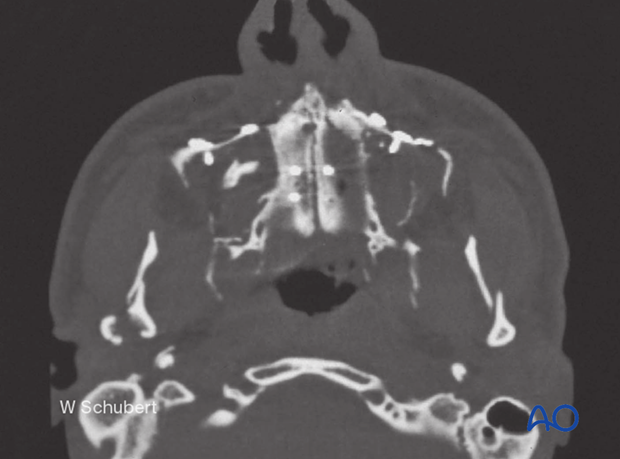

This is another axial view of the same patient that better demonstrates the palatal reduction.

Palatoalveolar simple – open reduction internal fixation: fixation

Splint application

In some cases, the surgeon may choose to add a palatal splint to support soft-tissue healing in the palate.

Different splint fabrication options exist:

  • From dental impressions
  • From dental model scans taken with an extraoral (tabletop) scanner
  • A complete digital workflow

Further details on palatal splint fabrication are provided in the description of closed treatment of simple palatoalveolar fractures.

Palatoalveolar simple – open reduction internal fixation: fixation

The palatal splint is then wired to the patient's dentition using circumdental wiring, with or without using arch bars. The patient is commonly kept in MMF until adequate healing of the palatal fracture.

Palatoalveolar simple – open reduction internal fixation: fixation

In this photograph, the palatal splint has been inserted and secured to the dentition using circumdental wires and an arch bar.

Note: The focus must be on reestablishing occlusion and the transverse bony dimension.

Existing dental models from previous treatments may be helpful in reestablishing the pre-injury anatomy.

Palatoalveolar simple – open reduction internal fixation: fixation

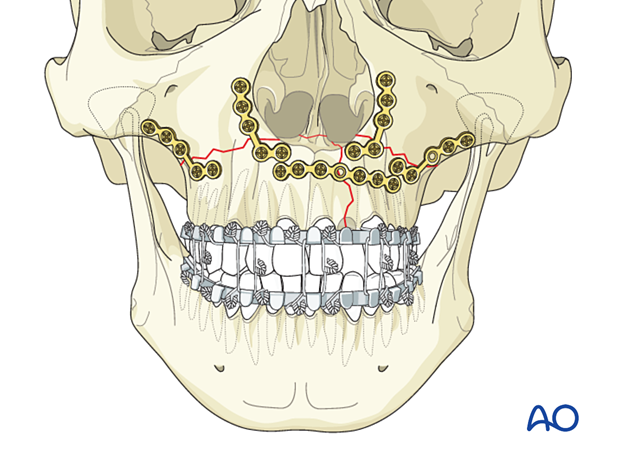

Addressing the Le Fort I fracture

The palatal unit should be repaired before addressing a Le Fort I fracture. Please refer to the section on Le Fort fractures for further details.

Palatoalveolar simple – open reduction internal fixation: fixation

5. Aftercare

Postoperative positioning

Keeping the patient’s head in an upright position both preoperatively and postoperatively may significantly reduce periorbital edema and pain.

CMF Midface - aftercare

Medication

The following medications may be used:

  • Analgesia as necessary (no aspirin or nonsteroidal anti-inflammatory drugs (NSAIDs) for seven days)
  • In case of an open wound or exposed bone antibiotic coverage is indicated
  • Regular perioral and oral wound care should include disinfectant mouth rinse, lip care, etc.

Postoperative imaging

Postoperative imaging should be performed within the first days after surgery. 3D imaging (CT, cone beam) is recommended to assess complex fracture reductions.

In fractures involving the alveolar area, orthopantomograms (OPG) are helpful.

Diet

Diet depends on the fracture pattern.

A soft (non-chew) diet can be taken as tolerated until there has been adequate healing (usually 4–6 weeks).

Patients in MMF will remain on a liquid diet until the MMF is released.

Clinical follow-up

Clinical follow-up depends on the complexity of the surgery and whether the patient has any postoperative problems.

Issues to consider with palatal fractures and alveolar ridge fractures include:

  • Problems with dentition and dental sensation
  • Problems with occlusion
  • Problems with the temporomandibular joint (TMJ), such as reduced range of motion and pain

MMF

The need for and duration of MMF are very much dependent on:

  • Fracture morphology
  • Type and stability of fixation (including palatal splints)
  • Dentition
  • Coexistence of mandibular fractures
  • Premorbid occlusion

Oral hygiene

Patients with arch bars, intraoral incisions, or wounds must be instructed about appropriate oral hygiene procedures. The presence of arch bars or elastics makes oral hygiene more complicated. A soft toothbrush (dipped in warm water to make it softer) should be used to clean the teeth and arch bars. Elastics are removed during oral hygiene procedures. Disinfectant mouth rinses (Chlorhexidine) should be prescribed and used at least three times a day to help sanitize the mouth.

For larger debris, a 1:1 mixture of hydrogen peroxide/Chlorhexidine can be used. The effervescent action of the hydrogen peroxide helps remove debris. A jet irrigator, (eg, Waterpik) is a handy tool to help remove debris from the wires. If used, care should be taken not to directly point the jet stream over intraoral incisions, which may lead to wound dehiscence.
