Posterior short segment fixation with intermediate screws

1. Introduction

Preliminary remarks

A3 injuries are compression injuries of the vertebral body involving only one endplate and associated with a fracture of the posterior wall of the vertebral body. Due to axial compression forces, vertical fracture of the lamina is usually present and does not indicate a tension band failure.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Decompression

In cases where neurological deficit is observed and compression of the spinal canal is assumed, decompression has to be performed. It should be understood that this is a step that can also result in deterioration of neurology unless very meticulously performed.
Decompression can be performed anteriorly or posteriorly. Posteriorly decompression can be indirect or direct.
Indirect decompression may be tried before performing direct decompression.
Please refer to Decompression techniques for a detailed discussion of indications for the posterior decompression techniques. (Posterior decompression)

Repair of dural laceration

More details on repair of dural laceration can be found here.

2. Patient preparation and approach

The posterior open approach to the midline is used together with the appropriate patient preparation.

posterior short segment fixation with pedicle screws

3. Closed reduction

Primary reduction is performed by positioning of the patient onto a frame to create lordosis.

Thoracic and lumbar fractures: Posterior short segment fixation with pedicle screws

4. Reduction with intermediate pedicle screws

Preliminary remarks

The addition of intermediate screws provides more biomechanical stability to the construct. In patients with significant vertebral body comminution and intact pedicles, this technique is preferred.

Due to the fact that bilateral instrumentation is necessary in all cases, all steps described below are repeated on the opposite side, unless described otherwise.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Pedicle screw insertion

Pedicle screws are inserted into the vertebrae cephalad and caudal to the fracture level on both sides. Mono- or polyaxial screws can be used. (Pedicle screw insertion)

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Intermediate screw insertion

Under fluoroscopic guidance, screws are also inserted into the pedicles of the fractured vertebrae ("intermediate" screws). Intermediate screws are inserted in both the pedicles of the fractured vertebra, however if a pedicle (as assessed on the CT scan) is fractured, no screw is inserted into that pedicle. If both the pedicles are injured, then this technique cannot be used.

The intermediate screws are left slightly proud compared to the screws inserted above and below, in order to be able to reduce the fracture later on.
The length of the intermediate screws is generally kept short so that it just enters the vertebral body after crossing the pedicle.

This allows an anterior reconstruction on a later date if required, without disturbing the posterior construct.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Rod contouring

The contouring of the rod depends on the site of the fracture. A rod contoured in mild kyphosis is chosen for fractures from T1-T10. A straight or a slightly lordotic rod is chosen for fractures from T11-L1, and a rod contoured to lordosis is chosen for lumbar fractures.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Rod insertion

The rod is introduced to the screw heads from distal to proximal and the distal screw head is tightened first. The proximal and intermediate screw heads are kept loose.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

The rod is also inserted into the proximal screw heads without tightening.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Decompression

If decompression is needed, an indirect reduction may be done at this stage. If indirect decompression proves to be insufficient, a direct decompreesion, e.g., posterior or transpedicular decompressions are undertaken. Refer to the Posterior Decompression techniques for detailed instructions. ( Posterior decompression)

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

Distraction

With the help of a rod holder and a distractor, the proximal screws are distracted along the rod. This is done on both sides simultaneously.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

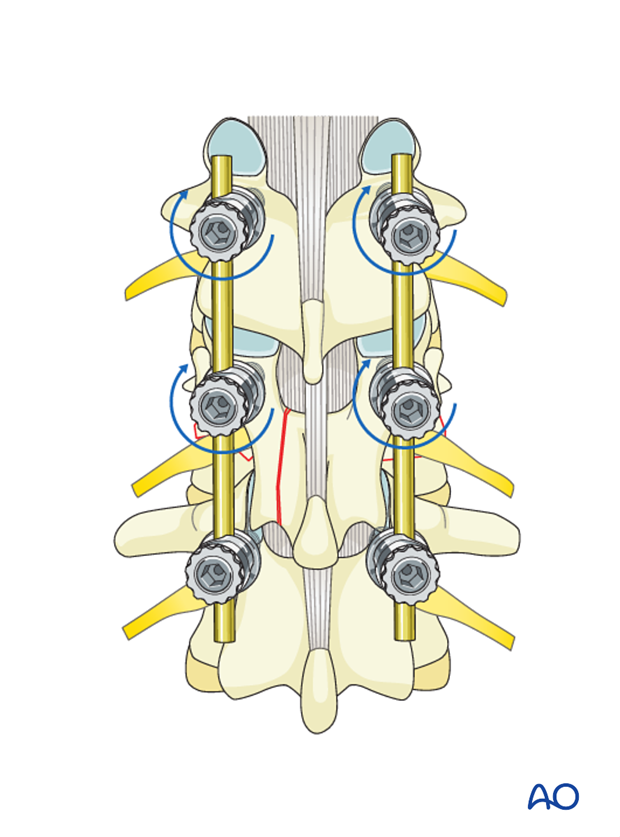

The locking heads of the proximal and intermediate screws are tightened to secure the distraction achieved.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

The final construct is shown from a lateral view

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

5. Fusion

Decision

Although fusion was routinely performed for all spinal fractures, its indications are now being restricted to fractures that are highly unstable.

Nonfusion fixations can be performed for A3, A4, and B1 type injuries.
Fusion is routinely performed for A2, B2, B3, and all C injuries as they are unstable injuries with extensive soft tissue and ligamentous disruption.

Nonfusion

For nonfusion surgeries, the facet joint capsule is preserved during the entire procedure.

The screws can be removed after 9 months once the fracture has healed.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

6. Intraoperative imaging

Prior to wound closure, intraoperative imaging is performed to check the adequacy of reduction, position, and length of screws and the overall coronal and sagittal spinal alignment.

Thoracic and lumbar fractures: Posterior short segment fixation with intermediate screws (PSSF-IS)

7. Aftercare for posterior procedures

Patients are made to sit up in the bed on the first day after surgery. Bracing is optional. Patients with intact neurological status are made to stand and walk on the second day after surgery. Patients can be discharged when medically stable or sent to a rehabilitation center if further care is necessary. This depends on the comfort levels and presence of other associated injuries.

Thoracic and lumbar fractures: Aftercare for anterior procedures

Patients are generally followed with periodical x-rays at 6 weeks, 3 months, 6 months, and 1 year. Normally, 5-10 degrees of loss of kyphosis can be observed within the first 6 months, which does not affect the functional outcomes. For nonfusion surgeries, the implants can be removed once fusion is confirmed.

Thoracic and lumbar fractures: Aftercare for posterior procedures
