Reduction and stabilization of the femoral condyles

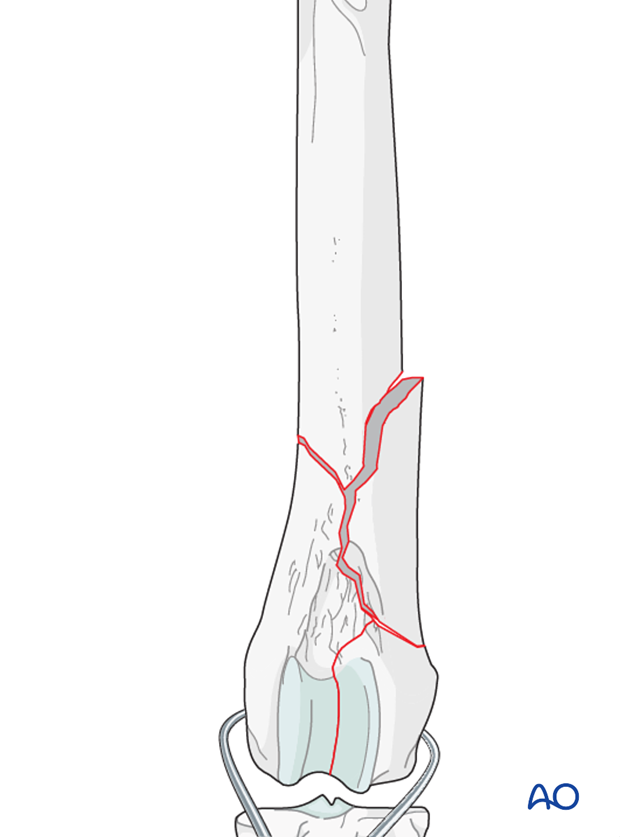

The articular fracture of the condyles is reduced with pointed reduction forceps. Anatomic reduction is essential in all cases.
Note: Bone in juvenile patients is very soft. Care must be taken not to damage it during reduction.

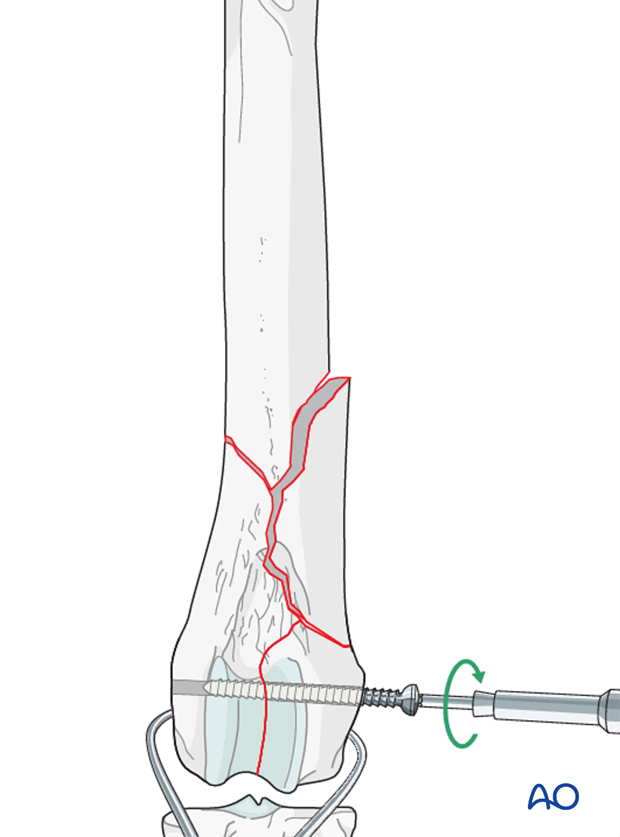

Stabilization is achieved with inserting a lag screw across the condyles perpendicular to the fracture plane. Frequently the screw is placed in lateral to medial direction, starting at the level of the epicondyle.
Note: Care should be taken not to penetrate condylar fossa to avoid damage to the cruciate ligaments with the screw.
A detailed description of "Lag screw fixation" can be found here.

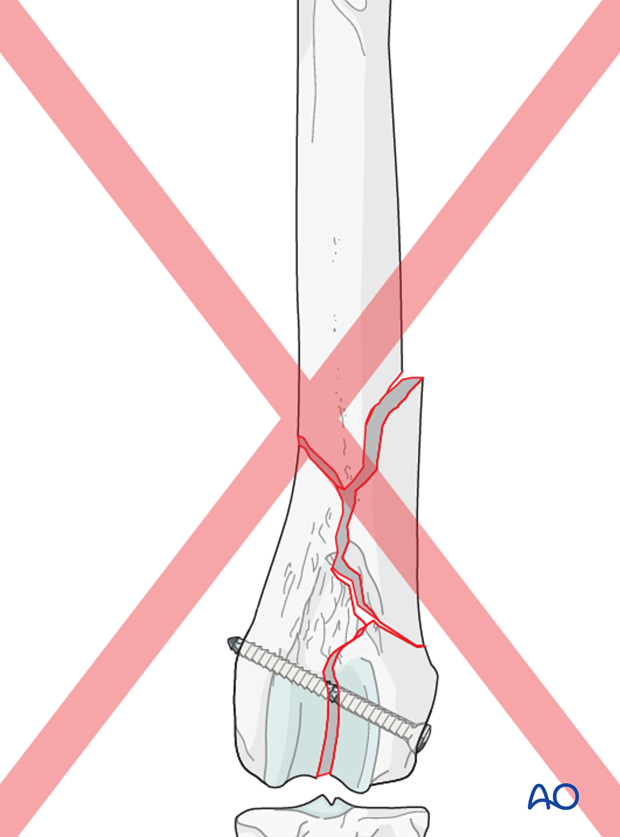

Note: If the screw is not placed perpendicular to the fracture plane, this will result in loss of anatomic reduction of the articular surface.
Reduction and stabilization of the femoral metaphysis
Bone holding forceps are applied to the proximal and distal major fragments for distraction.

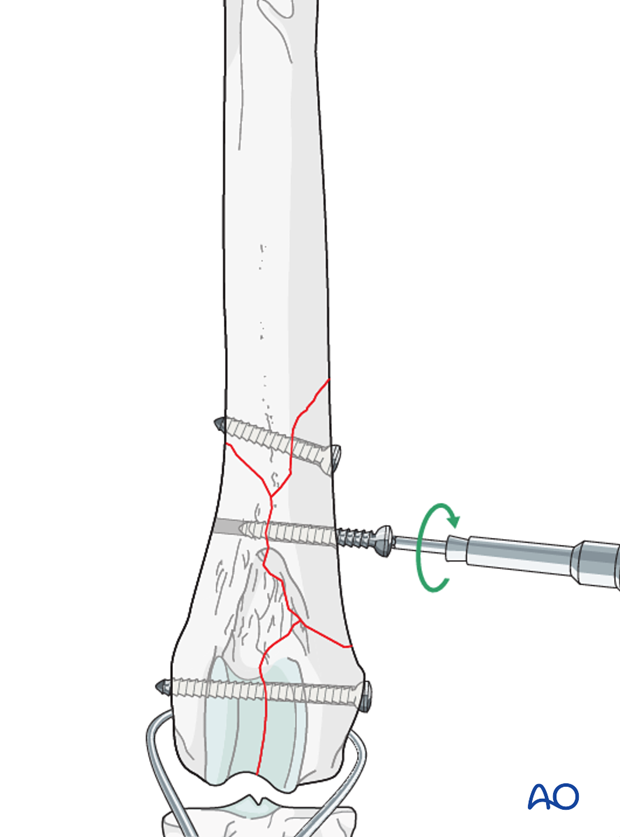

Lag screws fixation

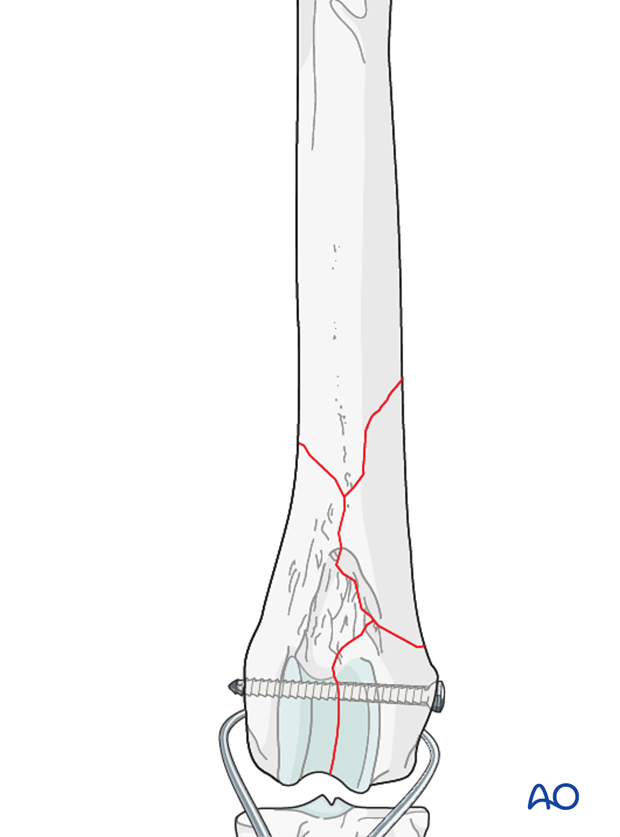

Anatomic reduction and interfragmentary compression is achieved with additional independent lag screws between the comminuted fragments and main bone segments.
Numerous plate types can be used such as the reconstruction plate. Other specially designed plates for the distal femur are available.
Ideally the plate should be long enough to place at least three screws in either side of the fracture. In the distal femur the use of only two screws in the distal fragment is acceptable.

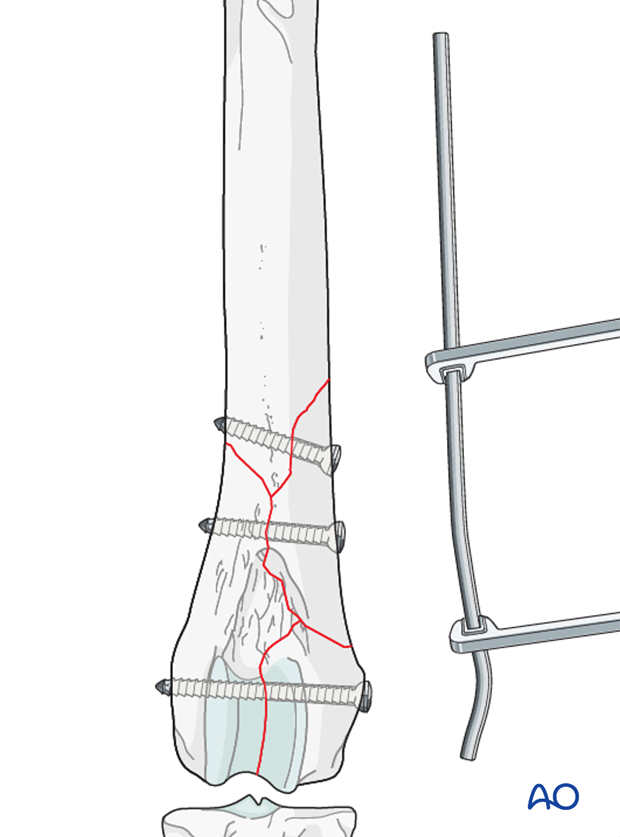

The plate is contoured to the lateral aspect of the distal femur.
Note: The plate should be contoured so the distal holes are positioned away from the lag screw.
Note: Care should be taken to avoid placement of the plate high on the lateral trochlear ridge, where it can impinge on patellar tracking and result in pain and discomfort.
The plate position and contouring to the bone is checked thoroughly and adjusted, if required.
A detailed description of "Plate preparation" can be found here.

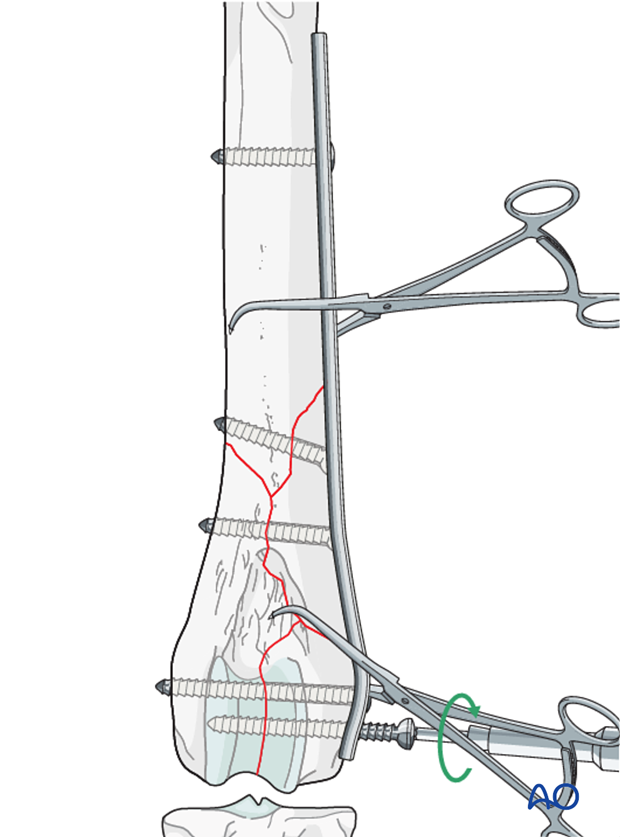

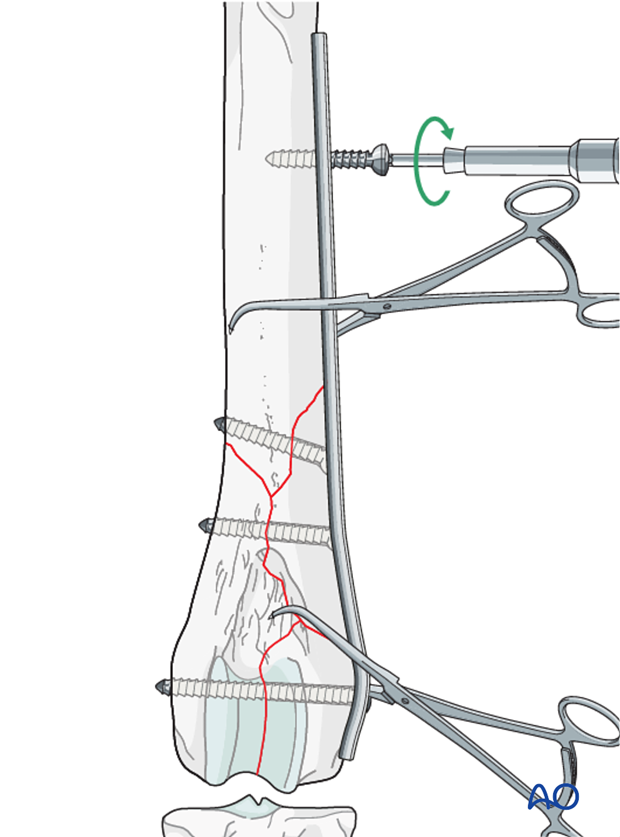

A screw is inserted in the proximal fragment in the neutral position.
A screw is inserted in the distal fragment in the neutral position.

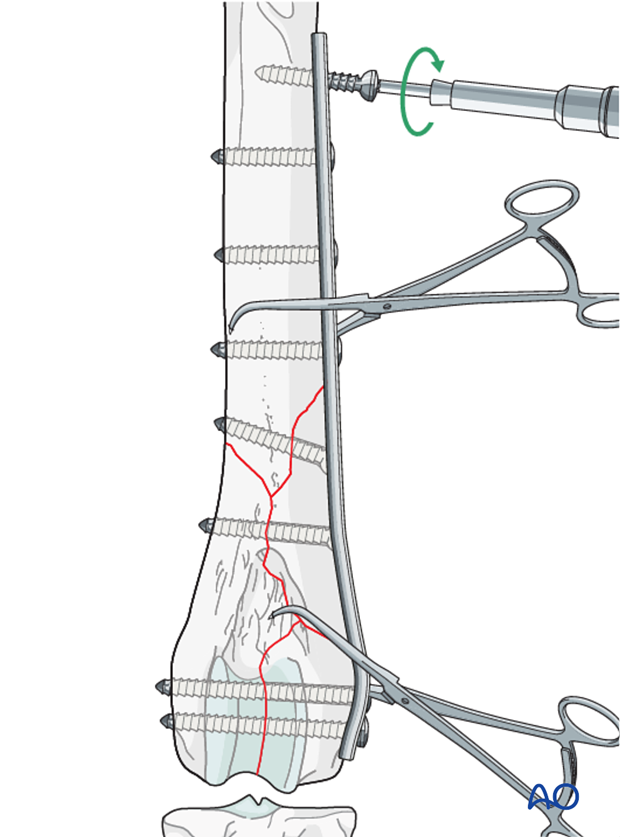

The remaining screw holes are filled. If a screw hole lays over the fracture plane it should be left open.
Note: Care should be taken to avoid penetrating the articular surface with the screws. Where possible at least one screw should traverse both condyles.
Fixation with a locking plate

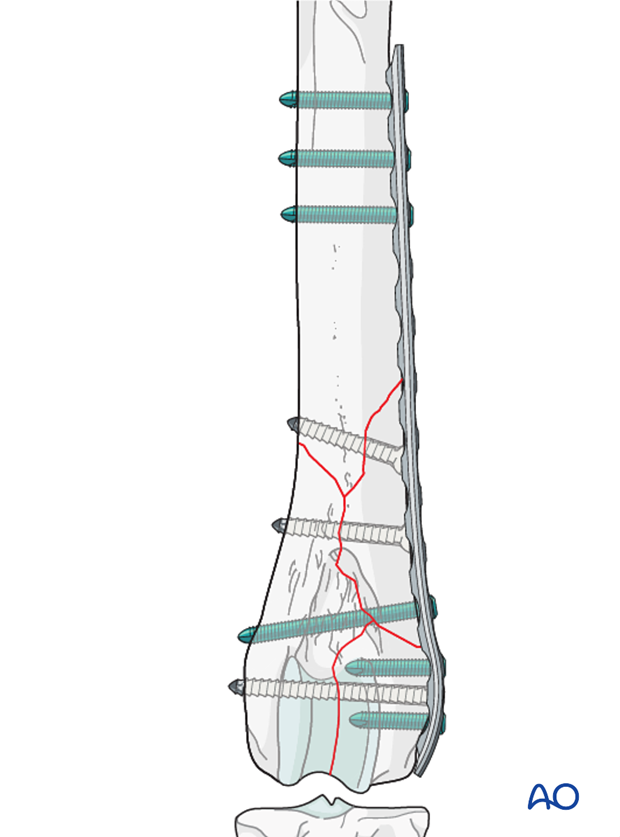

If a locking plate is used, only 2-3 locking bicortical screws are needed per main fragment. One advantage of using a locking plate is that precise contouring is not necessary. Great care must be taken when contouring the distal part of the locking plate to avoid directing screws into the joint.
Note: If a combination of cortex and locking screws is used, the plate must be anatomically contoured at the sites of non-locking screw insertion. The non-locking screws must be inserted and tightened before any locking screws are placed.

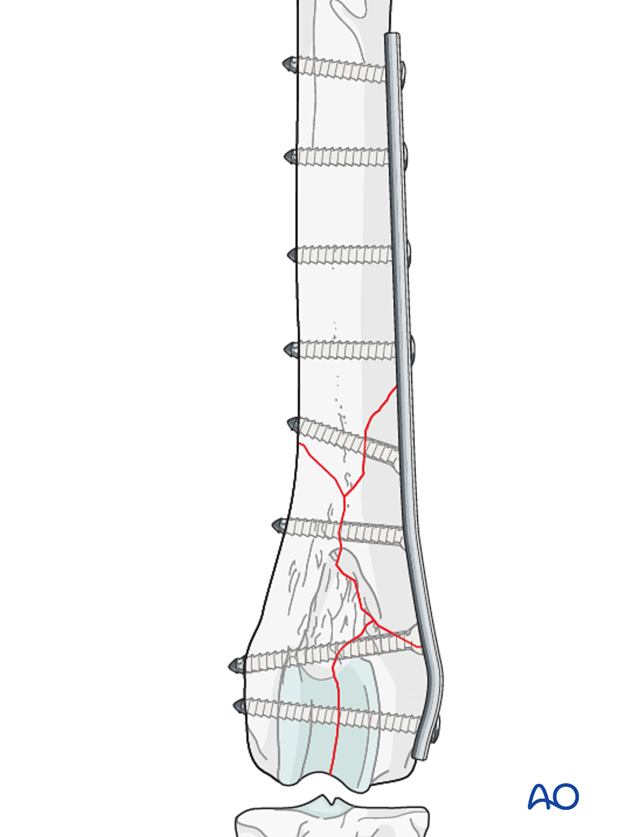

Validation of fixation
Postoperative radiographs should be taken to assess the repair.
Activity restriction and controlled walking is indicated until evidence of bone healing is detected by radiographic examinations.
Phase 1: 1-3 day after surgery
The aim is to reduce the edema, inflammation and pain using anti-inflammatory and analgesic medications.
Passive range of motion of the hip and stifle joint can be initiated to promote mobility and joint health.
Phase 2: 4-10 days after surgery
The aim is to resolve the hematoma, edema and control pain, and prevent muscle contracture.
Anti-inflammatory and analgesic medications are still needed. Rehabilitation and integrative medical therapies can be used.
Special attention should be given to patients less than 1 year of age with a femoral fracture, as they are at risk for developing quadriceps contracture. Early controlled activity and passive range of motion is strongly recommended to help prevent this complication.
If the patient is not starting to use the limb within few days after surgery, a careful evaluation is recommended.
Phase 3: 10 days-8 weeks after surgery
Rehabilitation therapy is continued.
10-14 days after surgery the sutures are removed.
Radiographic assessment is performed every 4-8 weeks until bone healing is confirmed.
Implants may be removed if there is irritation or infection present, however if they are not causing problems for the patient, there is no need for implant removal.
