ORIF - Lag screws outside protection plate

1. Principles

Operative treatment with lag screws and protection plate

For the treatment of simple spiral fractures in the diaphyseal area, absolute stability is an appropriate option. For this, anatomical reduction and interfragmentary compression are necessary. Interfragmentary compression is achieved with at least two lag screws, but the strength of this fixation is often insufficient for clinical use.

Tibial shaft simple fracture, spiral: Insertion of metaphyseal plate screws
Protection plate

Bending, shearing, and torsional forces acting on an unprotected lag screw may cause screw loosening, loss of compression, or fracture of the bone. In order to protect the lag screw from these forces, a protection plate must be applied.

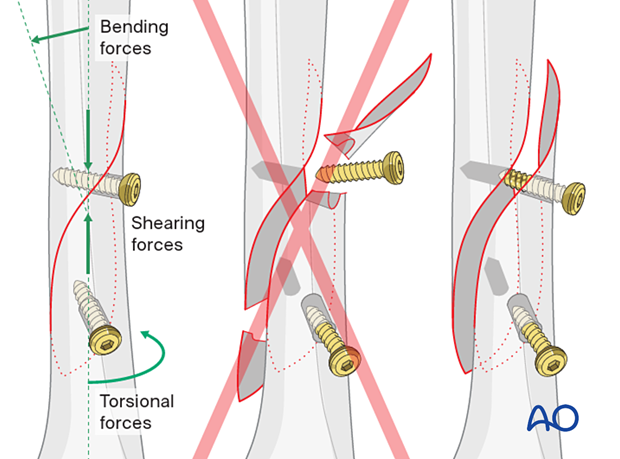

Bending, shearing and torsional forces may cause screw loosening

2. Preoperative planning

Screw position

Lag screws should always be inserted as perpendicular as possible to the fracture plane where they cross it.

Lag screws inserted through the plate give better stability than screws outside of the plate. Whenever possible, plan the plate position so that one or two screws can be inserted through the plate and still be perpendicular to the fracture.

Nonetheless, in some situations, one, or both, lag screws have to be inserted outside of the plate, depending on fracture geometry and surgical access.

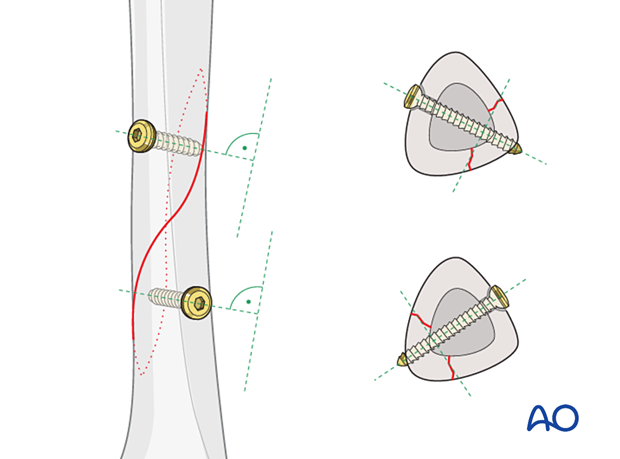

Tibial shaft simple fracture, spiral: screw position

Plate location

If the anteromedial skin is completely free of injury, a plate can be positioned on this tibial surface. When in doubt about the condition of soft tissues, using an anterolateral plate may have less risk of wound breakdown.

An anteromedial, subcutaneous plate does not require muscle elevation, as would be necessary anterolaterally. Furthermore, this location also allows a more distal position of the plate.

The plate should be long enough to span the fracture zone, usually with at least three screws proximal and distal to the fracture zone.

A narrow, large-fragment (4.5 mm) plate is usually chosen. It will need to be bent and twisted to fit the selected tibial surface.

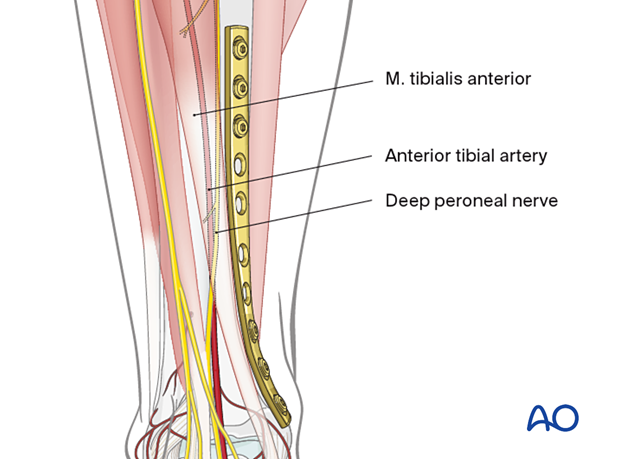

Tibial shaft simple fracture, spiral: Plate location

3. Patient preparation and approaches

Patient preparation

This procedure is normally performed with the patient placed in a supine position.

Patient in supine position

Anteromedial approach

An anteromedial approach can be used if the soft-tissue envelope allows. The advantage of this approach is that it removes no muscle from the fracture fragments. Also, the medial surface of the tibia is normally flat, and conventional plates can be contoured to fit it or pre-contoured plates used with minimal or no modification.

Anteromedial approach to the tibial shaft

Anterolateral approach

The anterolateral approach can also be used if the plate is best placed on the lateral surface of the tibia. It can also be used when the medial soft tissues are compromised.

Anterolateral approach to the tibial shaft

4. Open reduction

Introduction

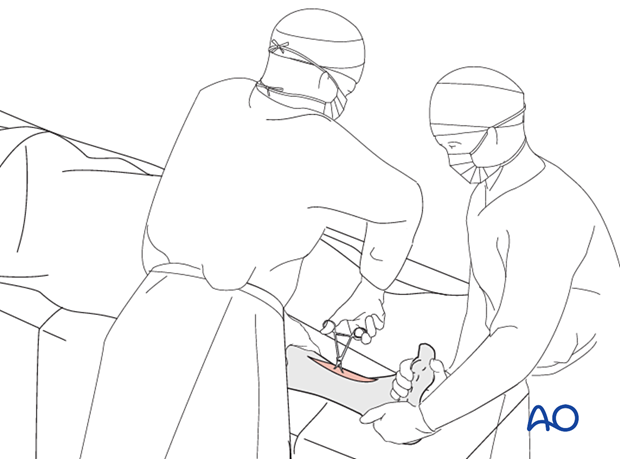

Open, or direct, reduction is necessary to achieve the required anatomical reduction.

Mobilize just enough of the periosteum around the fracture edges to assess the quality of the reduction. Take care to protect the periosteum wherever possible.

Pointed reduction forceps are preferred because they do less damage to the soft tissues.

Tibial shaft fracture: open reduction

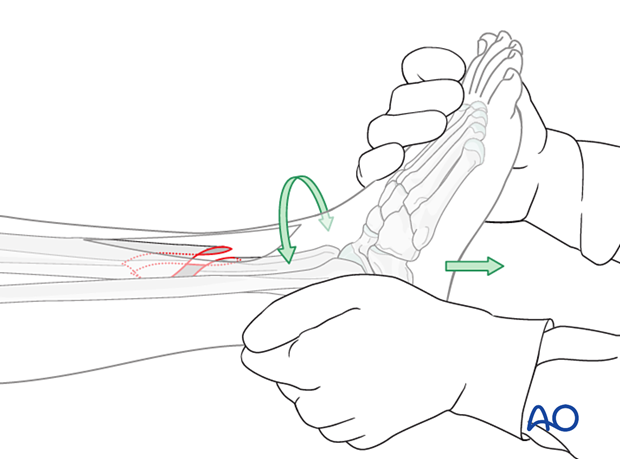

Manual traction

As a first step, length and rotation must be restored. This may be possible with manual traction. Otherwise, mechanical aids such as a large distractor, or bone spreader, should be considered.

Tibial shaft simple fracture, spiral: Manual traction

Reduction of the fracture

Once length and rotation are restored, pointed reduction forceps are used to compress and anatomically reduce the fracture. The tips of the forceps should be applied perpendicular to the plane of the fracture, just like a lag screw.

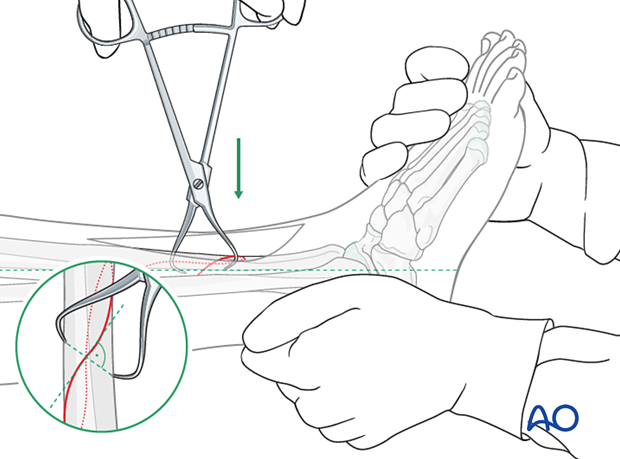

Tibial shaft simple fracture, spiral: Reduction of the fracture

5. Preparation

Introduction

Sometimes the fracture plane makes it impossible to insert the lag screws through the plate perpendicular to it. In such cases, the lag screws are inserted outside of the plate. Depending on fracture location and soft-tissue condition, the plate is then applied to either the anteromedial or the anterolateral surface.

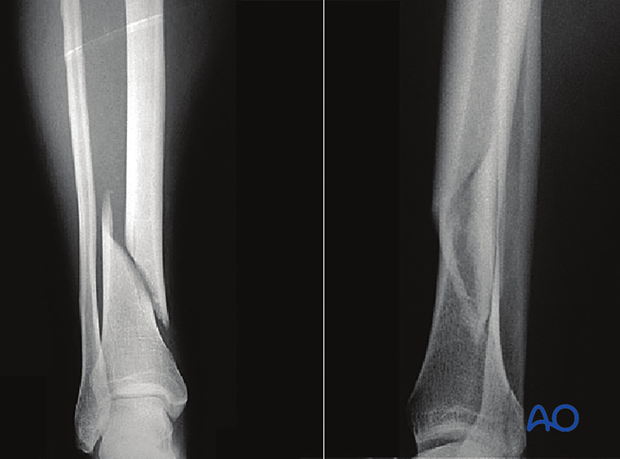

Tibial shaft simple fracture, spiral: Assessing the fracture plane

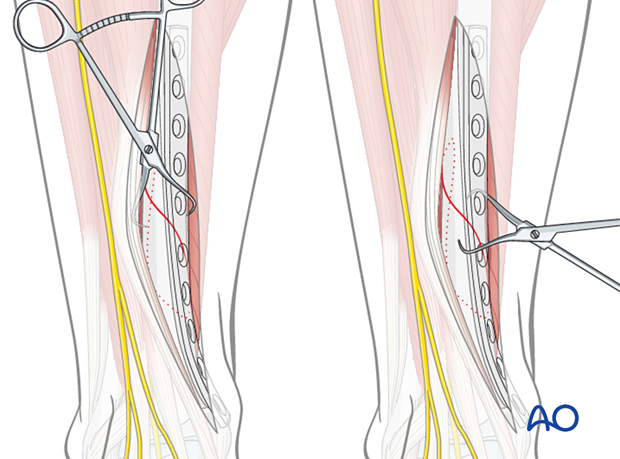

Provisional fixation with pointed reduction forceps

Use pointed reduction forceps to provisionally stabilize the fracture. Select a position for the forceps that will not interfere with the planned position of the screws or the plate.

Remember, that the forceps can be placed either medially or laterally. Choose the position that allows the most stability with the least soft-tissue damage.

Tibial shaft simple fracture, spiral: Provisional fixation

6. Drilling and tapping

Drill the gliding hole for the first lag screw

Using the appropriate drill guide and drill bit, drill a gliding hole in the near cortex.

Ensure that the direction of the drill is as perpendicular to the fracture plane as possible.

More information about lag screw insertion is provided here:

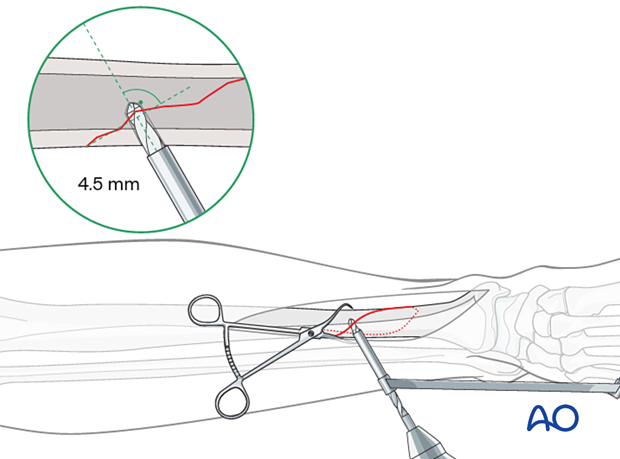

Tibial shaft simple fracture, spiral: Drilling the gliding hole

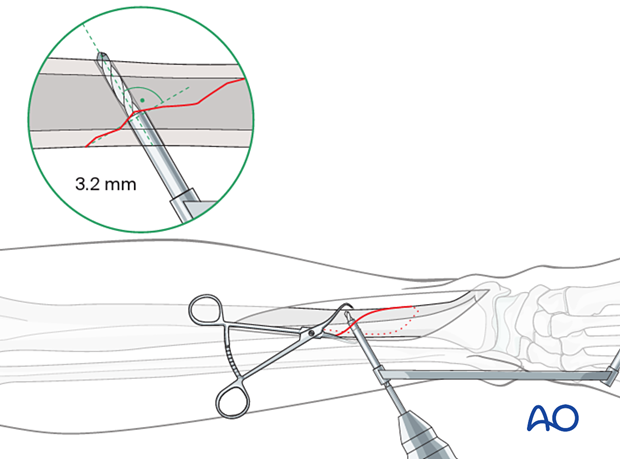

Drill the thread hole

Insert the drill guide through the plate and the gliding hole. Use the appropriate drill bit to drill for the core diameter of the chosen screw just through the far cortex.

Tibial shaft simple fracture, spiral: Drilling the thread hole

Countersinking in diaphyseal bone

There are two important reasons for countersinking:

  • It ensures that the screw head has the maximal contact area with the bone, so that its compressive forces are widely distributed
  • A countersunk screw head is less prominent and leads to less soft-tissue irritation

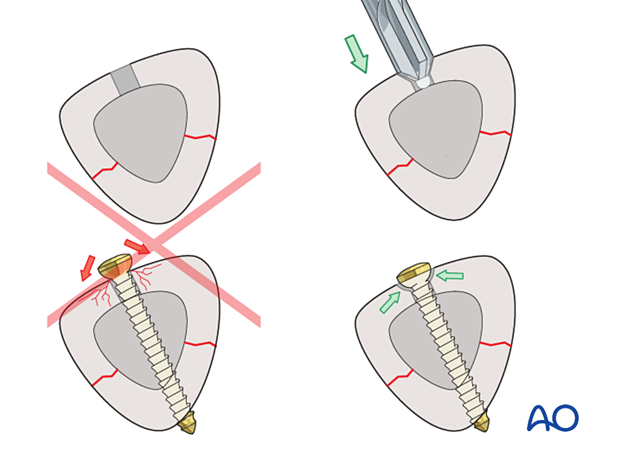

Tibial shaft simple fracture: Countersinking in diaphyseal bone

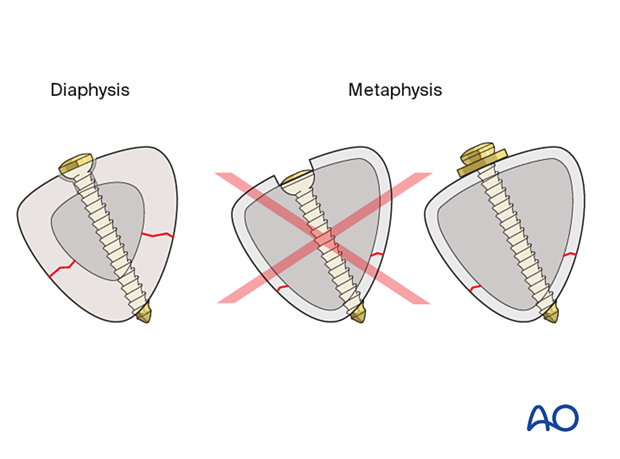

No countersinking in the metaphysis

Do not countersink the screws in the metaphysis as the cortex is very thin here.

Countersinking through a thin cortex removes the bone surface on which the screw head must rest. Instead, a washer should be considered.

Tibial shaft simple fracture: No countersinking in the metaphysis

Measure for screw length

Use a depth gauge to measure for screw length.

Measure the longer side of an oblique drill hole, as shown, to ensure sufficient screw length.

Screws should protrude 1–2 mm through the opposite cortex to ensure thread purchase. If a screw is too long, it may irritate the surrounding soft-tissue envelope in which the tip protrudes.

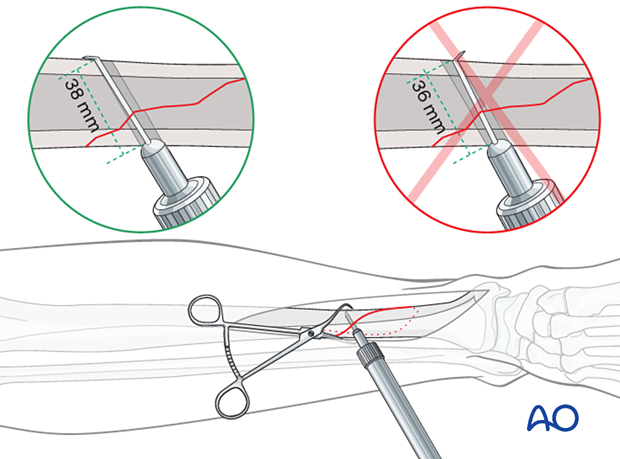

Tibial shaft simple fracture, spiral: Measuring for screw length

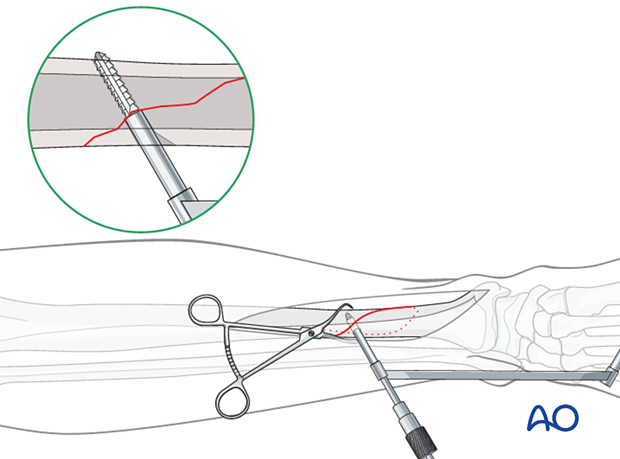

Tap the thread hole

Use a tap and the corresponding drill sleeve to tap the thread hole for the chosen screw size (if self-tapping screws are not used).

Tibial shaft simple fracture, spiral: Tapping the thread hole

7. Screw insertion

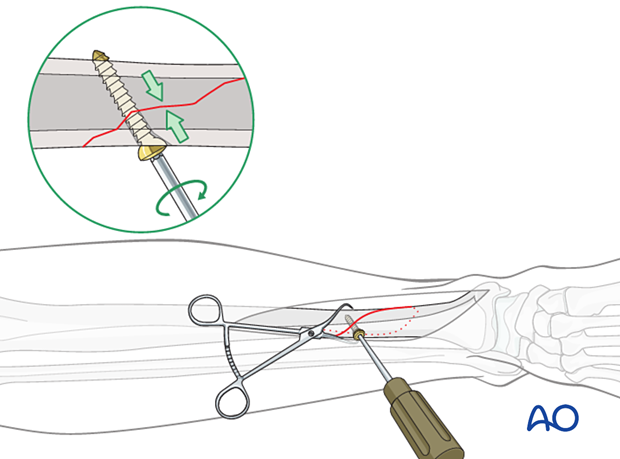

Lag screw insertion

Insert the first lag screw and carefully tighten it. Ensure that the fracture remains reduced and is compressed.

Tibial shaft simple fracture, spiral: Lag screw insertion

Insertion of the second lag screw

Insert the second lag screw following the same steps as for the first lag screw. If a 4.5 mm screw is chosen:

  1. Drill the gliding hole with a 4.5 mm drill bit and drill guide as perpendicular to the fracture plane as possible.
  2. Insert the 4.5 mm/3.2 mm drill guide into the gliding hole.
  3. Drill the thread hole with a 3.2 mm drill bit.
  4. Countersink the near cortex.
  5. Measure for length.
  6. Tap the thread hole with a 4.5 mm tap.
  7. Insert the screw.

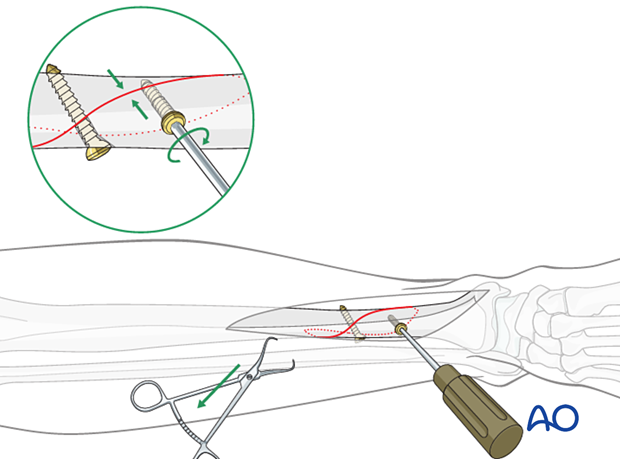

Tibial shaft simple fracture, spiral: Insertion of the second lag screw

8. Plate placement

Plate selection and preparation

The chosen plate should allow the following:

  • A hole near the middle of the fracture, for the first lag screw to be inserted as perpendicular as possible to the fracture plane
  • Sufficient length for at least four screws proximal and distal to the fracture zone

Remember that whenever the plate is placed distally, it must be twisted and bent to match the shape of the tibia in that region.

Tibial shaft simple fracture: Plate selection and preparation

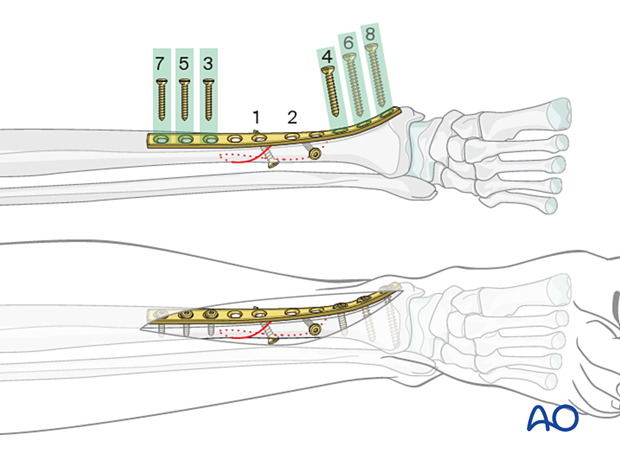

Insertion of diaphyseal plate screws

Insert the screws closest to the fracture zone first. Insert the remaining screws alternately, working your way outwards. Remember that it is not necessary to fill every screw hole, but those closest to and furthest from the fracture must be used.

For all diaphyseal screws, use cortical screws.

Tibial shaft simple fracture, spiral: Insertion of diaphyseal plate screws

Insertion of metaphyseal plate screws

In the metaphysis, cancellous screws can be used.

Observe the following steps:

  1. Drill using the appropriate DCP drill guide to ensure a central drill hole. Do not penetrate the far cortex (or the joint).
  2. Measure for screw length.
  3. Tap just the near cortex with the appropriate drill sleeve.
  4. Insert cancellous screws and carefully tighten them.

Metaphyseal screws should be as long as possible but must not penetrate the far cortex or the joint.

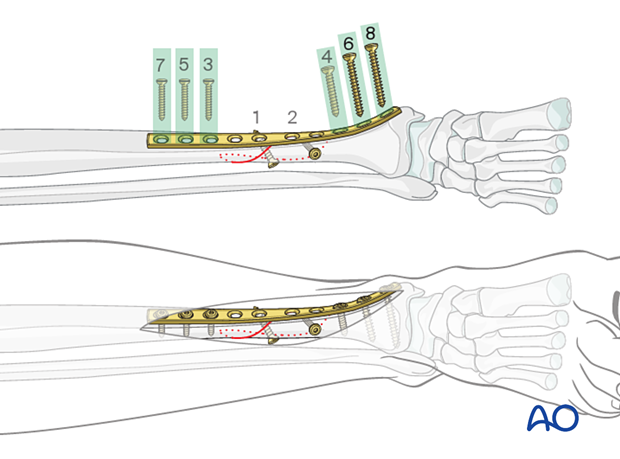

Tibial shaft simple fracture, spiral: Insertion of metaphyseal plate screws

9. Aftercare

Perioperative antibiotics may be discontinued before 24 hours.

Attention is given to:

  • Pain control
  • Mobilization without early weight bearing
  • Leg elevation in the presence of swelling
  • Thromboembolic prophylaxis
  • Early recognition of complications

Soft-tissue protection

A brief period of splintage may be beneficial for protection of the soft tissues but should last no longer than 1–2 weeks. Thereafter, mobilization of the ankle and subtalar joints should be encouraged.

Mobilization

Active, active assisted, and passive motion of all joints (hip, knee, ankle, toes) may begin as soon as the patient is comfortable. Attempt to preserve passive dorsiflexion range of motion.

Joint mobilization

Weight bearing

For fractures treated with plating techniques, limited weight bearing (15 kg maximum), with crutches, may begin as tolerated, but full weight bearing should be avoided until fracture healing is more advanced (8–12 weeks).

For fractures treated with intramedullary nailing, weight bearing as tolerated, with crutches, may begin immediately.

Follow-up

Follow-up is recommended after 2, 6, and 12 weeks and every 6–12 weeks thereafter until radiographic healing and function are established. Weight bearing can be progressed after 6–8 weeks when x-rays have indicated that the fracture has shown signs of progressive healing.

Implant removal

Implant removal may be necessary in cases of soft-tissue irritation caused by the implants. The best time for implant removal is after complete bone remodeling, usually at least 12 months after surgery. This is to reduce the risk of refracture.

10. Case

This is a simple spiral fracture of the tibial shaft with a proximal fibular neck fracture.

This is a simple spiral fracture of the tibial shaft with a proximal fibular neck fracture.

Lateral image of the same fracture.

Lateral image of the same fracture.

Because of the spiral nature of this fracture type, it may have a component that goes into the tibiotalar joint. A CT scan was used to assess this.

Because of the spiral nature of this fracture, many of these twisting injuries have a component of fracture that goes into the joint.

A CT scan at the malleolar level showed that the fracture continued into the tibiotalar/ankle joint but with minimal displacement.

A CT scan at the malleolar level showed that the fracture did continue into the ankle joint but with minimal displacement.

Before plating the tibia, a lag screw was placed across the fracture site just above the ankle to prevent the intraarticular component from displacing.

Before plating the tibia, a lag screw was placed across the fracture site just above the ankle to prevent the intraarticular component from displacing.

A K-wire was inserted to ensure that the fracture did not displace during lag screw insertion.

A K-wire was inserted to ensure the fracture did not displace during lag screw insertion.

The lag screw was placed just above the joint line in the AP plane. This lag screw is probably 2 mm too long.

The lag screw was placed just above the joint line in the AP plane. This lag screw is probably 2 mm too long.

The fracture was reduced with the help of a distractor with pins in the calcaneus and the proximal tibia. Note the small incision directly anterior, perpendicular to the fracture plane, positioned so that the fracture can be reduced under direct vision.

The fracture was reduced with the help of a distractor with pins in the calcaneus and proximal tibia.

The fracture has been exposed but not yet reduced.

The fracture has been exposed but not yet reduced.

The fracture has now been reduced and is held with a sharp Weber clamp.

The fracture has now been reduced and held with a sharp Weber clamp.

The pilot hole for a cortical lag screw is drilled from anterior to posterior.

The pilot hole for a cortical lag screw is being drilled from anterior to posterior.

After tapping and countersinking, the cortical lag screw is inserted. Care is taken not to overtighten it as this might create a new fracture.

After tapping and countersinking, the cortical lag screw is inserted.

The distal incision for the minimally invasive osteosynthesis (MIO) plate insertion is made on the medial side, taking care not to damage the saphenous vein and nerve.

The distal incision for the MIPO plate insertion is made on the medial side, taking care not to damage the saphenous vein and nerve.

The appropriate length locking compression plate (LCP) is selected and contoured.

The appropriate length LCP is selected and contoured.

A small amount of distal contour allows for the medial malleolar flare.

A small amount of distal contour allows for the medial malleolar flare.

The proximal incision is made.

The proximal incision is made.

The plate is slid under the soft tissues along the surface of the bone. In this case, the plate required further contouring so it was removed, adjusted, and reinserted.

The plate is slid under the soft tissues along the surface of the bone.

Final AP x-rays of minimally invasive osteosynthesis (MIO) plating using the near far principle for screw placement. It is important to remember that any screw that crosses a fracture line should be used with the lag technique.

As the fracture was well reduced, and held with two lag screws, the surgeon felt that only two distal screws and two proximal screws were required to achieve sufficient stability.

Final AP X-rays of MIO plating using the near far principle for screw placement.

AP lateral x-rays at 6 weeks, show the reduction has been maintained and the fracture is healing.

AP lateral X-rays at 6 weeks, showing the reduction has been maintained and the fracture is healing.

Healed tibial fracture at 6 months.

Healed tibial fracture at 6 months

Clinical image of good outcome at 30 weeks.

Clinical image of good outcome at 30 weeks
