MIO - Lag screw fixation

1. Principles/Introduction

Main goal

In this procedure the main goal is to reconstruct the joint surface.

Screw selection

For this procedure the following screws are typically used:

  • Cannulated 3.5 lag screws
  • Headless 3.0 screws

Headless screws are preferable where fixation involves inserting them through capsule or labrum.

If a headless screw is used, bicortical purchase is preferred but not required for compression.

Screw selection

2. Patient preparation

Depending on the approach, this procedure may be performed with the patient in a beach chair position or lateral position.

3. Approach

The approach will depend on the fracture pattern.

For fractures of the glenoid which are either transverse or run obliquely from low posterior to high anterior, then we insert the camera posteriorly.

For fractures which are high posterior and low anterior, we insert the camera anteriorly.

Approach

4. Reduction

Reduction of the articular surface may be facilitated by the insertion of a K-wire to be used as joystick. For this reason, we prefer to use the cannulated system and insert the K-wire in such a way that it will subsequently serve as a guide for the lag screw trajectory.

The liquid used for distension should not be under high pressure. If it is under high pressure it will drive the fragments apart and make the reduction difficult.

If a satisfactory reduction cannot be achieved by closed manipulation one must resort to an open reduction and fixation.

Whenever K-wires are used as joysticks, whether as subsequent guide wires or not, they should not be inserted trans articular.

Reduction

In fractures of the glenoid where the fracture lines run obliquely, either low posterior to high anterior or from high posterior to low anterior, we can insert K-wires to be used as joysticks.

Where the fracture line is low posterior to high anterior, the joystick is inserted from anterior and may become the guide wire for the cannulated screw. Where the fracture line is high posterior the joystick is inserted from posterior.

A transverse fracture does not allow, because of its orientation, the insertion of a K-wire which can be used both as a joystick and then as a guide wire because of the inferiorly running axillary nerve.

mio lag screw fixation

When reduction is completed, the joystick K-wire is now inserted to temporarily fix the fracture.

The pressure of the arthroscopy liquid can now be increased to normal if necessary.

Make sure that K-wires are not directed into the suprascapular notch where they can compromise the neurovascular bundle.

mio lag screw fixation

5. Fixation

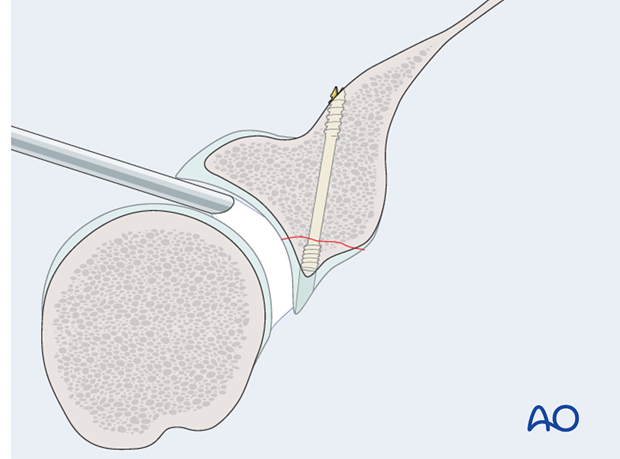

An appropriate length lag screw is inserted.

Fixation

The K-wire is removed.

Depending on the size of the fragment, two lag screws are preferred since one does not offer rotational stability.

Correct reduction is continuously verified by the arthroscopic view.

glenoid fossa partial articular transverse simple

Check the position of the screws and the reduction by image intensification.

orif lag screw fixation

6. Aftercare

The aftercare can be divided into 4 phases:

  1. Inflammatory phase (week 1–3)
  2. Early repair phase (week 4–6)
  3. Late repair and early tissue remodeling phase (week 7–12)
  4. Remodeling and reintegration phase (week 13 onwards)

Full details on each phase can be found here.
