Lag-screw fixation

Partial articular fractures require anatomical reduction. Noncomminuted fractures may be fixed with lag screws.

The reduction can be assisted with arthroscopy if skill and equipment are available.

The joint may collapse if there is impaction or comminution while the lag screw is tightened. In this case, plate fixation should be considered for chondral support.

Percutaneous reduction and fixation may be performed.

The advantages are:

• Shorter operation time
• Less soft-tissue damage
• Faster mobilization

This treatment option needs some skills and experience and a special reduction forceps to avoid impingement of swollen soft tissue (atraumatic technique).

If a percutaneous reduction is not achievable, the treatment can be changed to an open surgery.

There may be a risk of damage of the flexor tendon and volar plate with excess force applied with these reduction forceps.

Place the patient supine with the arm on a radiolucent hand table.

For this procedure a dorsal approach to the PIP joint is normally used.

Dislocation usually occurs as a hyperflexion deformity.

This can be reduced by increasing the deformity with some volarly applied pressure on the middle phalanx to reduce the joint. This keeps the collateral structures in tension and reduced the risk of soft-tissue interposition.

Flex the PIP joint to gain a better view of the fracture and the joint.

Often the presence of comminution is not apparent from the x-rays and can only be determined under direct vision.

Use a dental pick carefully to free interposed tissues, and to remove blood clot and other debris.

Extend the PIP joint and apply traction. Put manual pressure on the palmar side of the middle phalanx.

Complete the reduction with help of a dental pick.

Preliminarily fix the fragment by inserting a K-wire. Be careful to place it in such a way that it will not conflict with later screw placement.

If a cannulated screw is planned, insert the guide wire to hold the reduction.

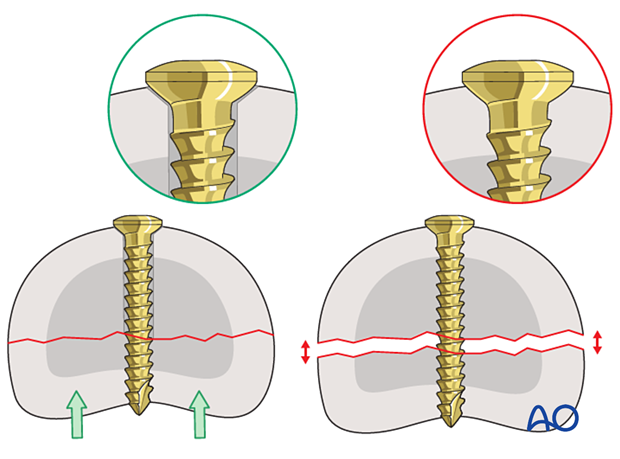

Insert the lag screw perpendicularly to the fracture plane.

• Cortical lag screw insertion

The maximal permitted diameter of the screw head is one third of the diameter of the avulsed fragment.

Screw length needs to be adequate for the screw just to penetrate the opposite cortex.

Most commonly, a 1.0 mm, or 1.3 mm screw is used. The use of a 1.0 mm screw will be illustrated.

Keeping the PIP joint flexed, drill an inside-out gliding hole through center of the fracture surface of the avulsed fragment. It is essential to prevent rotation of the small fragment by steadying it, using pointed reduction forceps.

The advantage of this technique is that it allows perfect positioning of the gliding hole (perpendicular to the fracture plane and in the center of the fragment).

A joint transfixation may help to protect the fixation.

If there is any doubt about the stability of the fixation, insert a K-wire crossing the PIP joint obliquely. Be careful to avoid conflict with the lag screw.

Leave the end of the K-wire outside of the skin to facilitate later removal.

The K-wire can be removed after 3–4 weeks.

The fixation should be protected with a splint to reduce the risk of wire breakage.

Check joint congruity using image intensification. Reduction must be anatomical.

The aftercare can be divided into four phases of healing:

• Inflammatory phase (week 1–3)
• Early repair phase (week 4–6)
• Late repair and early tissue remodeling phase (week 7–12)
• Remodeling and reintegration phase (week 13 onwards)

Full details on each phase can be found here.

The hand is immobilized with a dorsal splint for 3–4 weeks depending on the stability of fixation. This should permit movement of the unaffected fingers. The arm should be actively elevated to help reduce the swelling.

The hand should be immobilized in an intrinsic plus (Edinburgh) position:

• Neutral wrist position or up to 15° extension
• MCP joint in 90° flexion
• PIP joint in extension

The MCP joint is splinted in flexion to maintain its collateral ligaments at maximal length to avoid contractures.

The PIP joint is splinted in extension to maintain the length of the volar plate.

The patient is reviewed frequently to ensure progression of hand mobilization.

In the middle phalanx, the fracture line can be visible in the x-ray for up to 6 months. Clinical evaluation (level of pain) is the most important indicator of fracture healing and consolidation.

Remove the splint and K-wire after 4 weeks and protect the finger with buddy strapping to a neighboring finger to neutralize lateral forces on the finger.

If the fixation is stable enough, the patient is encouraged to take off the splint 2–3 times daily, and to commence with gentle active exercises, provided no transarticular K-wire has been used or has already been removed.

After 4 weeks, the splint (and any K-wire) is removed, and unrestricted active flexion and extension are permitted.

The implants may need to be removed in cases of soft-tissue irritation.

In case of joint stiffness or tendon adhesion restricting finger movement, arthrolysis or tenolysis may become necessary. In these circumstances, the implants can be removed at the same time.
