Closed treatment

Closed treatment may be considered in a patient where a fracture line without separation is visible on CT. The fracture may be unstable.

In these cases, the surgeon may want to fabricate a palatal splint. Different options exist:

• From dental impressions (most common)
• From CT DICOM data and intraoral scanners
• Using a complete digital workflow

The final objective is to get a model (virtual or physical) of the patient’s maxilla to fabricate the palatal splint.

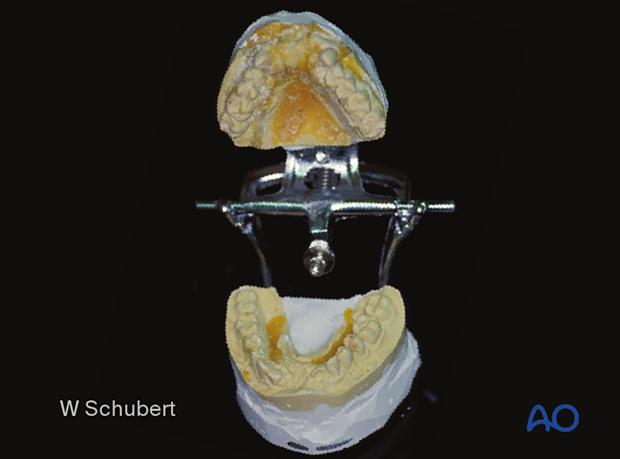

In the photographs, dental impressions have been taken, and gypsum models have been made.

This procedure is not a simple task; it is painful and challenging to get a dental impression from a traumatized patient.

The impression is usually still in malposition and must be sectioned with model surgery and repositioned in an anatomically correct alignment.

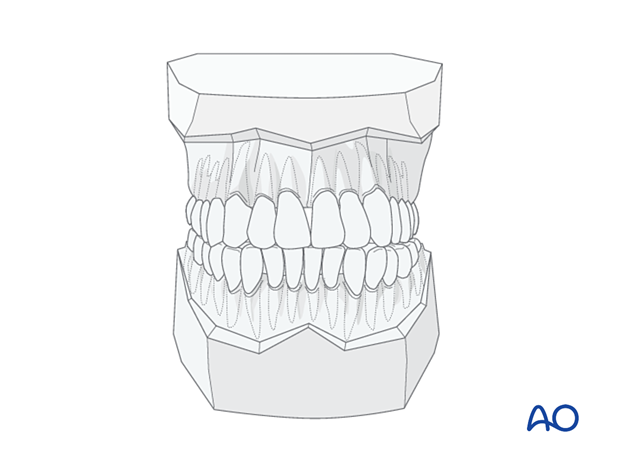

A cast model is obtained from an upper jaw impression.

An extraoral tabletop scan is performed and imported into special software to manipulate it.

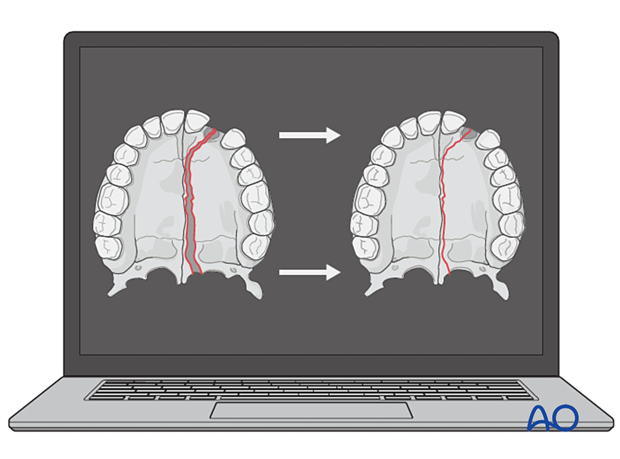

The virtual surgery is performed, realigning the segments, and checking the maxilla and its relationship with the mandibular dentition.

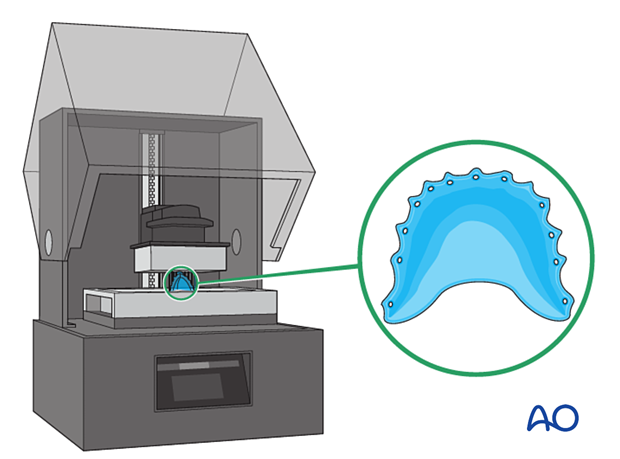

A palatal splint is designed (CADCAM) and printed with a 3D printer.

CT and intraoral scans can be performed and uploaded to a dedicated software program.

The virtual surgery is performed by realigning the segments and checking the maxilla and its relationship to the mandibular dentition.

A palatal splint is designed (CADCAM) and printed with a 3D printer.

A 3D printed model of the patient’s maxilla can also be obtained to visualize all the structures that need to be fixed.

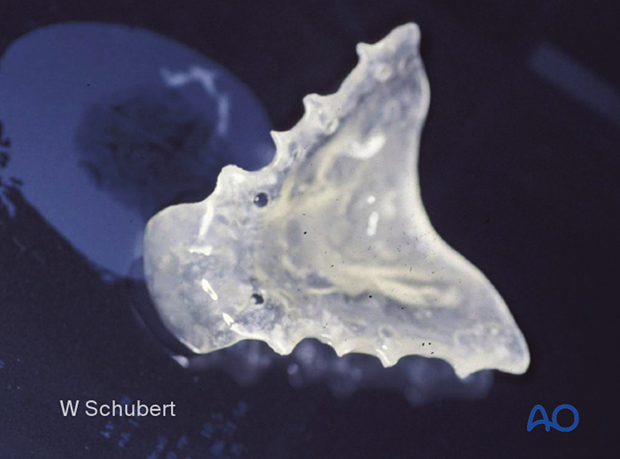

A palatal splint can be fabricated in plastic (methyl methacrylate (MMA)) material or 3D printed using a sterilizable polymer.

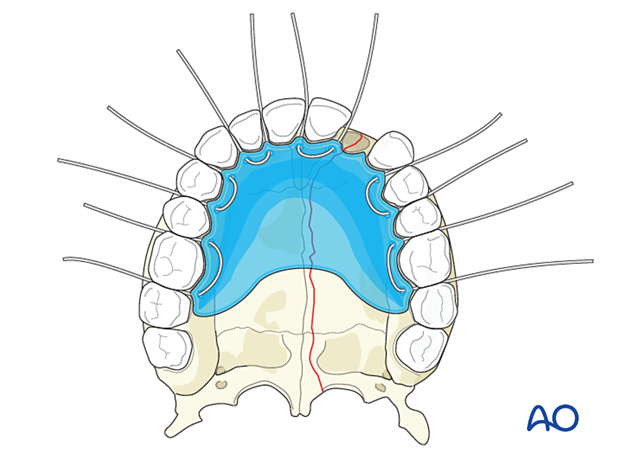

The palatal splint is then wired to the patient's dentition using circumdental wiring, with or without arch bars. The patient is commonly kept in MMF until adequate healing of the palatal fracture.

In this photograph, the palatal splint has been inserted and secured to the dentition using circumdental wires and an arch bar.

Existing dental models from previous treatments may be helpful in reestablishing the pre-injury anatomy.

Keeping the patient’s head in an upright position both preoperatively and postoperatively may significantly reduce periorbital edema and pain.

The following medications may be used:

• Analgesia as necessary (no aspirin or nonsteroidal anti-inflammatory drugs (NSAIDs) for seven days)
• In case of an open wound or exposed bone antibiotic coverage is indicated
• Regular perioral and oral wound care should include disinfectant mouth rinse, lip care, etc.

Postoperative imaging should be performed within the first days after surgery. 3D imaging (CT, cone beam) is recommended to assess complex fracture reductions.

In fractures involving the alveolar area, orthopantomograms (OPG) are helpful.

Diet depends on the fracture pattern.

A soft (non-chew) diet can be taken as tolerated until there has been adequate healing (usually 4–6 weeks).

Patients in MMF will remain on a liquid diet until the MMF is released.

Clinical follow-up depends on the complexity of the surgery and whether the patient has any postoperative problems.

Issues to consider with palatal fractures and alveolar ridge fractures include:

• Problems with dentition and dental sensation
• Problems with occlusion
• Problems with the temporomandibular joint (TMJ), such as reduced range of motion and pain

The need for and duration of MMF are very much dependent on:

• Fracture morphology
• Type and stability of fixation (including palatal splints)
• Dentition
• Coexistence of mandibular fractures
• Premorbid occlusion

Patients with arch bars, intraoral incisions, or wounds must be instructed about appropriate oral hygiene procedures. The presence of arch bars or elastics makes oral hygiene more complicated. A soft toothbrush (dipped in warm water to make it softer) should be used to clean the teeth and arch bars. Elastics are removed during oral hygiene procedures. Disinfectant mouth rinses (Chlorhexidine) should be prescribed and used at least three times a day to help sanitize the mouth.

For larger debris, a 1:1 mixture of hydrogen peroxide/Chlorhexidine can be used. The effervescent action of the hydrogen peroxide helps remove debris. A jet irrigator, (eg, Waterpik) is a handy tool to help remove debris from the wires. If used, care should be taken not to directly point the jet stream over intraoral incisions, which may lead to wound dehiscence.
