Lag screw and K-wire

1. Principles

Fractures of the femoral neck are highly unstable because of:

  • the long moment arm acting at the fracture plane (the entire femoral neck length), and
  • the location of the fracture plane along the lines of maximum shear stress.

Compression of the fracture surface is needed to resist the high shear stress. Compression is achieved by using a screw in lag fashion, additional stability is provided by the addition of an antirotational K-wire.

lag screw and k wire

2. Patient positioning

This procedure is performed with the patient in lateral recumbency.

lateral recumbency position

3. Approach

A craniolateral approach is performed.

lag screw and k wire

4. Surgical technique

K-wire placement

A K-wire is placed just proximal to the intended screw insertion site so it lays at the most proximal level of the fracture surface.

Advancement of the wire stops when it reached the fracture surface.

The glide hole for the screw is drilled into the femoral metaphysis below the level of the K Wire.

The insertion point for the screw on the femoral shaft is located just distal and slightly cranial to the third trochanter. The implants are oriented to follow the angle of inclination and anteversion of the femoral neck to ensure that the implants remain within the narrow femoral neck.

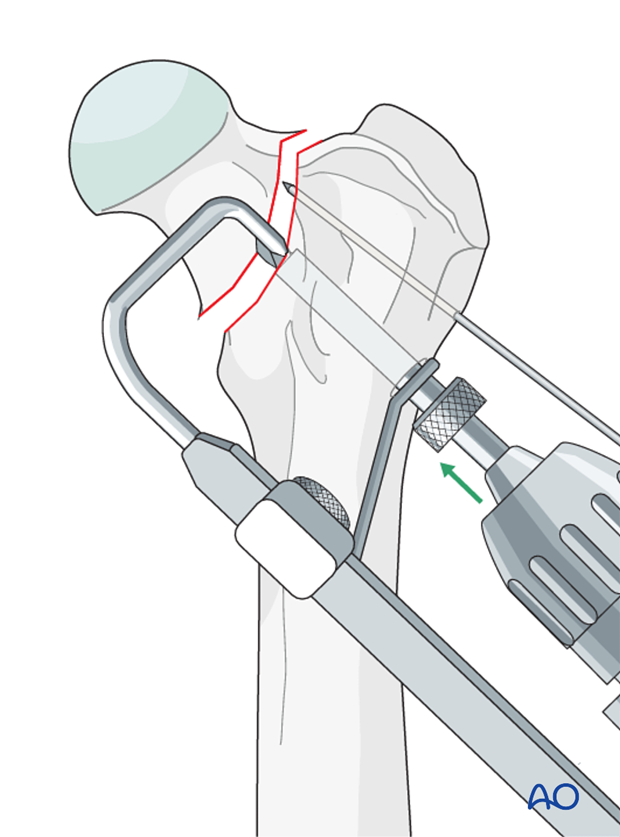

The drilling of the glide hole or the placement of the K-wire can be performed in a retrograde or normograde fashion. Retrograde fashion ensures easier positioning of the pins within the femoral neck but requires a more aggressive exposure of the proximal femur to expose the fracture surface. A “C” guide is often used to accurately place the implants in a normograde fashion.

lag screw and k wire

Reduction

The fracture is reduced and secured with pointed reduction forceps. The K-wire is driven into the femoral head without penetrating the articular surface.

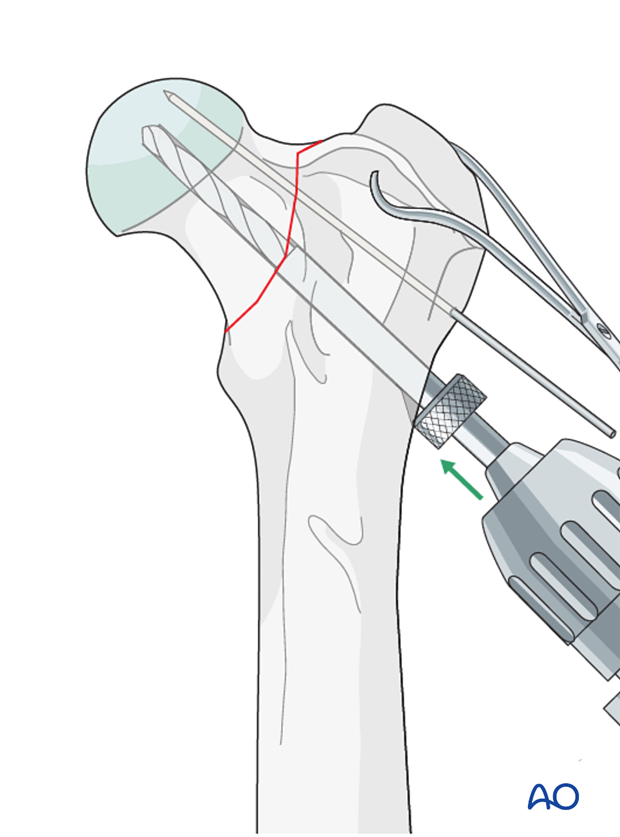

An appropriate drill sleeve is inserted into the glide hole and the thread hole is drilled, through the drill sleeve into the femoral head, using the appropriate drill bit.

lag screw and k wire

Screw placement

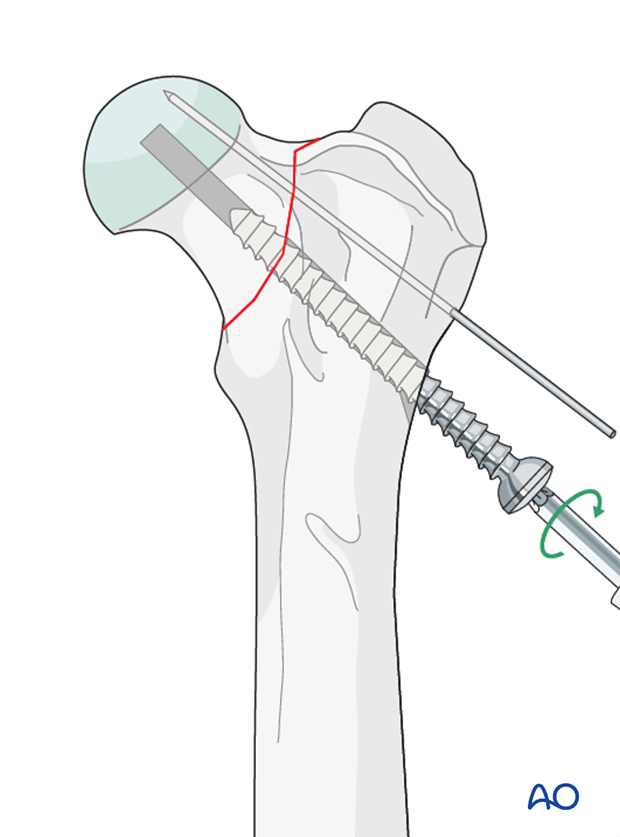

The hole is measured and tapped if necessary. A screw just slightly shorter than the depth of the hole must be chosen to allow compression of the fracture before the tip of the screw contacts the bottom of the hole.

Although a partially threaded or a cannulated screw can sometimes be used, large cortical screws are preferred because of their large core diameter.

If a partially threaded screw is used, a screw with a large core diameter must be chosen. One must ensure that the threaded portion of the screw fully crosses the fracture plane and only engages the neck/head to achieve compression.

Read more about lag screw fixation.

lag screw and k wire

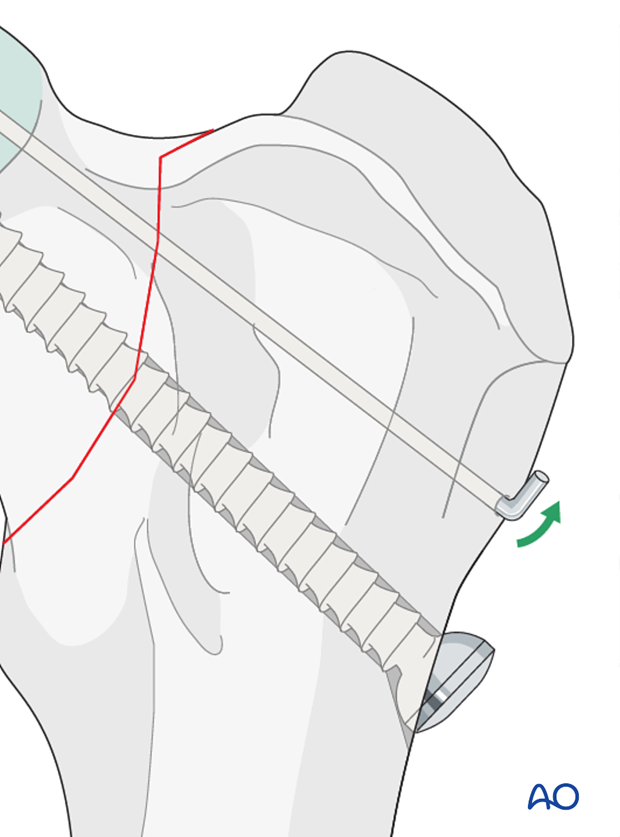

Pin is bent and cut short.

lag screw and k wire

Validation of fixation

Postoperative orthogonal radiographs are taken to assess fixation.

A common mistake is to start the hole for the screw too high on the femur. This high location results in an inappropriate screw angle that cannot follow the axis of the femoral neck and results in penetration of the trochanteric fossa.

lag screw and k wire

5. Case example B1

3-year-old mix-breed dog with a B1 fracture from being hit by a car.

definition

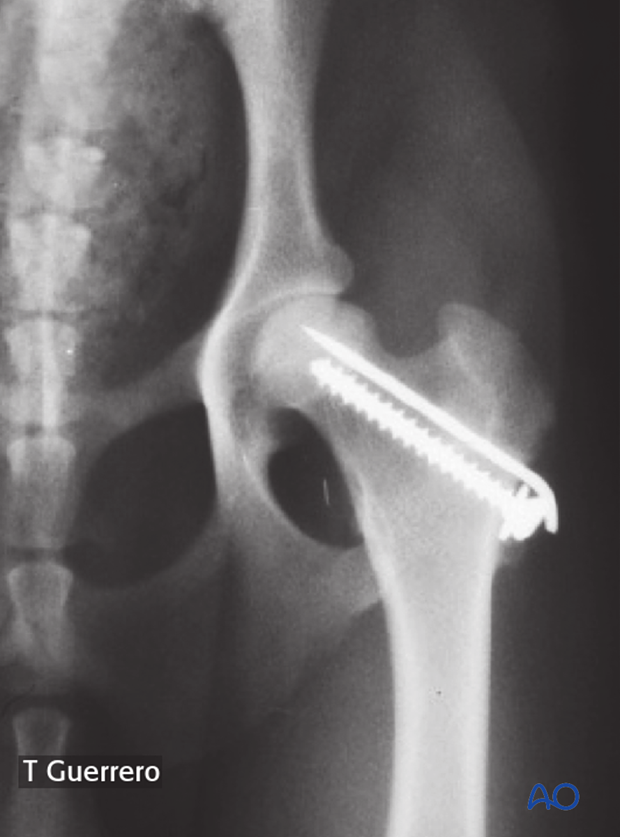

The fracture was repaired using a lag screw and an antirotational pin.

Postoperative radiographs at 5 months show complete healing of the fracture.

lag screw and k wire

6. Aftercare

Activity restriction is indicated until evidence of bone union is detected on radiographic examinations.

Implants may cause discomfort of the adjacent soft tissue. If this occurs, implants are removed after radiographic evidence of bone healing is complete. In case of infection, implants must be removed after complete bone healing.

Phase 1: 1-3 day after surgery

Aim is to reduce the edema, inflammation, and pain.

Integrative medical therapies, anti-inflammatory and analgesic medications.

Phase 2: 4-10 days after surgery

Aim is to resolve the hematoma, edema and control pain, and prevent muscle contracture.

Anti-inflammatory and analgesic medications may still be needed. Rehabilitation and integrative medical therapies can be used.

Special attention should be given to patients less than 1 year of age with a femoral fracture. Rehabilitation is strongly recommended to help prevent quadriceps muscle contracture.

If the dog is not starting to use the limb within a few days after surgery, a careful evaluation is recommended.

10-14 days after surgery the sutures are removed.

Radiographic assessment is performed every 4-8 weeks until complete bone healing is confirmed.

Implant removal

If there is no implant failure or infection, there is no need for implant removal.
