Retrograde elastic nailing (lateral and medial insertion)

This method describes fracture reduction and internal fixation with elastic stable intramedullary nails (ESIN) in the skeletally immature patient.

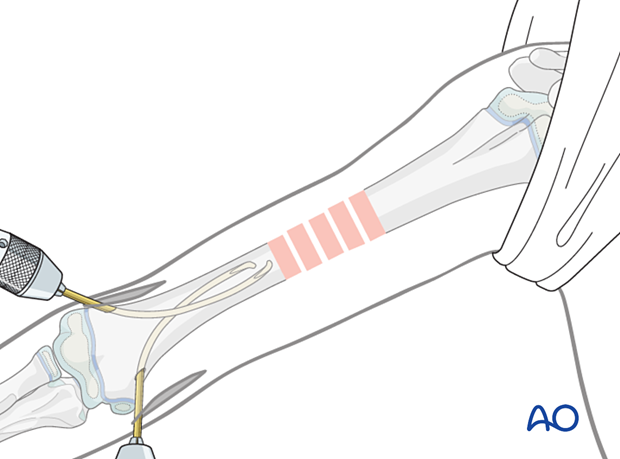

A bilateral, retrograde, intramedullary technique is described, in which the nails are inserted from the lateral and medial aspect of the humerus at the level of the distal metaphysis.

Once both nails have been advanced into the proximal fragment, the degree of stabilization permits cast-free functional rehabilitation.

This method can be used in any age group.

Throughout this section, generic fracture patterns are illustrated as:

• Unreduced (A)
• Reduced (B)
• Reduced and provisionally stabilized (C)
• Definitively stabilized (D)

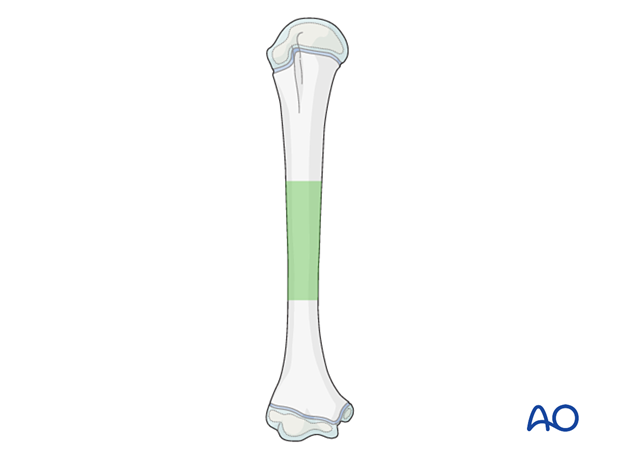

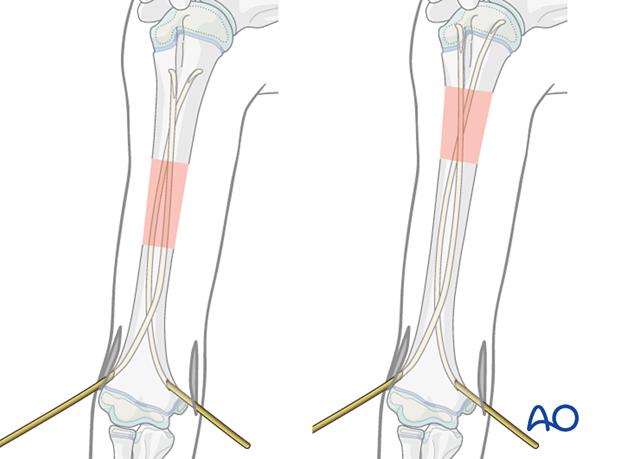

Middle third fractures are best treated with medial and lateral retrograde nail insertion. This avoids valgus deformity caused by two lateral nails.

Proximal third shaft and proximal metaphyseal fractures are stabilized with lateral retrograde nail insertion.

Distal third fractures are stabilized with antegrade lateral nail insertion.

• 2.0–3.0 mm elastic nails
• Awl or drill
• Inserter
• Hammer
• End caps and insertion device
• Impactor
• Extraction plier
• Nail cutter

The end cutter is useful to avoid sharp ends and soft-tissue irritation.

To estimate the optimal nail diameter, place the selected nail on the arm, parallel to the bone and check with an image intensifier.

For optimal stability, the nail diameter should be approximately one-third of the narrowest part of the medullary canal.

Both nails should be the same diameter.

Place the patient in a supine position on a radiolucent table with the arm draped up to the shoulder.

Before starting the operation, the position of the image intensifier should be checked to ensure an unobstructed view during the operation.

If closed reduction is not successful, an anterolateral approach can be used to access the fracture site.

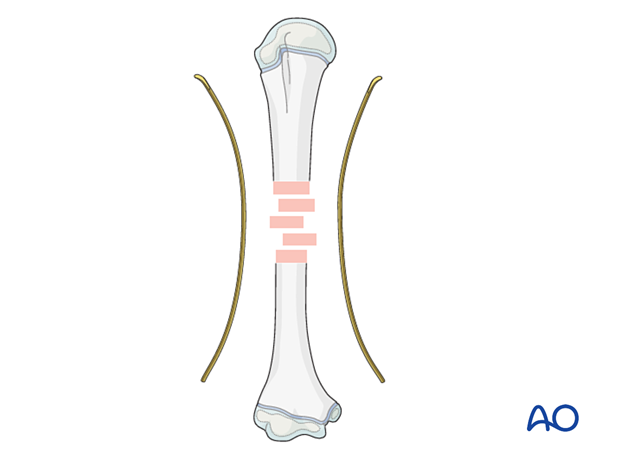

Precontour both nails with the apex at the level of the fracture site.

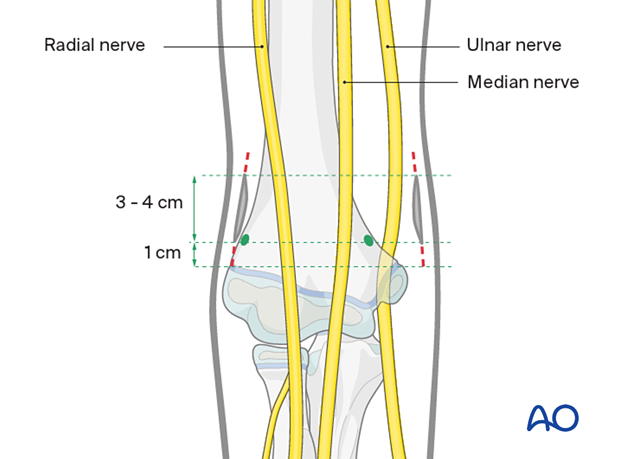

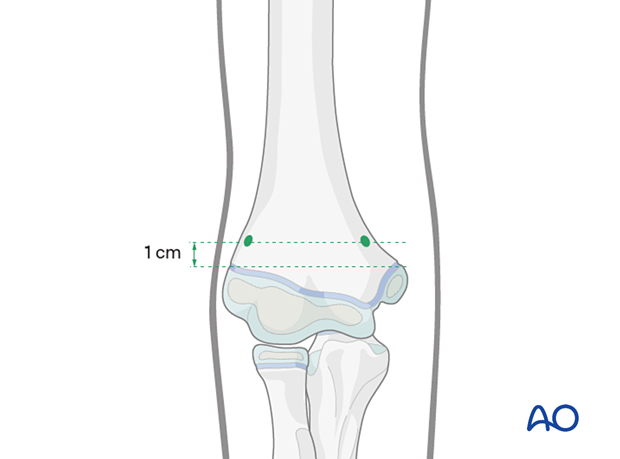

The entry points are located approximately 1 cm proximal to the epicondyle at the lateral and medial aspect of the humerus at the same level.

Perform symmetrical medial and lateral skin incisions. Begin the incisions 1 cm above the palpable prominence of the epicondyles and progress 3 cm proximally (cranially) up the medial/lateral aspect of the humerus.

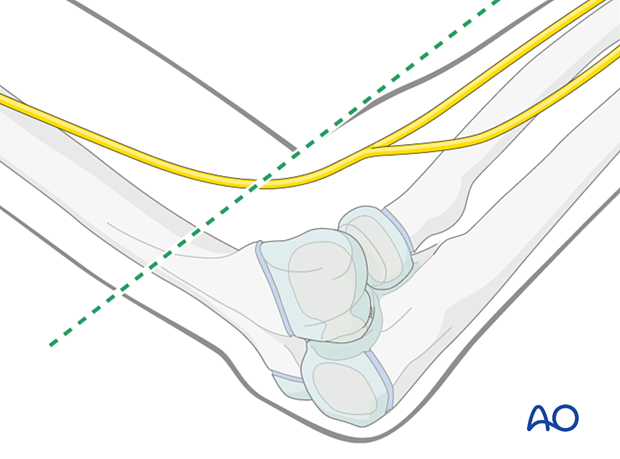

To avoid injury to the radial nerve, the lateral entry point should be below the level of the anterior forearm when the elbow is 90° flexed.

Divide the subcutaneous tissue by blunt dissection to the supracondylar ridge of the humerus.

Spread the subcutaneous tissue to expose the fascia. Bluntly dissect the fascia to expose the lateral supracondylar ridge of the distal humerus, taking care to remain on the anterior side of the intramuscular septum. Incision of the periosteum and subperiosteal preparation is necessary to avoid injuring the radial nerve.

On the medial side the entry point is anterior to the ulnar nerve. Incision of the periosteum and subperiosteal preparation is necessary to avoid injuring the ulnar nerve.

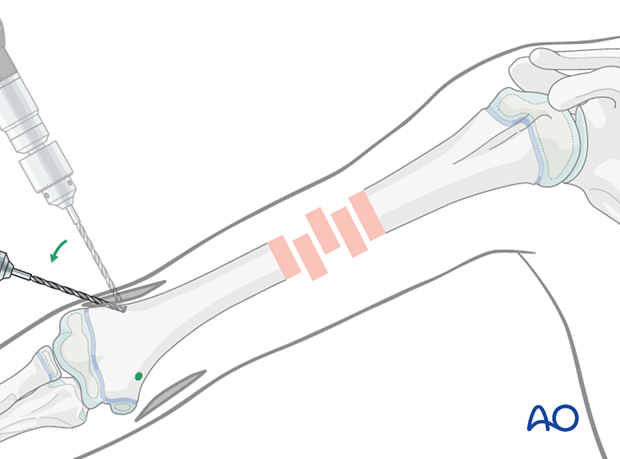

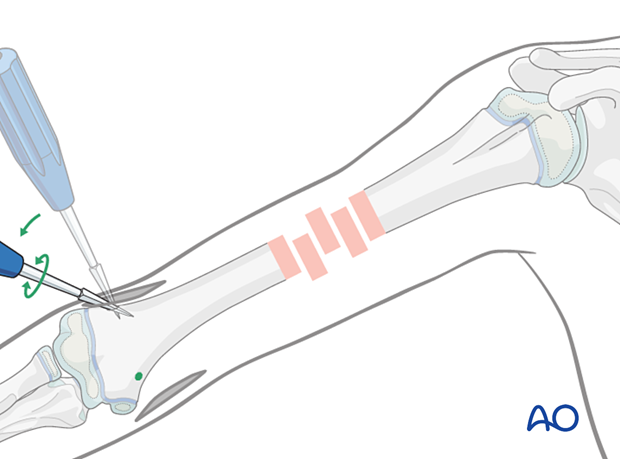

Perforate the bone with a drill, starting perpendicular to the bone surface to prevent the tip from slipping. Angulate the drill, while still running, to 45° to the humeral axis.

Without sufficient angulation, it is difficult to introduce the nails.

On the ulnar side, be aware that the distance from the skin surface to the bone is greater because of the accentuated ulnar waist of the humerus.

If an awl is used, place it at 90° to the cortex and start advancing by controlled oscillation. Tapping the awl with a hammer may be helpful to create a small starter hole in the cortex.

Once the awl engages the cortex, angulate to 45° to the shaft axis and progressively advance until it enters the medullary canal.

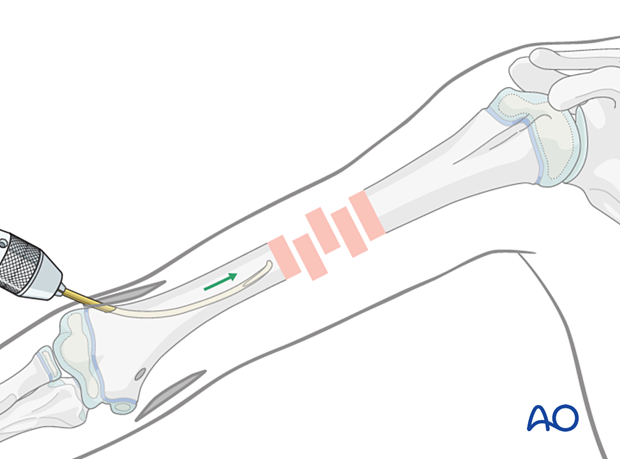

With the nail fixed in the inserter, pass it into the hole and advance it manually to the fracture using an oscillating maneuver.

Orientate the nail tip towards the lateral cortex.

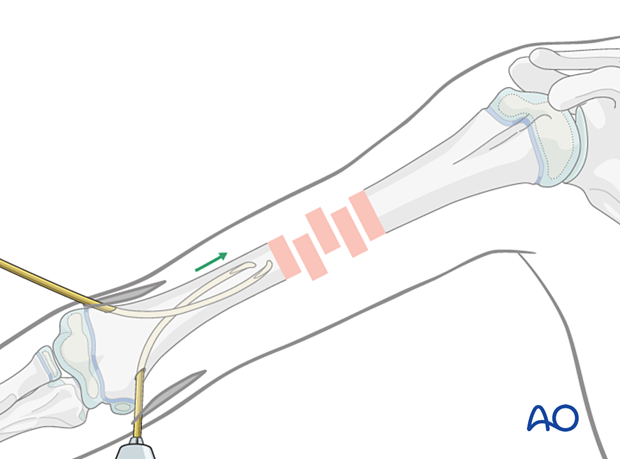

Insert the second nail in the same manner.

While the assistant stabilizes the proximal fragment and applies traction distally, manipulate the nail to reduce the fracture. A sheet for countertraction may aid the reduction.

If this is not successful, an anterolateral approach can be used to access the fracture zone.

Advance the nail across the fracture. Reduction can be improved by rotating the nail tip.

Advance the other nail across the fracture.

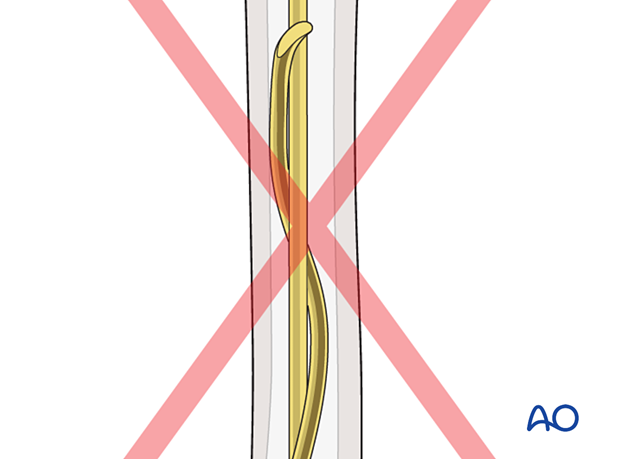

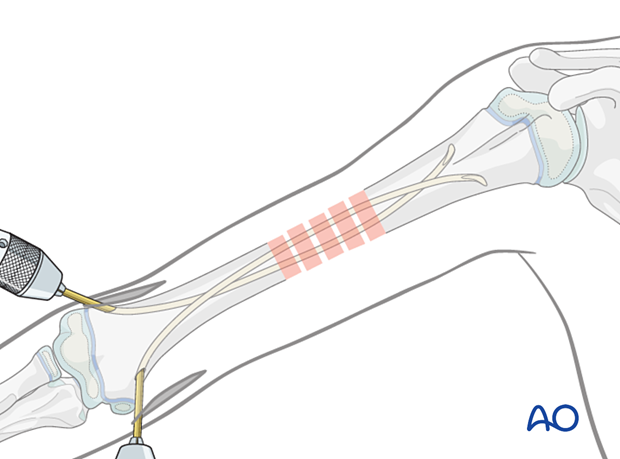

Advance both nails until the tips are placed in the proximal metaphysis and the nails provide good cortical contact across the fracture zone. This may be improved by slight rotation of the nails.

Rotate the nails slightly to achieve optimal spread of the nails at the fracture level, and reduction with good alignment.

It may be sufficient to place the nail tips in the metaphysis.

If needed, the nails may be advanced across the physis with gentle hammer blows to achieve sufficient stability.

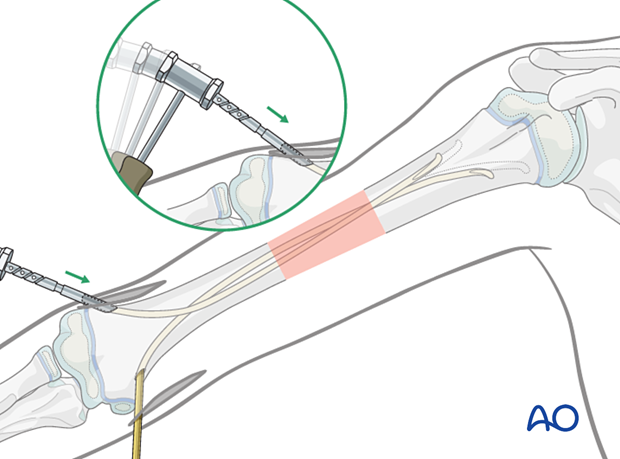

Cut both nails with the dedicated nail cutter to leave at least 1 cm outside the bone to facilitate removal.

Alternatively, the nails may be slightly withdrawn, cut and reinserted with the dedicated impactor.

Finally secure the nails into the bone of the metaphysis with gentle hammer blows.

Confirm stability and alignment of the fracture with full range of arm motion using real time imaging. Ensure there is no shoulder joint penetration by the nails.

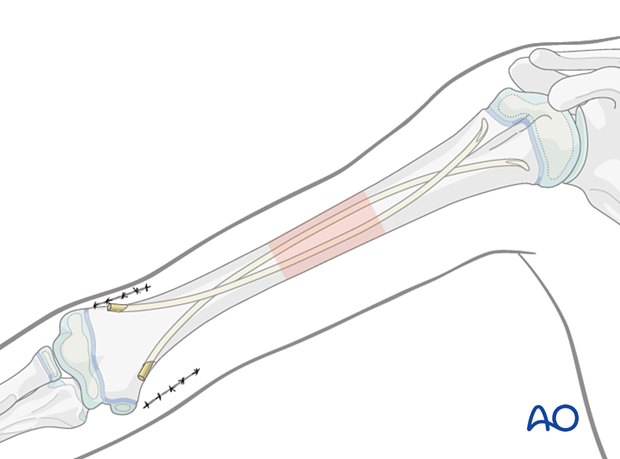

Close the skin and subcutaneous tissue in a standard manner.

The arm should be elevated on pillows to reduce swelling and pain, whilst the child remains in bed.

No additional immobilization is required.

See also the additional material on postoperative infection.

The arm may be placed in a sling until the patient is pain-free.

Early mobilization should be encouraged.

The first clinical and radiological follow-up is usually undertaken within 2 weeks.

Physiotherapy is not usually necessary.

Nerve function, especially the radial nerve, should be documented pre- and postoperatively.

Nail removal may be performed after fracture consolidation usually 3–6 months postsurgery.

Nail removal can be performed as a day case, under general anesthesia.

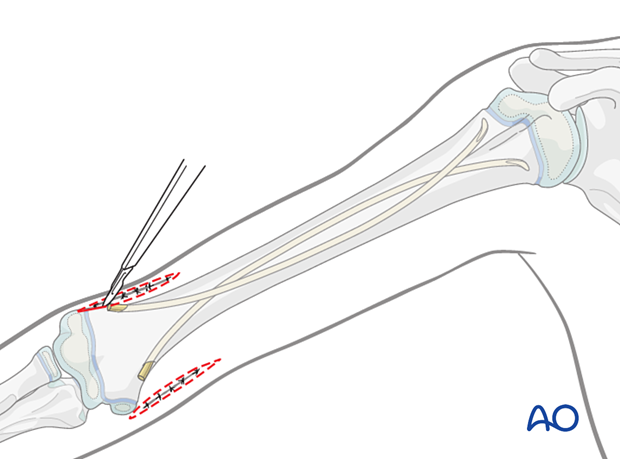

For cosmetic reasons, it is best to resect the whole scar and perform a cosmetic wound closure.

As the nails project from the bone, their ends can be easily palpated. In most cases a small bursa has formed. Once this bursa is opened, the end of each nail can be seen.

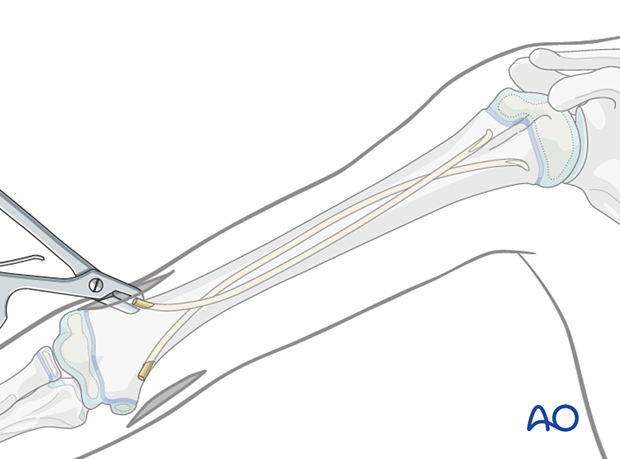

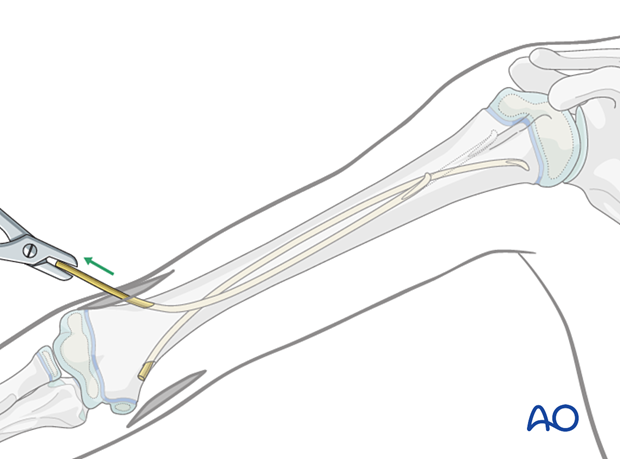

The nails can be removed with the extraction pliers, or similar clamp.
