Antegrade elastic nailing (lateral insertion)

This method describes fracture reduction and internal fixation with elastic stable intramedullary nails (ESIN) in the skeletally immature patient.

A monolateral, antegrade, intramedullary technique is described, in which both nails are inserted from the lateral aspect of the humerus at the level of the deltoid insertion.

Once both nails have been advanced into the distal fragment, the degree of stabilization permits cast-free functional rehabilitation.

This method can be used in any age group.

Throughout this section, generic fracture patterns are illustrated as:

• Unreduced (A)
• Reduced (B)
• Reduced and provisionally stabilized (C)
• Definitively stabilized (D)

The antegrade nail insertion is used for stabilization of distal third fractures.

Proximal third shaft and proximal metaphyseal fractures are stabilized with lateral retrograde nail insertion.

Middle third fractures are best treated with medial and lateral retrograde nail insertion. This avoids valgus deformity caused by two lateral nails.

• 2.0–3.0 mm elastic nails
• Awl or drill
• Inserter
• Hammer
• End caps and insertion device
• Impactor
• Extraction plier
• Nail cutter

The end cutter is useful to avoid sharp ends and soft-tissue irritation.

To estimate the optimal nail diameter, place the selected nail on the arm, parallel to the bone and check with an image intensifier.

For optimal stability, the nail diameter should be approximately one-third of the narrowest part of the medullary canal.

Both nails should be the same diameter.

Place the patient in a supine position on a radiolucent table with the arm draped up to the shoulder.

Before starting the operation, the position of the image intensifier should be checked to ensure an unobstructed view during the operation.

If closed reduction is not successful, an anterolateral approach can be used to access the fracture site.

Precontour both nails with the apex at the level of the fracture site.

The first entry point is on the lateral aspect of the humerus, just below the insertion of the deltoid. If the deltoid insertion is not palpable, the entry point must be at least 4–5 cm (depending on the size of the child) distal to the proximal growth plate. Mark this entry point on the skin.

The second entry point is 2 cm distal and 1 cm anterior to the first entry point.

Start the incision at the level of the proximal entry point and extend 4–5 cm proximally.

Bluntly dissect the subcutaneous tissue until the lateral cortex of the humerus is reached. It is important to visualize the bone.

Incise he periosteum and insert two lever retractors subperiosteally.

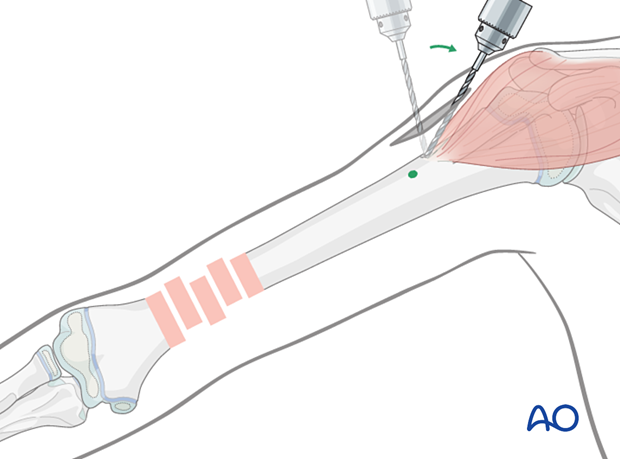

Because of the hard cortex at this level, perforate the bone with a drill, starting perpendicular to the bone surface to prevent the tip from slipping. Angulate the drill, while still running, to 45° to the humeral axis.

Without sufficient angulation, it is difficult to introduce the nails.

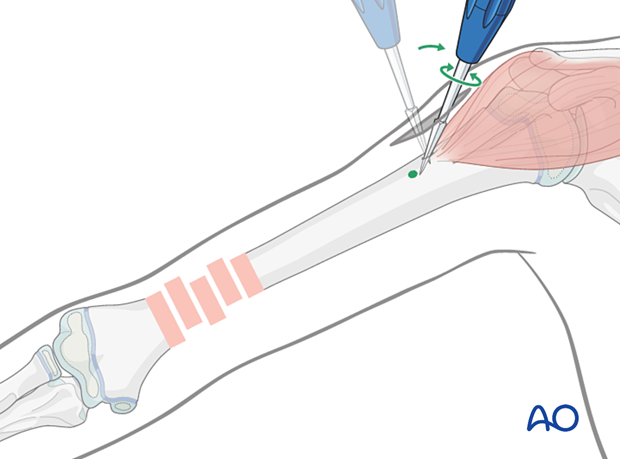

If an awl is used, place it at 90° to the lateral cortex and start advancing by controlled oscillation. Tapping the awl with a hammer may be helpful to create a small starter hole in the cortex.

Once the awl engages the lateral cortex, angulate to 45° to the shaft axis and progressively advance until it enters the medullary canal.

Create the second hole in a similar manner.

With the nail fixed in the inserter, pass it into the proximal hole and advance it manually as far as the fracture using an oscillating maneuver.

Orientate the nail tip towards the lateral cortex.

Insert the second nail into the distal/anterior hole and advance it as far as the fracture.

Rotate the nail 180° clockwise or counterclockwise, depending on the position of the first nail. The direction of rotation is chosen to avoid a spiral entanglement of the nails. The position should be verified with an image intensifier.

While the assistant stabilizes the distal fragment with traction, manipulate the nail to reduce the fracture.

If this is not successful, an anterolateral approach can be used to access the fracture zone.

Advance the nail across the fracture. Reduction can be improved by rotating the nail tip.

Advance the other nail across the fracture.

Bend the proximal part of the medially directed nail downwards towards the bone. This creates an S-shaped contour of the nail. The more it is bent, the more the tip is directed medially.

Advance both nails into the distal metaphysis close to the physis. Make sure the tips of the nails are inserted in a divergent direction for optimal stability.

Rotate the nails slightly to achieve optimal spread of the nails at the fracture level, and reduction with good alignment.

Cut both nails with the dedicated nail cutter to leave at least 1 cm outside the bone to facilitate removal.

Alternatively, the nails may be slightly withdrawn, cut and reinserted with the dedicated impactor.

Finally secure the nails into the bone of the metaphysis with gentle hammer blows.

Confirm stability and alignment of the fracture with full range of arm motion using real time imaging. Ensure there is no penetration of the cortex by the nails.

Close the skin and subcutaneous tissue in a standard manner.

The arm should be elevated on pillows to reduce swelling and pain, whilst the child remains in bed.

No additional immobilization is required.

See also the additional material on postoperative infection.

The arm may be placed in a sling until the patient is pain-free.

Early mobilization should be encouraged.

The first clinical and radiological follow-up is usually undertaken within 2 weeks.

Physiotherapy is not usually necessary.

Nerve function, especially the radial nerve, should be documented pre- and postoperatively.

Nail removal may be performed after fracture consolidation usually after 3–6 months postsurgery.

Nail removal can be performed as a day case, under general anesthesia.

For cosmetic reasons, it is best to resect the whole scar and perform a cosmetic wound closure.

As the nails project from the bone, their ends can be easily palpated. In most cases a small bursa has formed. Once this bursa is opened, the end of each nail can be seen.

The nails can be removed with the extraction pliers, or similar clamp.

This case shows a spiral shaft fracture of the distal third in a 12-year-old male patient with a radial nerve injury.

The fracture was treated with an open reduction and antegrade elastic nailing.
