Screw fixation

1. Principles

Joint reconstruction

The overriding principle is perfect reconstruction of the metacarpo/metatarsophalangeal joint surface. This high-motion joint is of extreme importance in a race horse and even minor incongruities can be debilitating.

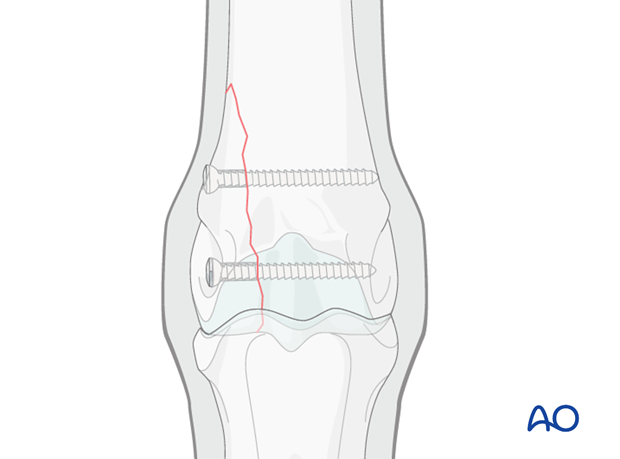

Lateral condylar fracture repaired with screws

Further considerations

Other principles involved in the surgery are to remove unstable fragments and to appropriately treat accessible cartilage lesions.

screw fixation

AO Teaching videos

Lateral condylar fracture of MCIII, fixation with 4.5mm cortex lag screws III

2. Patient positioning

This procedure is performed with the patient placed either in dorsal recumbency or lateral recumbency.

screw fixation

3. Preparation of the stab incision

Location of the insertion

The site of the first screw is the center of the epicondylar fossa. The location of the insertion in the fossa can be estimated by bisecting an imaginary line extending from the palmar/plantar wing of the proximal phalanx to the palpable dorsal edge of the lateral condyle.

Displaced lateral condylar fracture - screw fixation

Needle placement

A needle should be placed at the selected site and with the help of a lateromedial radiographic/fluoroscopic view its correct location is verified. It is critical to remember that this view is the ONLY view that truly indicates the location for the incision/drill.

Note: The dorsopalmar/plantar view only provides information relative to the height of the needle but not whether is located in the center, at its edge or outside the fossa.

Displaced lateral condylar fracture - screw fixation

Incision

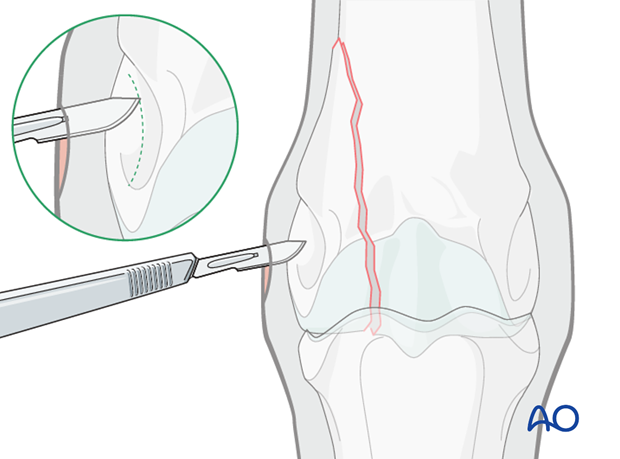

An incision is made with a #10 scalpel blade parallel to the fibers of the collateral ligament directly down to the bone surface. The epicondylar fossa is recognizable with the tip of the scalpel as it follows its contour.

Displaced lateral condylar fracture - screw fixation

4. Creation of the glide hole

In most cases, 4.5 mm cortex screws are used.

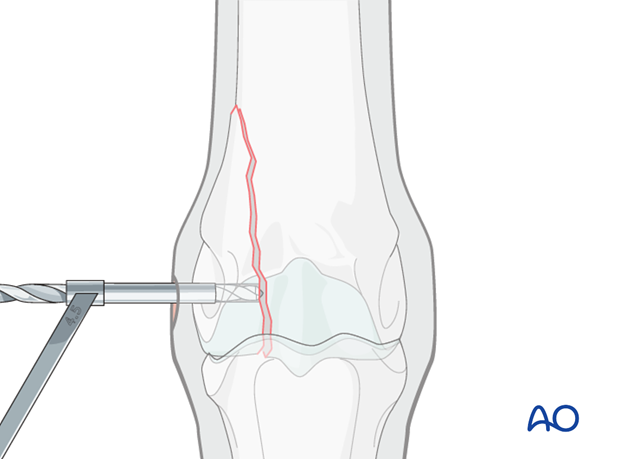

The 4.5 mm glide hole is created without reduction of the fracture. This allows the surgeon to easily feel the drill bit entering the fracture plane, assuring that the glide hole is of the correct length.

Nonetheless, radiographic verification (DP view) of the glide hole position and length is strongly advised.

Displaced lateral condylar fracture - screw fixation

Pitfall: direction of the drill bit

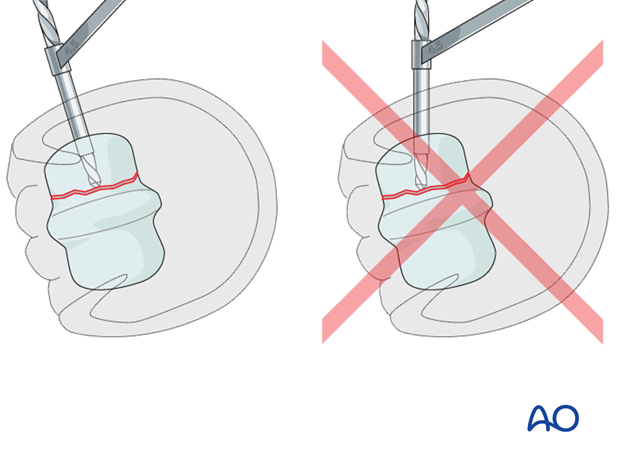

The glide hole must be parallel to the distal joint surface and directed in a perfectly lateral to medial direction. It is critical for the surgeon to remember that a horse lying on its side tends to have its lower limb externally rotated. If the surgeon drills perpendicular to the floor, the drill bit will be directed in a palmar/plantar direction.

Displaced lateral condylar fracture - screw fixation

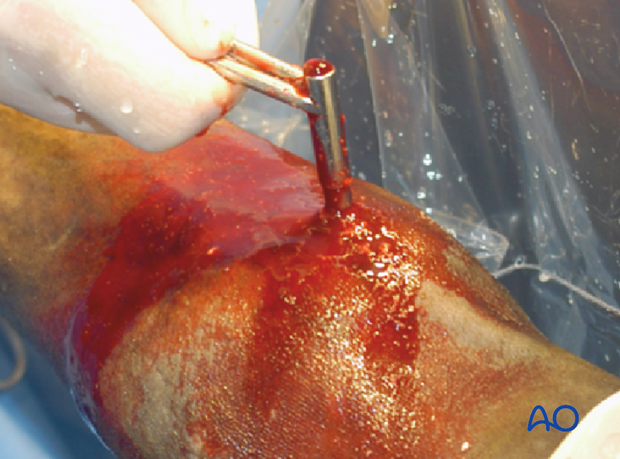

When the fracture plane is entered with the 4.5 mm drill bit, blood tinged synovial fluid may exit the hole.

Displaced lateral condylar fracture - screw fixation

The 4.5 mm drill bit is removed, holding the drill guide in place. A 2.5 mm pin is placed through the guide into the glide hole. Maintaining a smooth pin in the hole while the drill guides are changed keeps the surgeon from temporarily “losing” the hole.

Displaced lateral condylar fracture - screw fixation

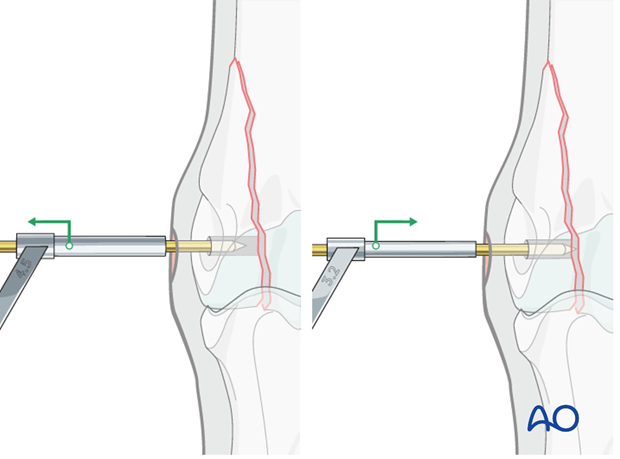

The 4.5 mm drill guide is removed and the 3.2 mm drill guide is slipped over the 2.5 mm pin into the glide hole. The pin is removed.

Displaced lateral condylar fracture - screw fixation

Radiographic confirmation

Ideally, one should check the direction of the glide hole by taking a lateromedial radiographic view with the 3.2 mm drill guide in place.
If the hole in the drill guide is clearly visible and the proximal sesamoid bones are superimposed, the surgeon can be very confident that the screw will be properly directed across the condyle.

Displaced lateral condylar fracture - screw fixation

5. Reduction

Insertion of the arthroscope

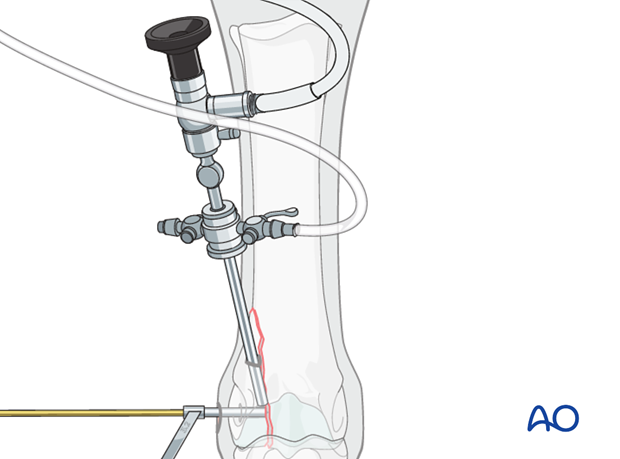

The arthroscope is inserted into the proximal dorsolateral aspect of the joint using routine technique.

When assessing reduction, it is important to look over as much of the length of the fracture line as possible. This is made easier by placing the arthroscope proximally in the dorsal pouch.

The smooth pin can be re-inserted to provide leverage for manipulation of the fragment.

Displaced lateral condylar fracture - screw fixation

Using the 3.2 mm drill guide and pin to help manipulate the lateral fragment, the fracture is accurately reduced under arthroscopic observation. The metacarpo/metatarsophalangeal joint usually needs to be manipulated simultaneously to obtain perfect reduction.
Both flexion and extension as well as varus and valgus forces may be necessary.

Displaced lateral condylar fracture - screw fixation

Maintaining reduction

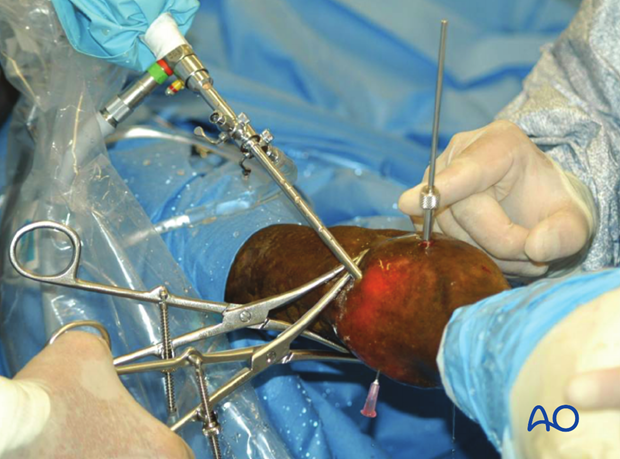

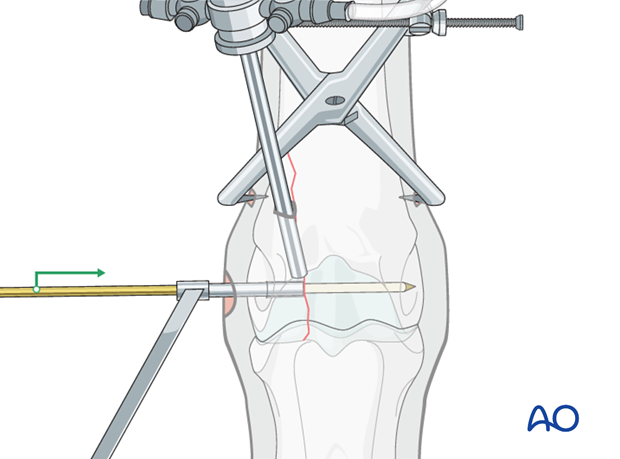

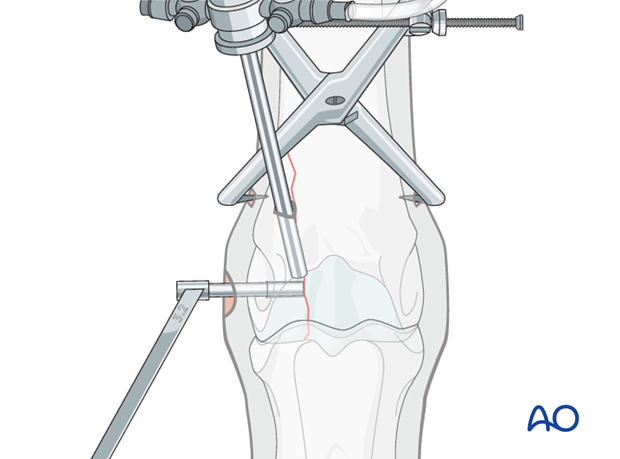

When perfect reduction is achieved, the large pointed reduction forceps are applied to maintain position. Usually, it is easiest to place the points of the instrument at about the level of the physeal scar. The tips simply puncture the skin. The forceps should be positioned such that the arthroscope can still be manipulated.

Displaced lateral condylar fracture - screw fixation

6. Screw fixation using lag technique

Preparation of the thread hole

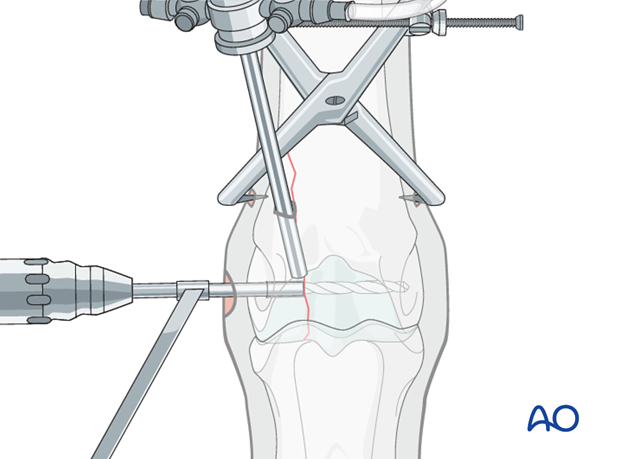

After reduction is achieved, the 3.2 mm drill bit is used to prepare the thread hole across the remainder of the bone. The drill bit should be removed and cleaned frequently because this is very dense bone.
Extensive irrigation during drilling is always required.
Caution should be used when approaching the far cortex to minimize damage and debris as the drill bit exits the bone.

Note: It is essential to drill across the entire condyle and not to leave a blind hole.

Displaced lateral condylar fracture - screw fixation

The 3.2 mm bit is removed and the 2.5 mm pin re-inserted through the drill sleeve. This pin is valuable to minimize any difficulties finding the screw hole through the stab incision.

Displaced lateral condylar fracture - screw fixation

No countersink depression is prepared because the screw head comes to lie in the epicondylar fossa. Countersinking may add additional trauma to the collateral ligament.

Note, some surgeons nevertheless prefer to prepare a countersink depression.

Displaced lateral condylar fracture - screw fixation

Tapping the hole

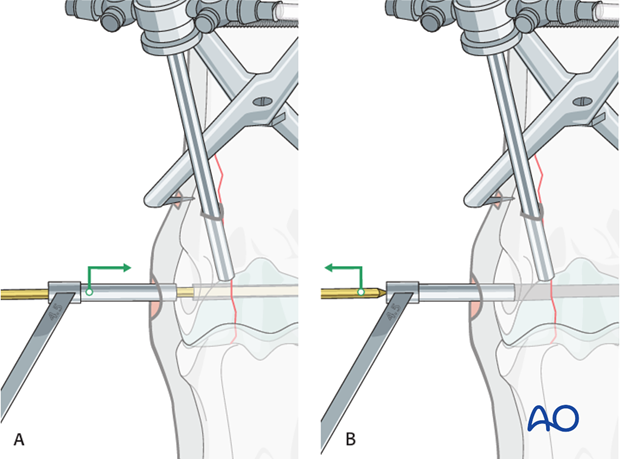

If no countersinking is done, the smooth pin is maintained in the glide hole and thread hole. The 4.5 mm drill guide is placed over the 2.5 mm pin (A). The pin is then removed (B) ...

Displaced lateral condylar fracture - screw fixation

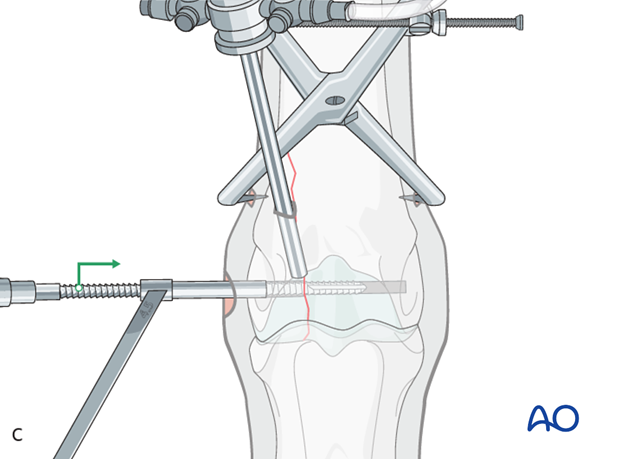

... and the 4.5 mm tap inserted through the guide (C).

Displaced lateral condylar fracture - screw fixation

The hole is tapped routinely, keeping the very dense bone in mind.

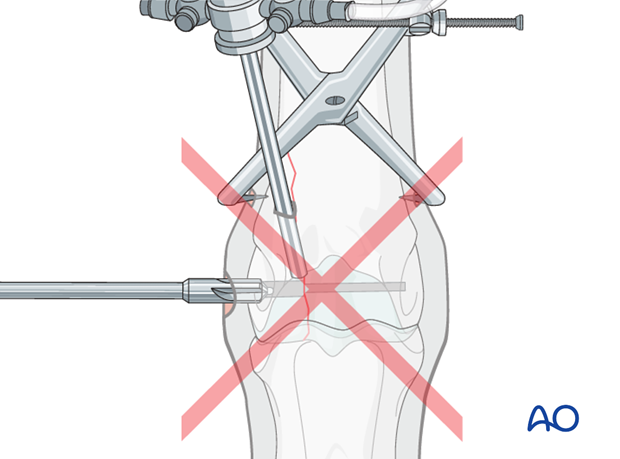

It is critical to tap completely through the far cortex (red circle). The bone is so dense that even a single millimeter of untapped bone may prevent complete screw insertion and compression of the fracture plane.

A long tap is strongly preferred to avoid impinging of the end of the drill on the edge of the drill guide (yellow circle). This could result in stripping of the threads or breaking the tap.

Displaced lateral condylar fracture - screw fixation

Screw insertion

Measurement of the hole is usually not necessary in this location. Most race horses accommodate a 52 mm cortex screw across the distal condyle.

The screw is inserted but not fully tightened. A fluoroscopic view may be taken to estimate if the screw length is correct.

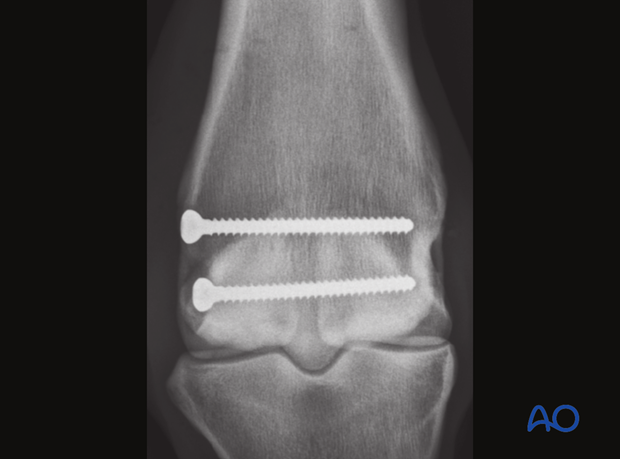

Note, the provided image is a medial condylar fracture demonstrating the principle.

Displaced lateral condylar fracture - screw fixation

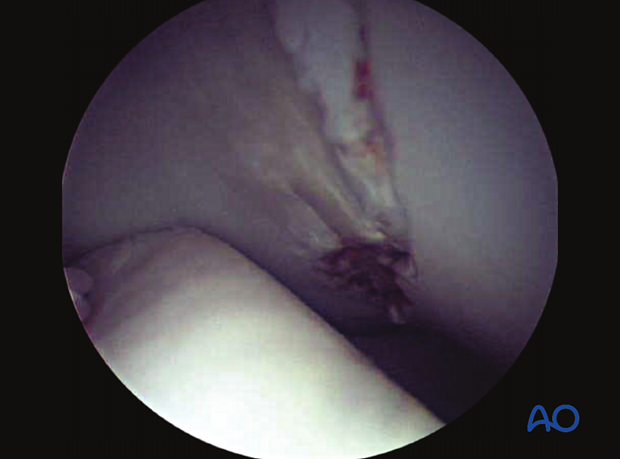

The arthroscope is positioned so that the fracture line can be seen while the screw is tightened. When the screw is tightened, blood/fibrin can usually be seen to be squeezed out of the fracture line, confirming compression by the lag screw.

Displaced lateral condylar fracture - screw fixation

Placement of additional screws

A second screw is placed approximately 2 cm proximal to the first screw using routine lag technique.

Note: In this location countersinking is always used.

Displaced lateral condylar fracture - screw fixation

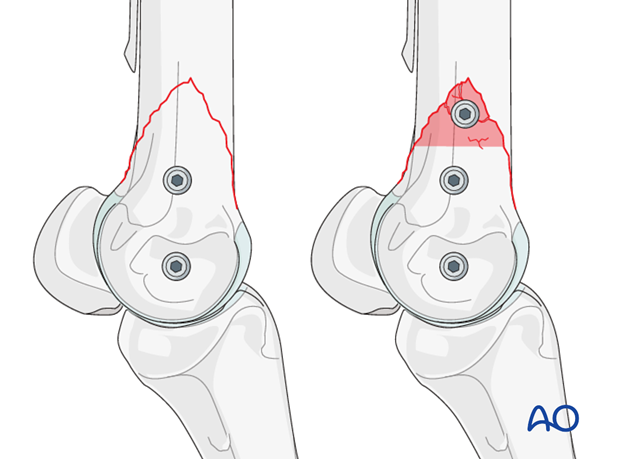

In the great majority of cases, only two screws are necessary. Caution is needed if placing a third screw because the lateral fracture fragment tapers and becomes narrow and thin proximally. The danger is placement of the screw in a fracture plane or splitting of this narrow portion of the fragment during tightening of the screw.

Displaced lateral condylar fracture - screw fixation

Arthroscopic confirmation

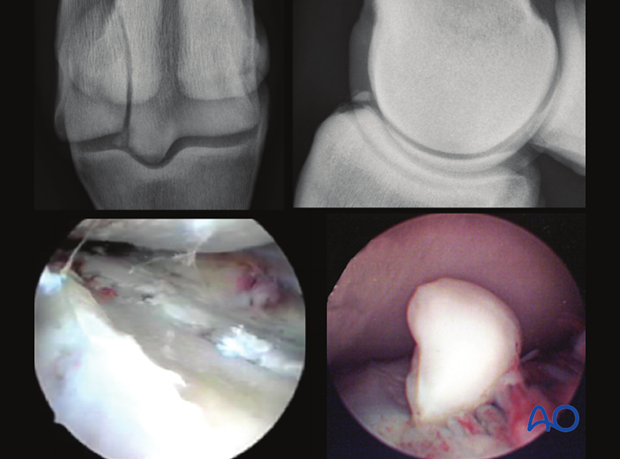

The palmar aspect of the joint should then be examined arthroscopically. Loose fragments along the distal palmar/plantar margin of the joint should be removed. The metacarpo/metatarsophalangeal joint must not be flexed too much or the area of injury on the distal palmar/plantar condyle will not be visible.
Full thickness cartilage defects on the proximal sesamoid bones also can be assessed and treated with microfracture if desired.

Displaced lateral condylar fracture - screw fixation

7. Recovery from anesthesia

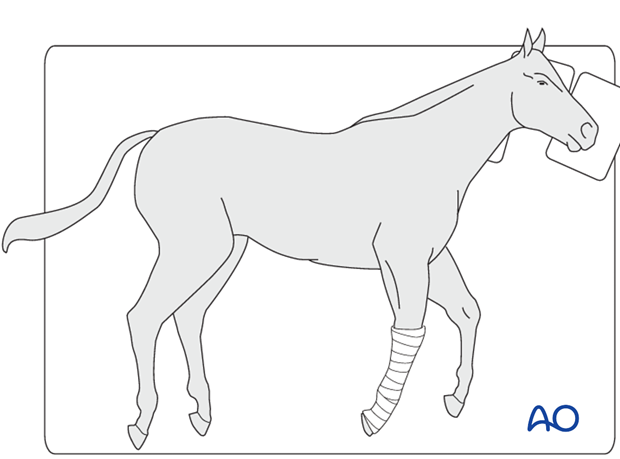

Horses are usually placed in well-padded lower limb bandages for recovery from anesthesia.

Displaced lateral condylar fracture - screw fixation

Recovery of hind limb fractures

Hind-leg fractures should be recovered with more caution. If any special recovery system (pool, sling, deep mat/air mattress etc.) is available it should be employed. If none of these are available a full-limb cast should be applied during recovery. Half-limb casts do not fully protect horses from catastrophic failure through the diaphysis.

Displaced lateral condylar fracture - screw fixation

8. Aftertreatment

Horses are usually placed in stall rest and hand-grazing only for at least 60 days, followed by hand walking or machine walking exercise for an additional 60 days before allowing turnout in a very small paddock. Most horses get about a minimum of 6 months before returning to training.

Intra-articular medications depend on surgeons preference and the degree of articular damage seen during surgery.

screw fixation

Imaging

Follow up radiographs are usually taken in 90 days and again before returning to training.

Implant removal

Screw removal is generally recommended only if the screws extend up into the diaphysis.

screw fixation
