3rd carpal bone: Frontal slab fractures of the radial facet

Frontal fractures of the radial facet of the third carpal bone

Frontal fractures of the radial facet of the third carpal bone can be non-displaced or displaced. Both instances present with lameness and joint effusion. The nature of the fracture is confirmed with radiographs.

definition

Imaging

These fractures are demonstrated with:

  • Lateromedial (LM) views
definition

  • Flexed LM views

definition

  • Dorsolateral-palmaromedial oblique (DL-PmMO) views

definition

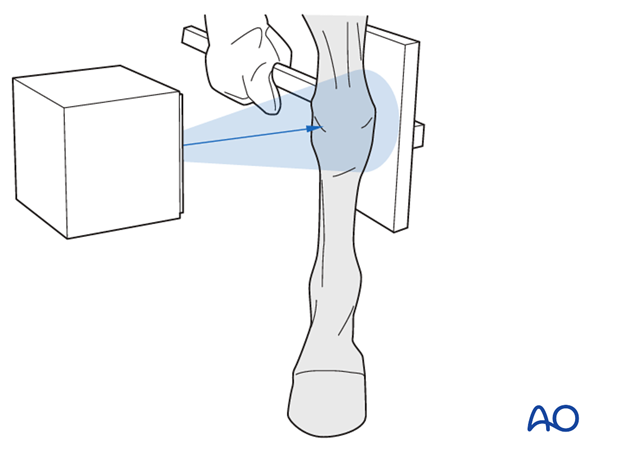

  • Flexed dorsoproximal dorsodistaloblique (flexed D30Pr-DDiO) (skyline) views

definition

This x-ray shows a complete non-displaced fracture in the skyline view.

definition

This x-ray shows a complete non-displaced fracture in the DL-PmMO view.

definition
