Arthroscopic screw fixation

1. Principles

General considerations

Lag screw insertion is routinely done under arthroscopic control.

Prognosis is dependent on accurate articular reduction, and the amount of bone loss in the fracture site. In the majority of these cases surgery is performed to salvage the joint and save the horse’s life. Failure to treat these cases surgically results in joint collapse and eventual laminitis in opposite weight bearing limb.

Reduction of the fracture is achieved by flexion of the carpal region. Sometimes prior removal of bone fragments and debris is necessary to achieve reduction. Frontal fractures of the both facets of the third carpal bone are repaired with two cortex screws of 4.5 mm diameter. Very occasionally three screws are deemed necessary.

2. Preparation and approach

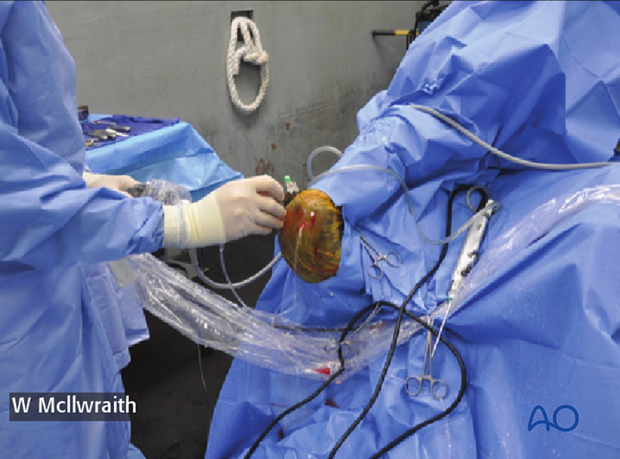

This procedure is performed with the patient placed in either lateral recumbency or dorsal recumbency, through the arthroscopic approach.

arthroscopic screw fixation

3. Lavage and debridement

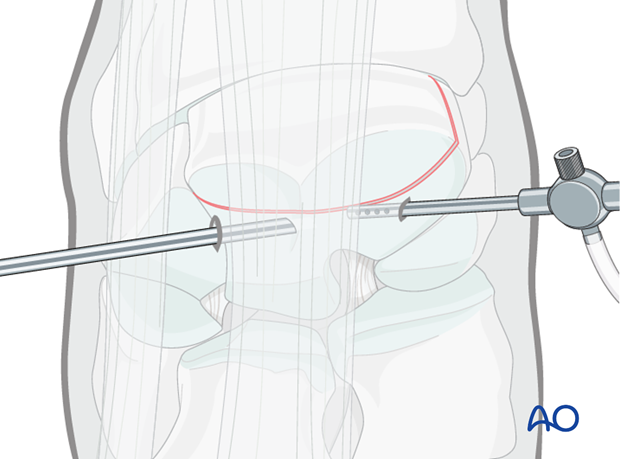

In acute fractures there is frequently marked hemarthrosis and lavage will be necessary to permit visibility. This is performed by placing an egress cannula through the medial instrument portal.

arthroscopic screw fixation

Arthroscopic evaluation

The dorsal compartment of the middle carpal joint should then be evaluated completely and any additional lesions noted. These fractures usually have significant displacement with a large fracture gap seen during arthroscopy.

arthroscopic screw fixation


Any loose cartilage and bone debris is debrided.

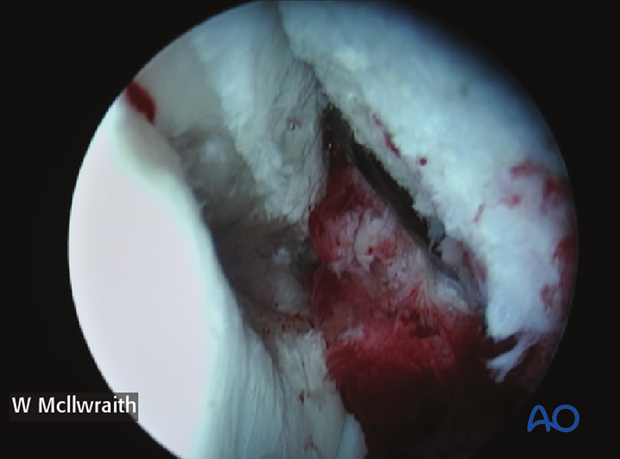

This picture shows the defect after debridement and reduction by flexion.

arthroscopic screw fixation

4. Placement of hypodermic needles

Insertion of needles

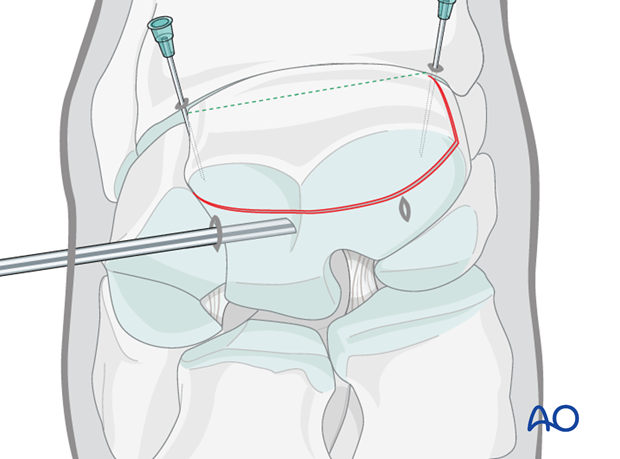

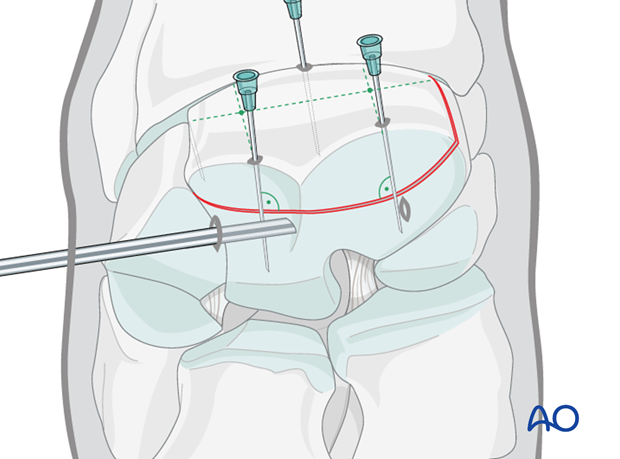

The proximal medial and lateral margins of the fracture are defined by arthroscopically guided percutaneous insertion of 18 gauge hypodermic needles.

arthroscopic screw fixation

It is important that these needles are placed perpendicular to the dorsal surface of the carpus in order to accurately delineate the fracture width.

arthroscopic screw fixation

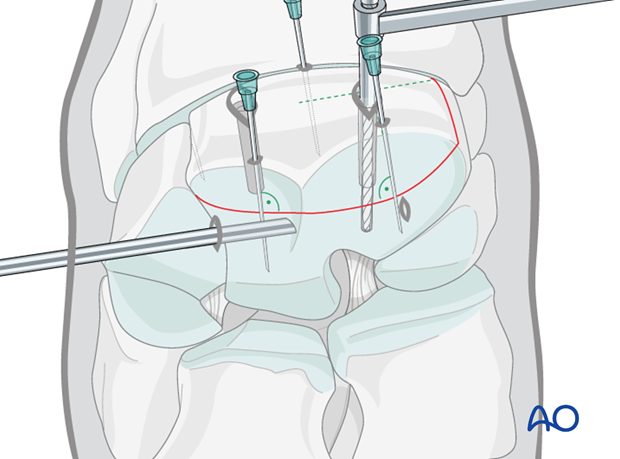

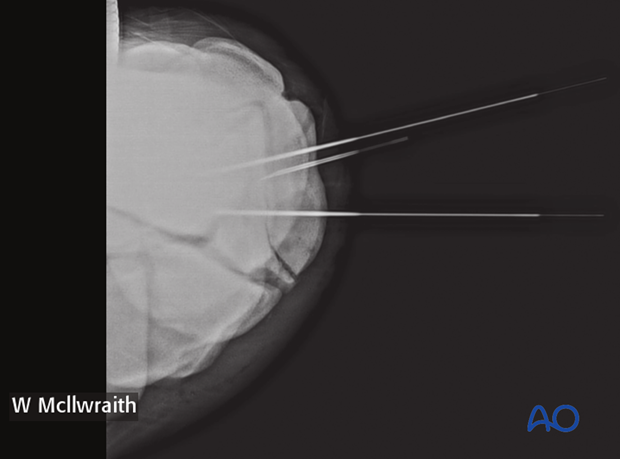

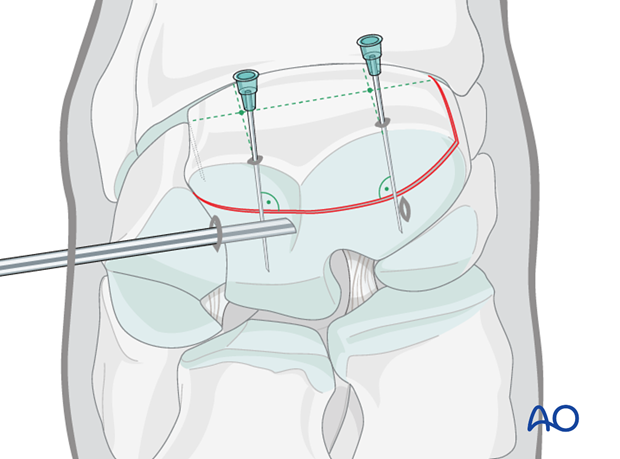

Two 18 gauge spinal needles are then placed over the central portion of the radial and intermediate facets of the third carpal bone. These two needles are close and parallel to the proximal articular surface and directed approximately perpendicular to the fracture line. These needles are critical guides for implant placement. Once the spinal needles have been placed, the lateral and medial hypodermic needles are removed.

arthroscopic screw fixation

A further 18 gauge needle is inserted into the carpometacarpal joint.

arthroscopic screw fixation

A flexed LM and ...

arthroscopic screw fixation

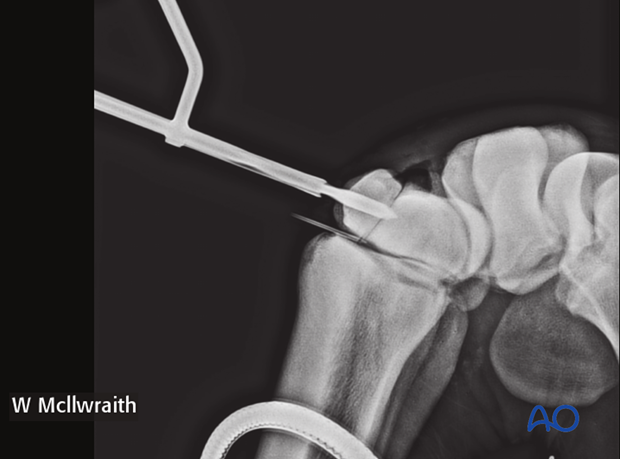

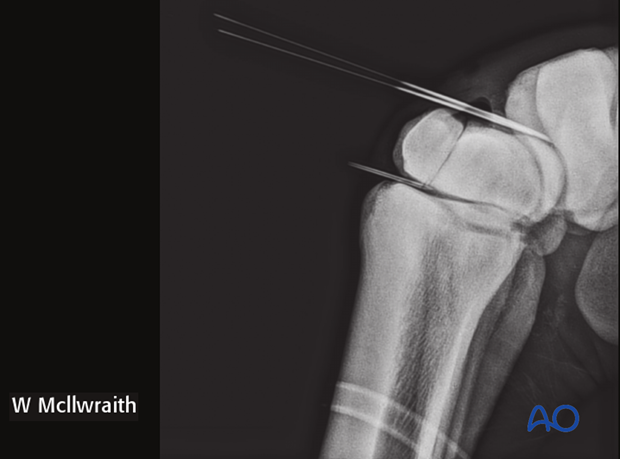

…skyline radiographic views are taken to provide the proximal-distal location of the lag screw.

arthroscopic screw fixation

5. Screw fixation

Stab incision

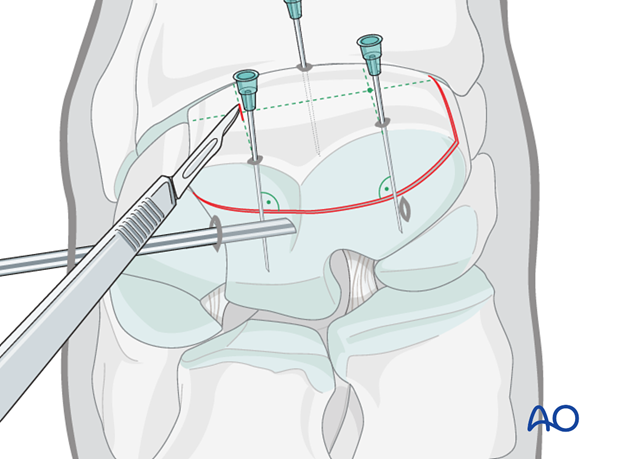

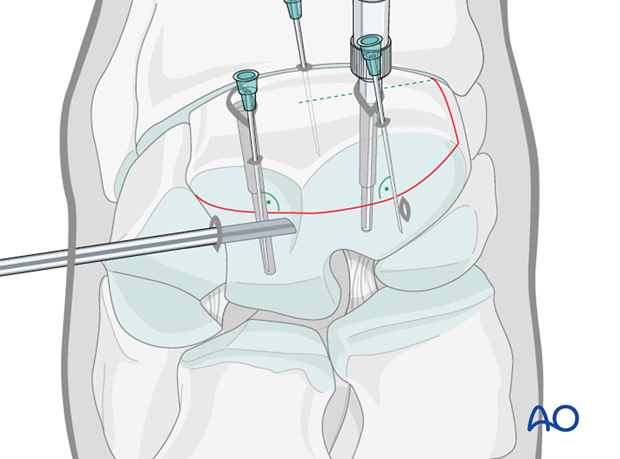

Based on the radiographs two stab incisions are placed over the dorsal aspect of the radial and the intermediate facets respectively. Their positioning is based on radiographs of spinal needle placement.

arthroscopic screw fixation

Preparing the glide holes

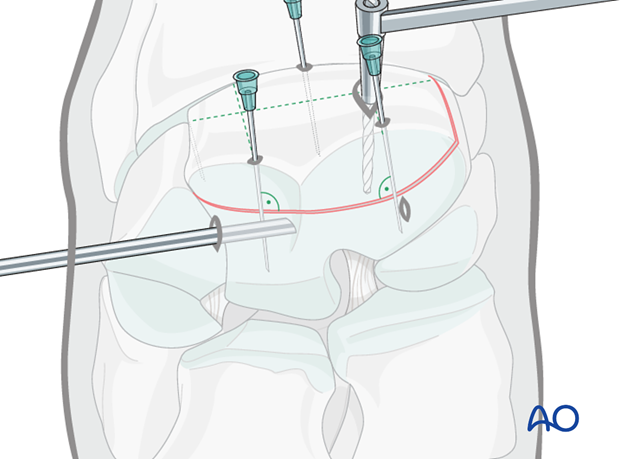

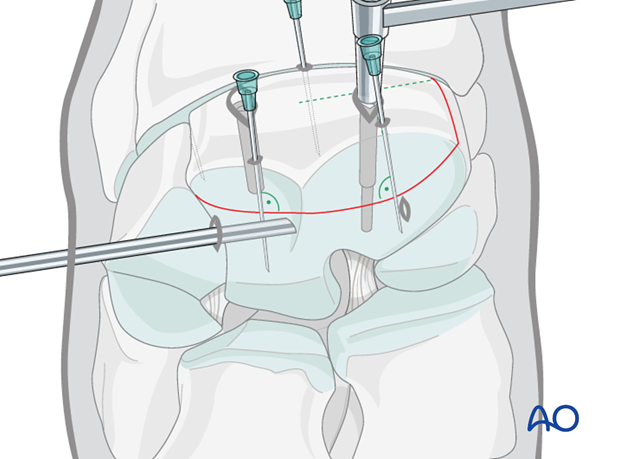

Two 4.5 mm glide holes are drilled through fragment until they enter the fracture line (the distance is predetermined by measurement by the radiographs).

arthroscopic screw fixation

The drill depths can be verified using an intraoperative radiograph.

arthroscopic screw fixation

Drilling the thread hole

The 3.2 mm drill guide is inserted into one glide hole and the 3.2 mm thread hole is drilled through the remaining third carpal bone. The hole is drilled through the entire parent third carpal bone so that maximal screw length can be used.

arthroscopic screw fixation


The first hole is countersunk at the dorsal surface and debris is flushed.

arthroscopic screw fixation

Determining screw length

Correct screw lengths are determined using a depth gauge. The screws used are generally 36 mm long.

arthroscopic screw fixation

Tapping the hole

The first hole is tapped with a 4.5 mm tap protected by the corresponding drill guide. This should be done by hand.

arthroscopic screw fixation

Screw insertion

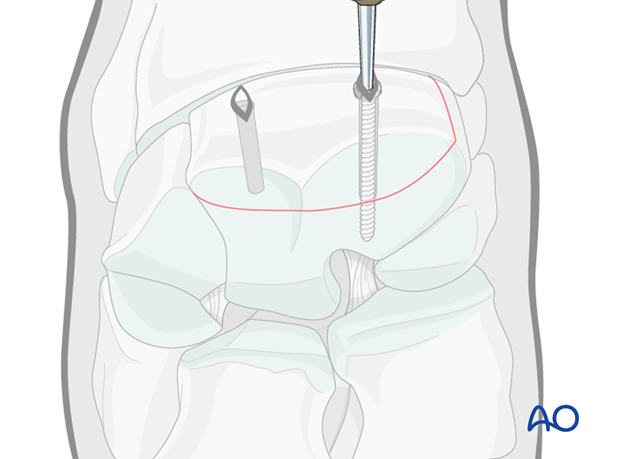

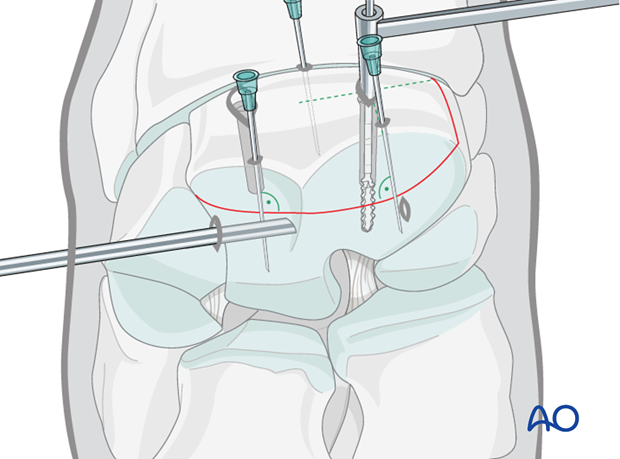

The first 4.5 mm cortex screw of appropriate length is inserted and tightened under arthroscopic visualization.

arthroscopic screw fixation

Insertion of the second screw

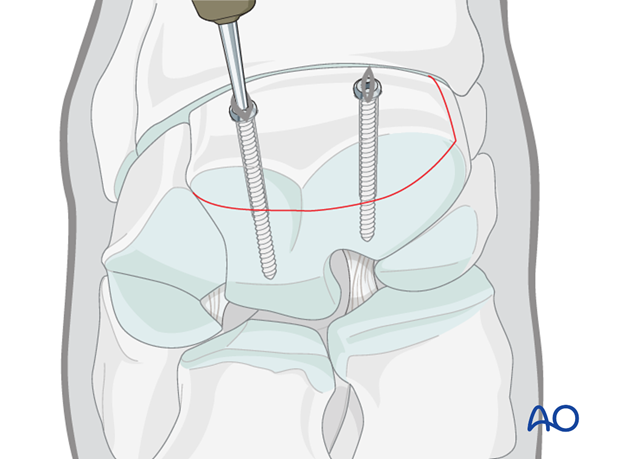

Preparation of the thread hole, countersinking, determining the depth of the hole and tapping of the thread hole are subsequently performed, followed by inserting and tightening of the second screw. After the screws are tightened remove any debris or elevated cartilage at the fracture line.

Pearl: Use two fingers and thumb when doing final tightening, thereby avoiding excessive torque and potential breaking of screw head. Intraoperative radiographs are taken to confirm screw length and correct positioning.

arthroscopic screw fixation

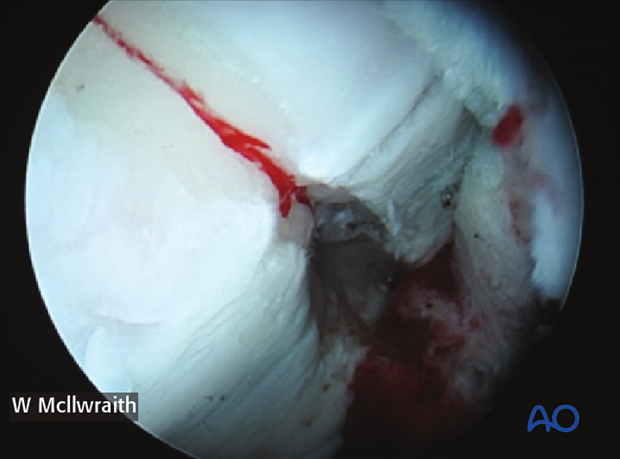

The reduction of the fracture is observed arthroscopically and the joint flushed to remove any debris.

arthroscopic screw fixation

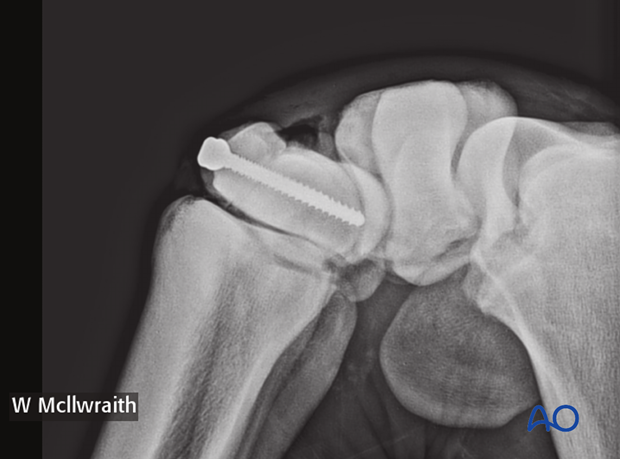

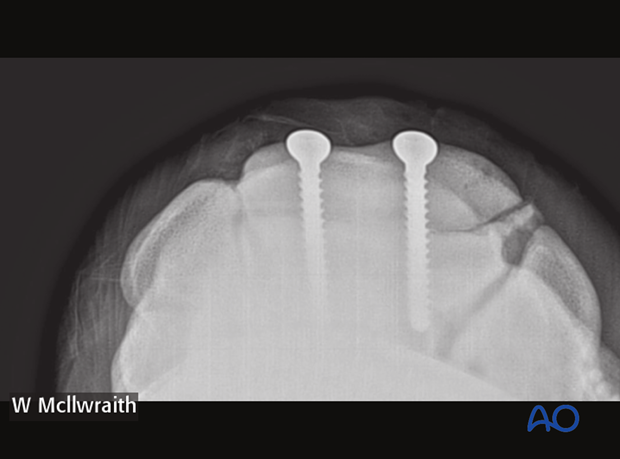

Intraoperative radiographs are taken to confirm screw length and correct positioning.

arthroscopic screw fixation
arthroscopic screw fixation

6. Aftercare

All incisions are sutured (only skin sutures are necessary). A sterile bandage is placed on the carpus. A sleeve cast is applied to the carpus to protect the repair during anaesthetic recovery and the early postoperative period. Perioperative antibiotics for 24 h are indicated and the horse should be placed on antiinflammatory medication for 5 – 7 days. The horse should be confined to a stall (box) but hand walking is commenced at 2 weeks.

The level of activity that the horse can return to will be dictated by soundness 4-6 months after surgery and the degree of post traumatic osteoarthritis that develops.
