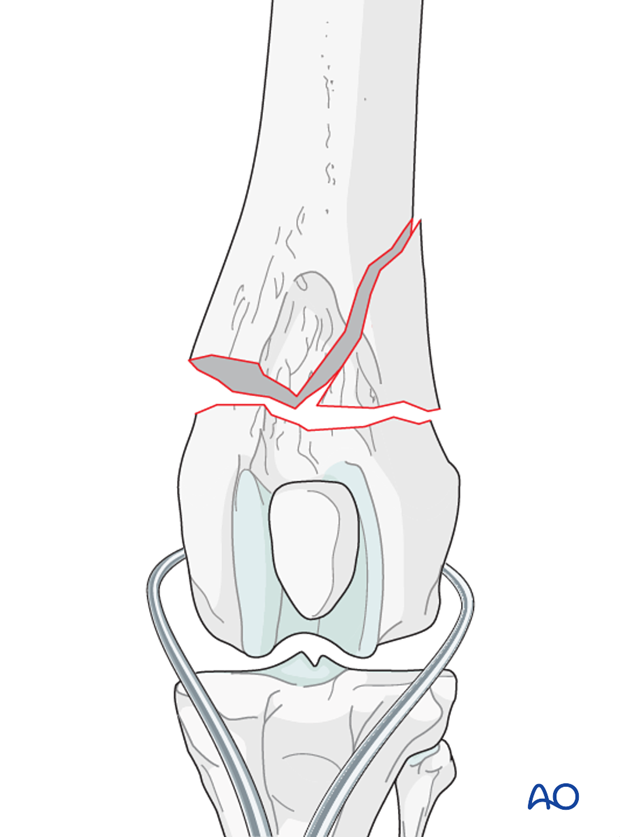

Anatomical reconstruction is desirable. The wedge fragment should be secured with a lag screw through the plate when possible:
The wedge fragment is large enough
Fracture plane orientation allows proper lag screw technique
An independent lag screw may also be used.
Note: If anatomical reconstruction cannot be accomplished, a bridging technique should be used. A detailed description of the "Bridging plate" technique is available in the dedicated section.
Bone plates may be placed on the lateral or medial surface of the femur. The normal curve of the distal femur makes it difficult to achieve optimal screw purchase with standard straight plates. Contouring these plates is challenging.
2. Positioning and approach
This procedure is performed with the patient placed in either of the two positions:

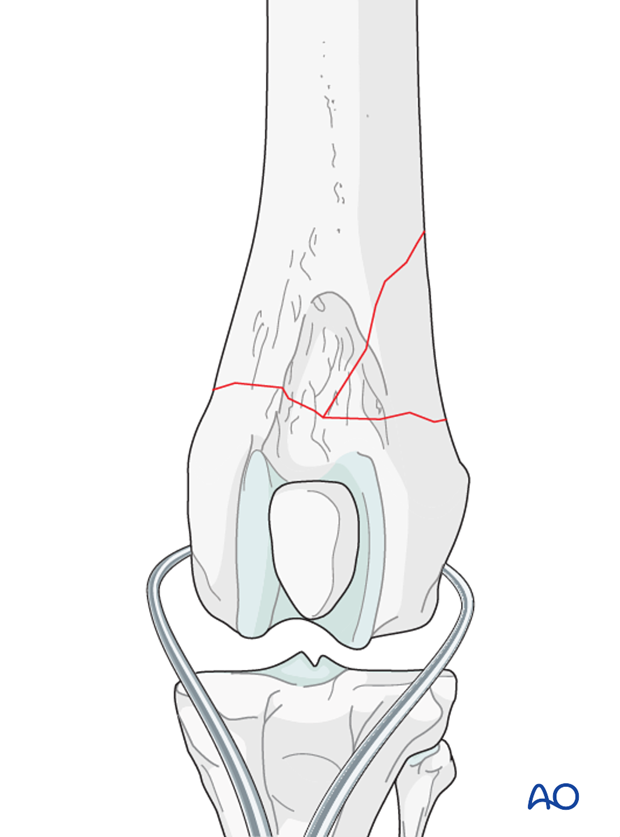

The fracture is reduced with pointed reduction forceps. Anatomic reduction is desired in all cases.

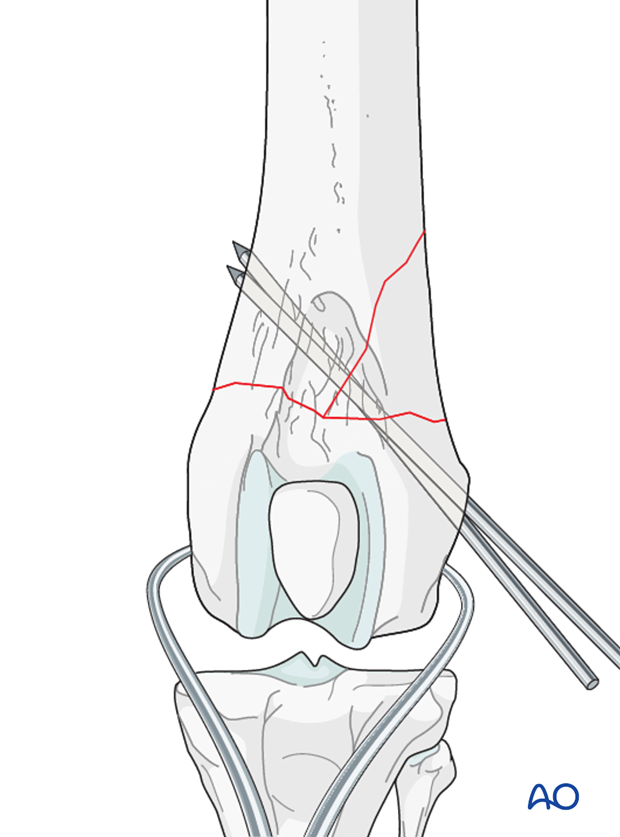

Preliminary stabilization can be achieved with reduction forceps or K-wires.

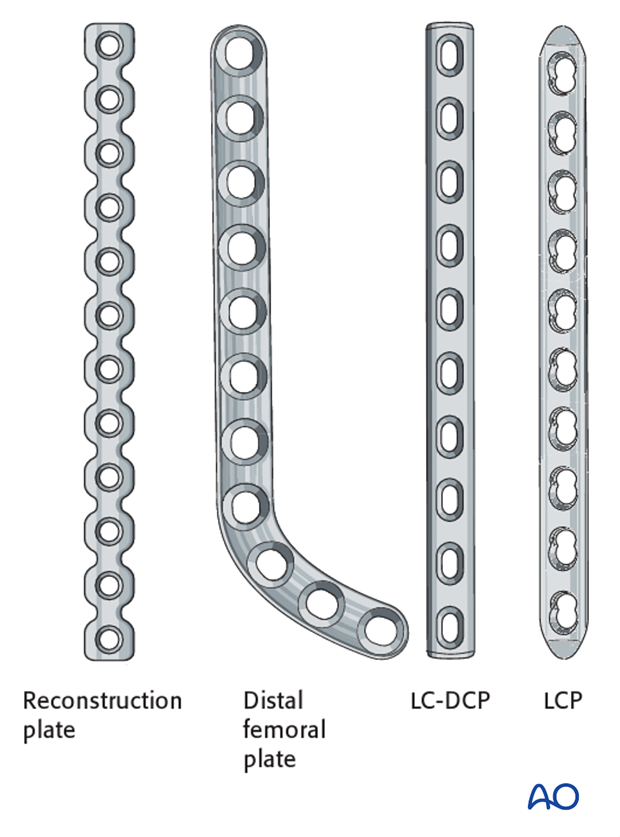

Numerous plate types can be used. Specially designed plates for the distal femur are available.
Ideally the plate should be long enough to place at least three screws in either side of the fracture. In this location the use of only two screws in the distal fragment is acceptable.

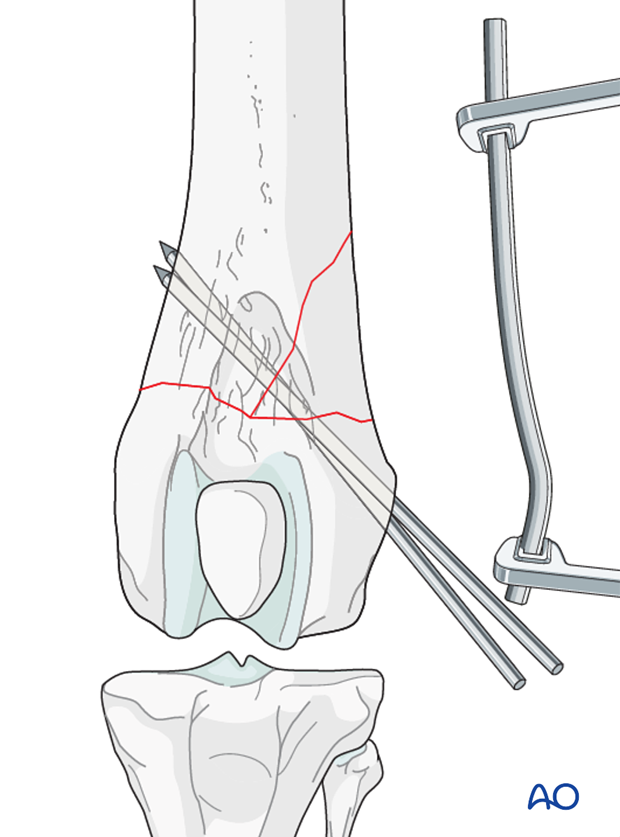

The plate is contoured to the lateral aspect of the distal femur. The plate position and contouring to the bone is checked thoroughly and adjusted, if required.
Note: Care should be taken to position the plate to allow appropriate lag screw technique.
Note: Care should be taken to avoid placement of the plate high on the lateral trochlear ridge, where it can impinge on patellar tracking and result in pain and discomfort.
A detailed description of "Plate preparation" can be found here.

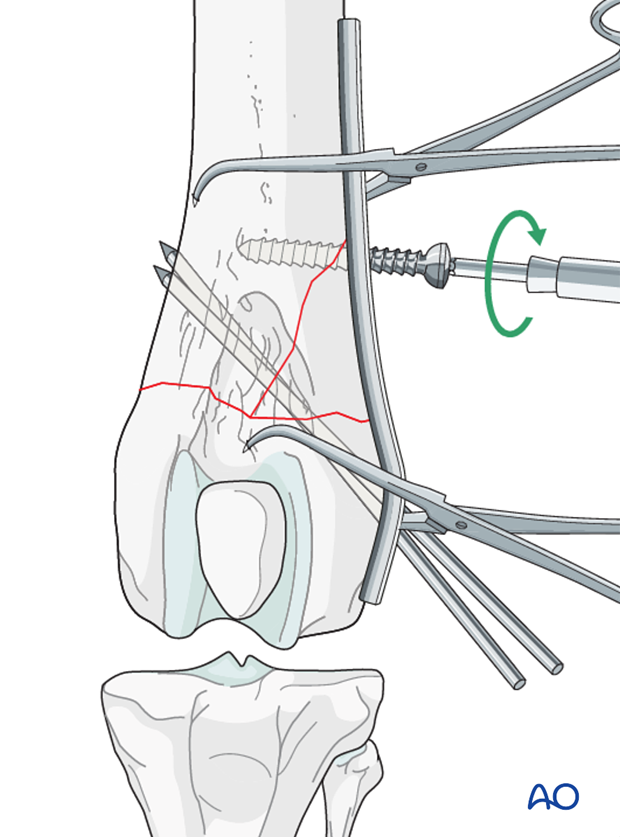

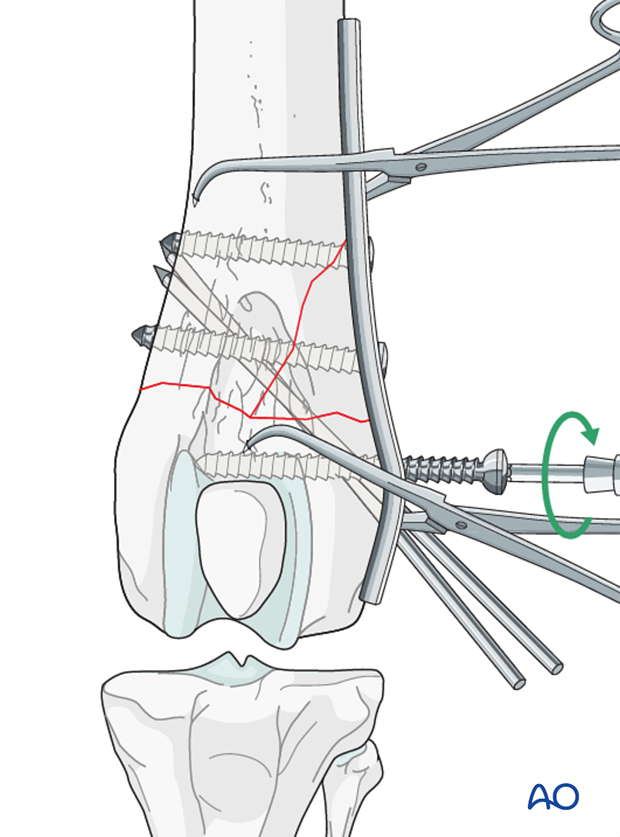

A screw is inserted in the proximal fragment in lag fashion. The screw should be oriented perpendicular to the fracture line.

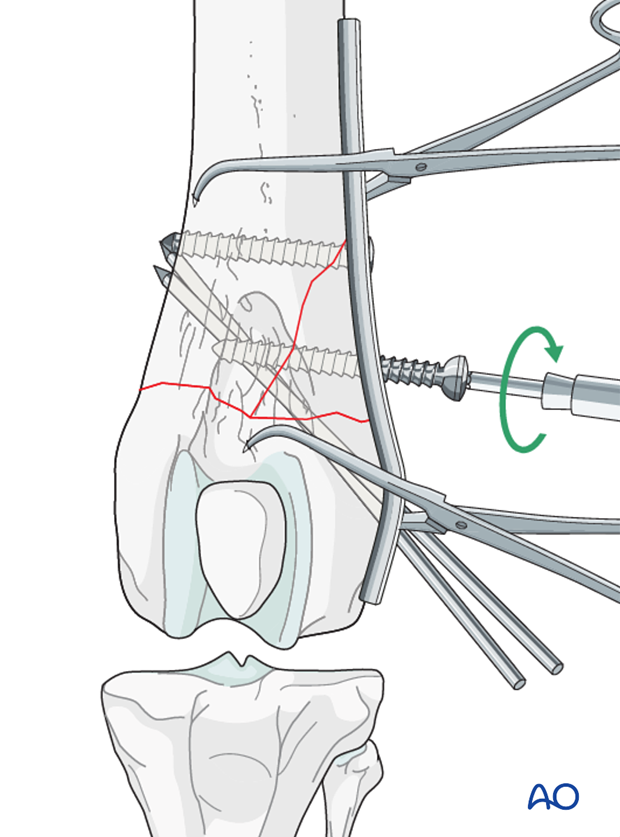

A second screw is inserted through the plate into the wedge fragment and the proximal segment in the neutral position.

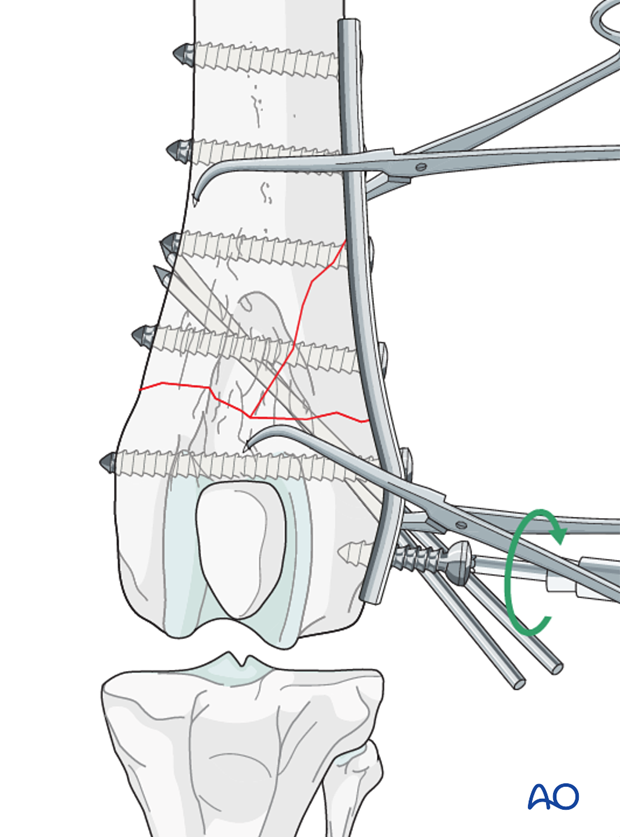

A screw is inserted in the distal fragment.
Note: Care should be taken to avoid penetrating the articular surface with the screws. Where possible at least one screw should traverse both condyles.

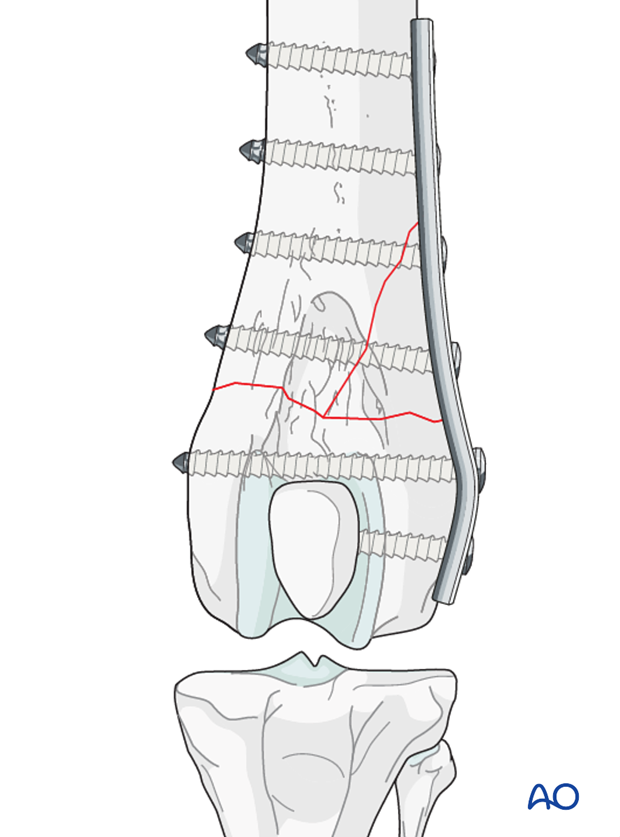

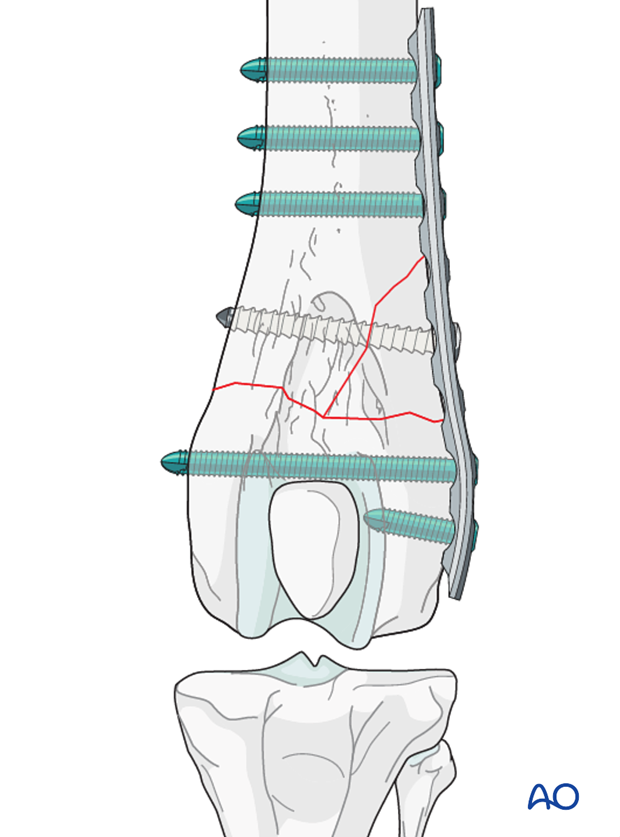

The remaining screw holes are filled. If a screw holes lays over the fracture plane it should be left open.
Fixation with a locking plate
If a locking plate is used, only 2-3 locking bicortical screws are needed per main fragment. One advantage of using a locking plate is that precise contouring is not necessary. Great care must be taken when contouring the distal part of the locking plate to avoid directing screws into the joint.
Note: If a combination of cortex and locking screws is used, the plate must be anatomically contoured at the sites of non-locking screw insertion. The non-locking screws must be inserted and tightened before any locking screws are placed.
Validation of fixation
Postoperative radiographs should be taken to assess the repair.
Activity restriction and controlled walking is indicated until evidence of bone healing is detected by radiographic examinations.
Phase 1: 1-3 day after surgery
The aim is to reduce the edema, inflammation and pain using anti-inflammatory and analgesic medications.
Passive range of motion of the hip and stifle joint can be initiated to promote mobility and joint health.
Phase 2: 4-10 days after surgery
The aim is to resolve the hematoma, edema and control pain, and prevent muscle contracture.
Anti-inflammatory and analgesic medications are still needed. Rehabilitation and integrative medical therapies can be used.
Special attention should be given to patients less than 1 year of age with a femoral fracture, as they are at risk for developing quadriceps contracture. Early controlled activity and passive range of motion is strongly recommended to help prevent this complication.
If the patient is not starting to use the limb within few days after surgery, a careful evaluation is recommended.
Phase 3: 10 days-8 weeks after surgery
Rehabilitation therapy is continued.
10-14 days after surgery the sutures are removed.
Radiographic assessment is performed every 4-8 weeks until bone healing is confirmed.
Implants may be removed if there is irritation or infection present, however if they are not causing problems for the patient, there is no need for implant removal.
