Compression plate fixation

Fractures of the diaphysis can be transverse, oblique, spiral, or comminuted. Reduction is achieved by traction and digital manipulation. When the fracture is stable, it can be treated nonoperatively.

If the fracture is irreducible, ORIF is indicated.
Other indications for ORIF are open fractures, or soft-tissue lacerations.

For this procedure the following approaches may be used:

• Midaxial approach to the proximal phalanx
• Dorsal approach to the phalangeal metaphysis (after Pratt)

Reduction can be obtained by traction and flexion of the metacarpophalangeal joint exerted by the surgeon.
Confirm reduction under image intensification.
Often, these fractures are stable after reduction, in which case, nonoperative treatment is indicated.

Direct reduction is necessary when the fracture can not be reduced by traction and flexion, or is unstable.
When indirect reduction is not possible, this is usually due to interposition of parts of the extensor apparatus.
Use two pointed reduction forceps for direct reduction.

Insert a K-wire for provisional fixation.

At this stage, after provisional fixation, it is advisable to check the alignment and rotational correction by moving the finger through a range of motion.
Rotational alignment can only be judged with the fingers in a degree of flexion, and never in full extension. Malrotation may manifest itself by overlap of the flexed finger over its neighbor. Subtle rotational malalignments can often be judged by tilting of the leading edge of the fingernail, when the fingers are viewed end-on.
If the patient is conscious and the regional anesthesia still allows active movement, the patient can be asked to extend and flex the finger.
Any malrotation is corrected by direct manipulation and later fixed.

Under general anesthesia, the tenodesis effect is used, the surgeon fully flexing the wrist to produce extension of the fingers, and fully extending the wrist to cause flexion of the fingers.

Alternatively, the surgeon can exert pressure against the muscle bellies of the proximal forearm to cause passive flexion of the fingers.

If the plate is perfectly contoured to follow the geometry of the concavity of the phalanx, tightening the screws will result in a gap in the opposite cortex.
The solution to this is slightly to overbend the plate so that when axial compression is exerted by the plate, the compression occurs evenly over the whole fracture surface.

Select a plate with at least 5 holes, and center it over the fracture.
Ensure that the plate is centered on the long axis of the diaphysis in the lateral view.

If the plate is not properly aligned in the lateral view, the screws may not cross the medullary canal and may not have sufficient purchase. Secondary fractures may result.

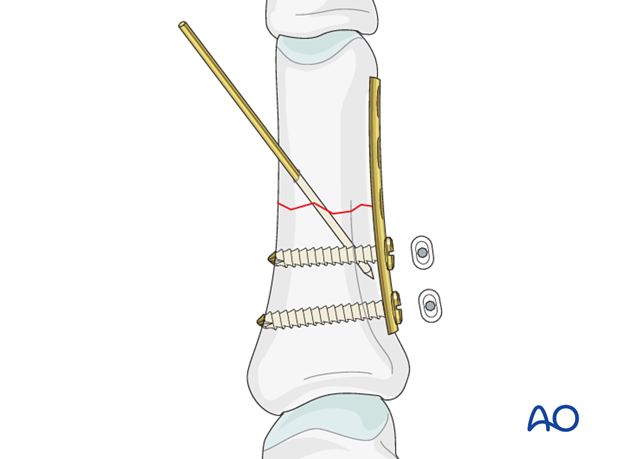

Using a drill guide, carefully drill a first hole with a 1.1 mm drill bit.

Use a depth gauge to determine screw length.

Insert the first screw in a neutral position. Ensure that it engages the far cortex. Failure accurately to measure the required screw length risks failure to engage the far cortex properly, weakens the fixation, and incurs the risk of implant failure.

Insert a second screw in neutral position on the same side of the fracture after the same fashion as above.

Drill eccentrically for the third screw, through the proximal hole on the other side of the fracture. Measure for screw length, and insert a screw.
Tightening this screw will compress the fracture axially.

Complete the fixation with the insertion of a neutral fourth screw, after the fashion of the first two screws.

Protect the digit with buddy strapping to the adjacent finger, to neutralize lateral forces on the finger.

The patient can begin active motion (flexion and extension) immediately after surgery.

See patient after 5 days and 10 days of surgery.

The implants may need to be removed in cases of soft-tissue irritation.

In case of joint stiffness, or tendon adhesion’s restricting finger movement, tenolysis, or arthrolysis become necessary. In these circumstances, take the opportunity to remove the implants.
